About the product

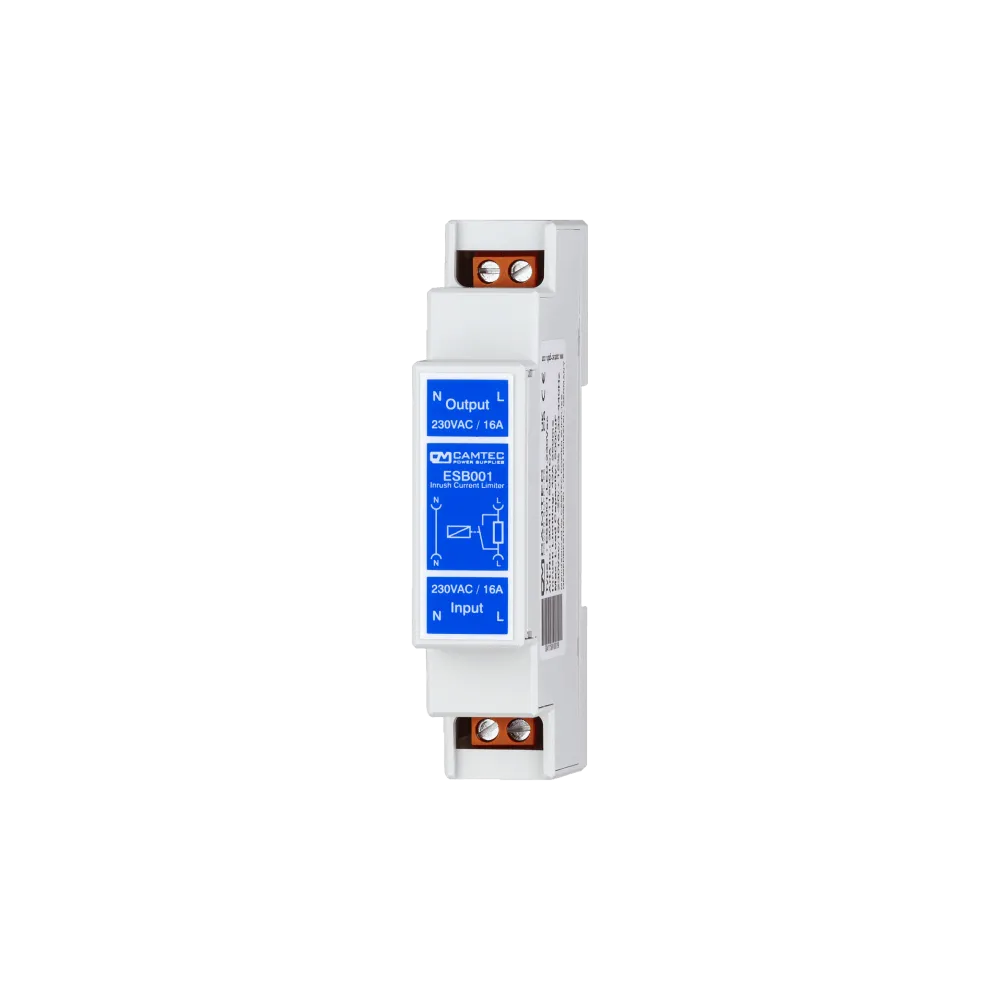

The ESB001.24.230VAC is suitable for the protection of contact fires on load relays or the protection of multiplex MUX channels from harmful inrush currents. The ESB001 complies with the demanding industrial standards EN61010-1, EN61010-2-201 as well as the current IT standard EN62368-1. They are absolutely EMC-neutral for the switchgear and can be operated just like the well-known ESB101 and ESB303 limiters in all frequencies from the 16 2/3Hz railway network to the 400Hz on-board network.
Technical data
- Peak / RMS current limitation
- 184-265Vac, 16A permanent
- DIN TS35mm standard top-hat rail
- Wall mounting (universal housing)
- Spring-loaded terminals 0.5 … 4mm
- Integrated bypass relay
- Capacitive loads 2200uF
- Built-in temperature monitoring
- IP20 UL94V-O enclosure DIN43880 for DINNDE0603 installation box
- Dimensions 17.9(=1HP) x 89.5 x 62.8mm
Product specifications
| AC current | 16 A continuous |
| Inrush current limiting | 24 A |
| Manufacturer | Camtec |
| Maximum capacitive load | 2200 µF |
| Input voltage range (VAC) | 184-264 V |
| AC mains frequency | 16.33-440 Hz |
