About the product

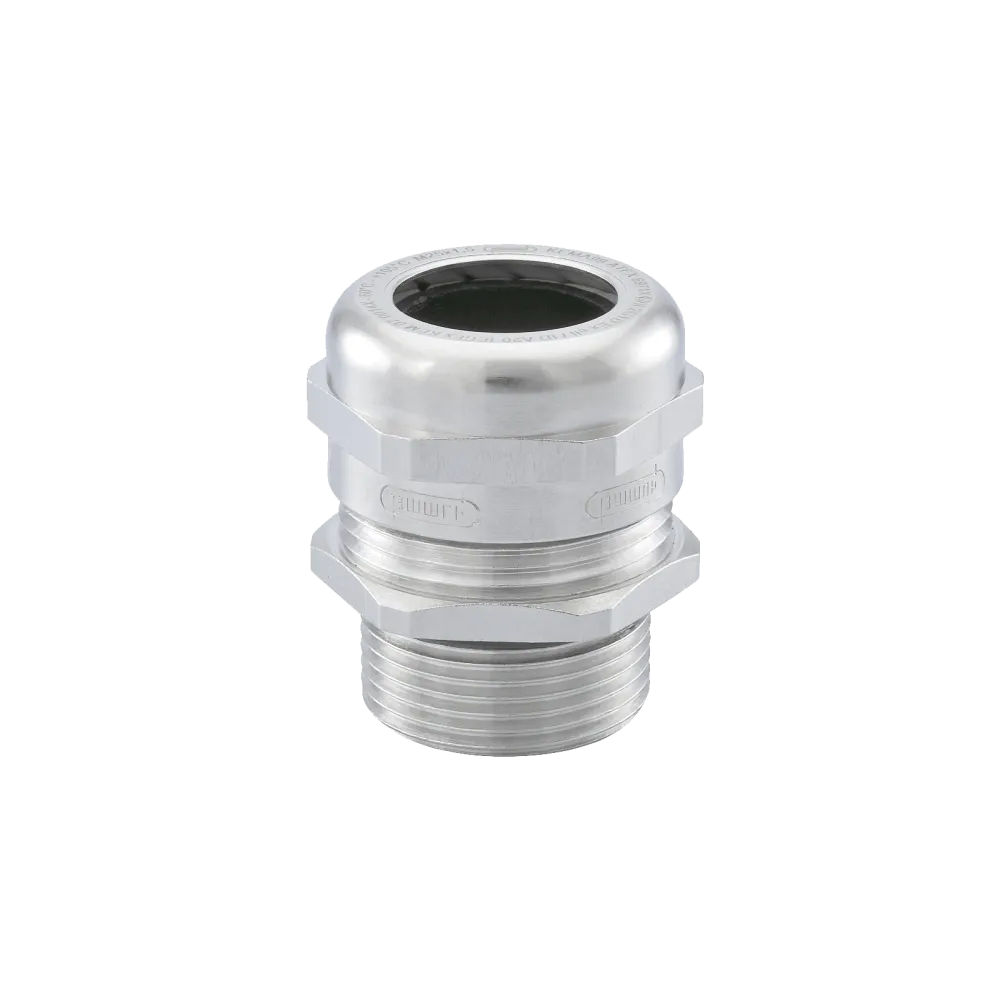

Cable glands HSK-M-Ex M16 x 1.5 (metric-long) Nickel-plated brassEx Cable Glands from HUMMEL for various cable diameters
Reliable explosion protectionNot all forms of explosion protection are equal. There are different scenarios and areas of application which require different types of explosion protection. Ex cable glands from HUMMEL offer protection in a wide range of environments.
Ex e Increased safety:
The cable gland prevents the occurrence of sparks and arcs inside or on external parts of electrical equipment, which do not occur during normal operation.
Ex d Flameproof enclosure:
Parts which can ignite an explosive atmosphere are firmly set in an enclosure. The housing withstands the explosion pressure and prevents transmission to the outside.
Ex ta Protection against dust:
The cable gland prevents dust from entering the housing in accordance with EN IEC 60529.
HUMMEL has many years of experience in handling components for explosion-protection areas. This is why we have a sophisticated range of explosion area products in a range of materials and designs. Further, unpublished products and versions from HUMMEL on request.
Reliable explosion protectionNot all forms of explosion protection are equal. There are different scenarios and areas of application which require different types of explosion protection. Ex cable glands from HUMMEL offer protection in a wide range of environments.
Ex e Increased safety:
The cable gland prevents the occurrence of sparks and arcs inside or on external parts of electrical equipment, which do not occur during normal operation.
Ex d Flameproof enclosure:
Parts which can ignite an explosive atmosphere are firmly set in an enclosure. The housing withstands the explosion pressure and prevents transmission to the outside.
Ex ta Protection against dust:
The cable gland prevents dust from entering the housing in accordance with EN IEC 60529.
HUMMEL has many years of experience in handling components for explosion-protection areas. This is why we have a sophisticated range of explosion area products in a range of materials and designs. Further, unpublished products and versions from HUMMEL on request.
Technical data
- Material: Nickel-plated brass
- Clamping insert: Polyamide V0 according to UL94
- Seal: NBR
- Material O-Ring: NBR
- Protection class: IP 68 – 10 bar / IP 69 K
- Ex-protection level: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
- Type Rating by: 4 / 4X / 6
- Temperature range: -20°C to +95°C / -60°C to +95°C
- Variant: Metric-long
- External thread (AG): M16 x 1,5
- Cable diameter: 2-6 mm / 3-7 mm / 4-8 mm / 5-10 mm
Errors and technical changes reserved
Product specifications
| Manufacturer | Hummel |
| Series | HSK-M-Ex (metric-long) |
