About the product

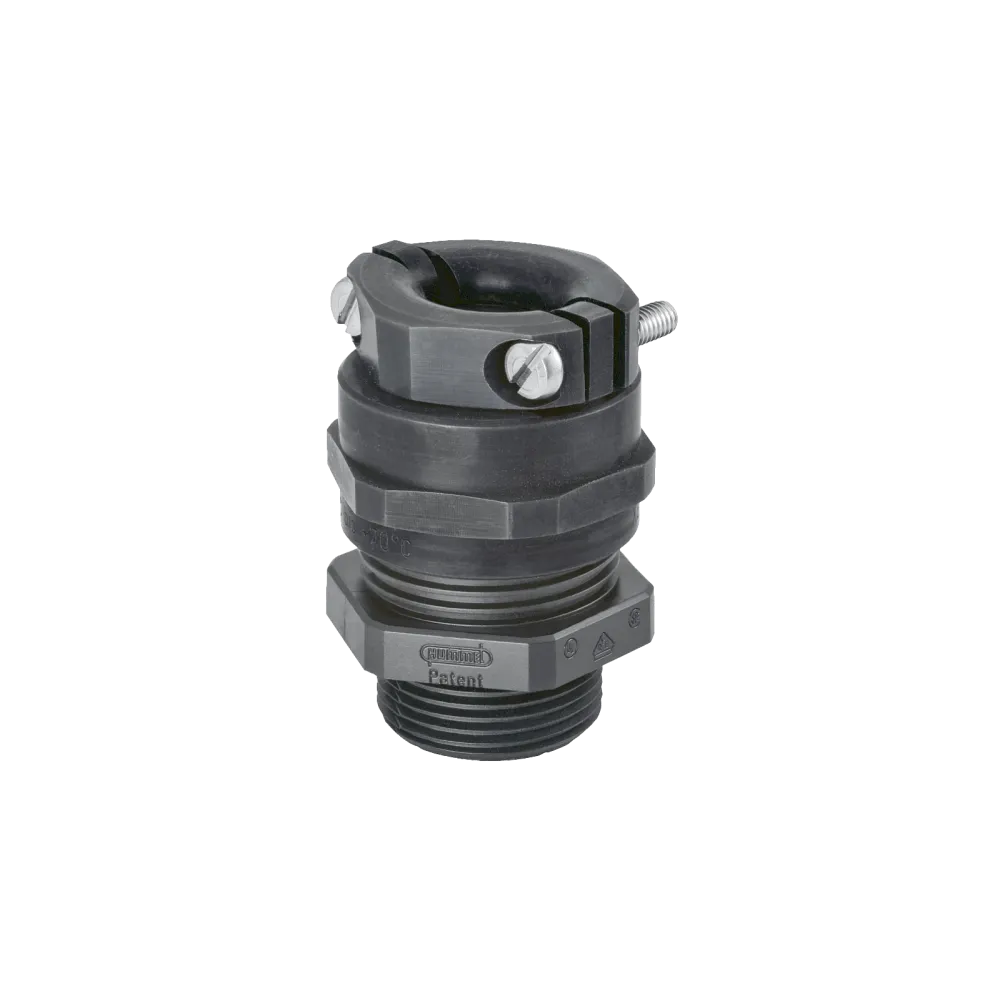

HSK-K-MZ-Ex (metric) M16 x 1.5 – M63 x 1.5 Polyamide
Plastic Cable Glands from HUMMEL for Ex area with different threads and cable diameters.Ex-Cable Glands made of Plastic The cable gland made of specially formulated, fibreglass reinforced polyamide is designed for use on electrical equipment with protection types Ex e and Ex t. It has been developed according to the DIN EN IEC 60079-0, 60079-7 and 60079-31 series of standards and fulfils the
current ATEX and IECEx approvals.
// Free of halogen
// Protection class IP 68 up to 10 bar
// Union nut vibration protection
// Wear-resistant labelling
// For use in zones 1-2 and zones 20-22In each case, HUMMEL offers different clamping areas, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all relevant approvals for international markets and a wide range of sectors. Further, unpublished products and versions from HUMMEL on request.
Plastic Cable Glands from HUMMEL for Ex area with different threads and cable diameters.Ex-Cable Glands made of Plastic The cable gland made of specially formulated, fibreglass reinforced polyamide is designed for use on electrical equipment with protection types Ex e and Ex t. It has been developed according to the DIN EN IEC 60079-0, 60079-7 and 60079-31 series of standards and fulfils the
current ATEX and IECEx approvals.
// Free of halogen
// Protection class IP 68 up to 10 bar
// Union nut vibration protection
// Wear-resistant labelling
// For use in zones 1-2 and zones 20-22In each case, HUMMEL offers different clamping areas, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all relevant approvals for international markets and a wide range of sectors. Further, unpublished products and versions from HUMMEL on request.
Technical data
- Material: Polyamide
- Seal: NBR
- Material O-Ring: NBR
- Protection Class: IP 68 – 10bar / IP 69 K
- Ex-Protection Level: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
- Temperature range: -40°C…+70°C
- Colour: schwarz
- RAL: 9005
Errors and technical modifications reserved
Product specifications
| Manufacturer | Hummel |
| Series | HSK-K-MZ-Ex (metric, PG) |
| Colour | Black |
Data sheets
