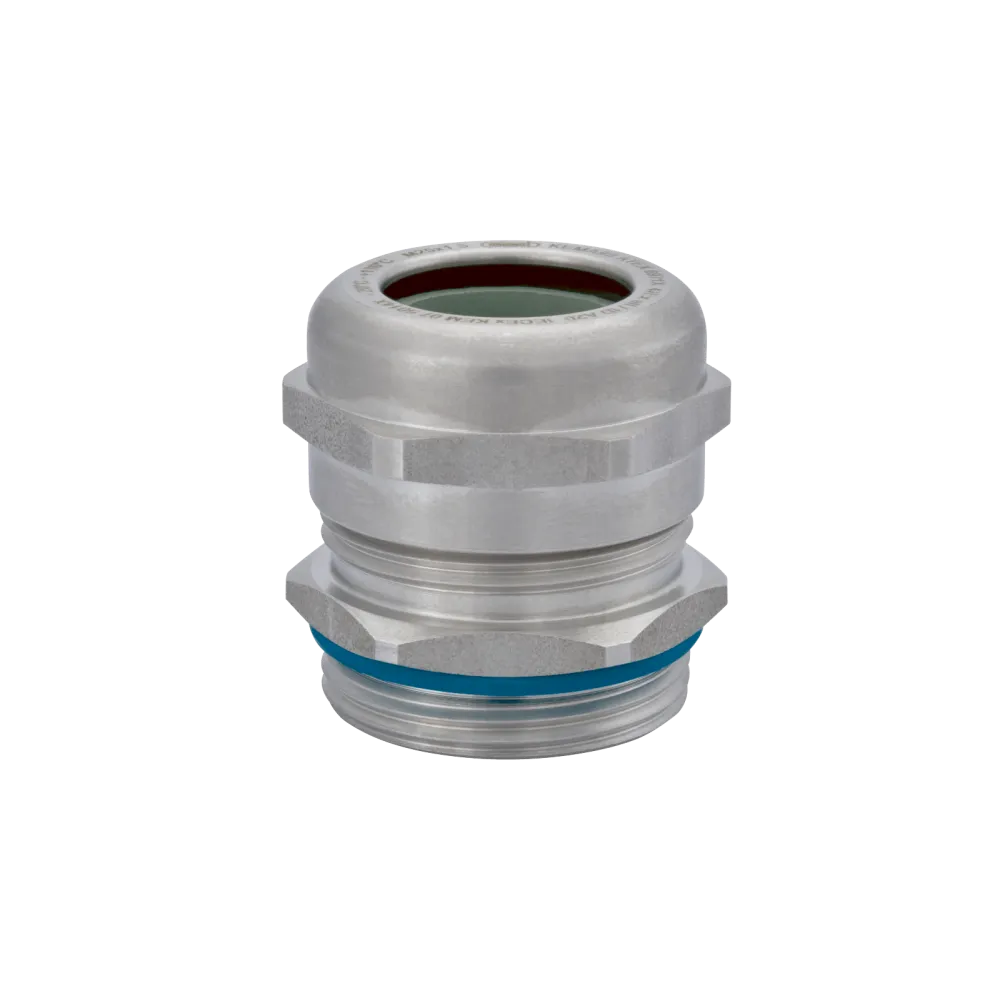

HSK-INOX-PVDF-Ex M16 x 1,5

HSK-INOX-PVDF M16 x 1,5 INOX 1.4305
Cable glands made of stainless steel for chemical and high temperature applications

Ex-Cable Glands
HUMMEL offers a wide range of cable glands for explosion protection areas. This includes cable glands for ignition protection types Ex d and Ex e. For areas where "Increased Safety" (Ex e) is prescribed, HUMMEL offers plastic and metal cable glands, also with multi or fl at cable inserts. Cable glands for ignition type Ex d meet the requirements for "Pressure-tight Encapsulation". This prevents transfer of an explosion in the housing interior to the exterior.

//  HSK-K-Ex-Active, the plastic cable gland for ex-areas
//  Ex e metal cable glands with various inserts
//  Ex d metal cable glands for pressure-tight encapsulation

HUMMEL has many years of experience in handling components for explosion-protection areas. This is why we have a sophisticated range of explosion area products in a range of materials and designs. In each case, HUMMEL offers different clamping areas, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all relevant approvals for international markets and a wide range of sectors. Further, unpublished products and versions from HUMMEL on request.

Technical data

• Material: INOX 1.4305
• Clamping insert: PVDF
• Seal: FKM
• Material O-Ring: FKM
• Protection class: IP 68 – 10 bar / IP 69 K
• Ex-protection level: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
• NEMA Type Rating: 4 / 4X / 6
• Temperature range: -20°C…+130°C
• Version: Metric
• External Thread (AG): M16 x 1.5
• Cable diameter: 3-7 mm / 5-10 mm

Errors and Technical changes reserved
