About the product

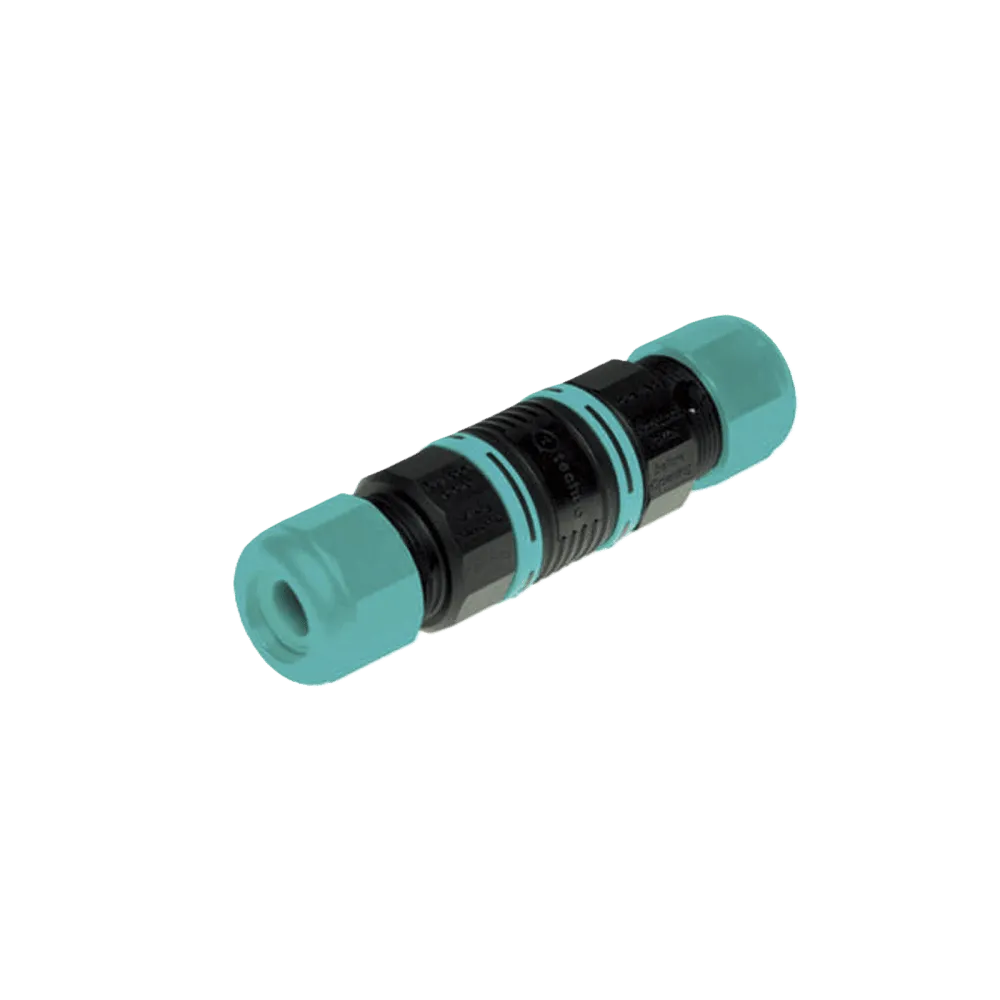

4-Pole Mini Cable Joiner TH391 xDRY® with Screw-Lock from Techno, Italy
The TH391 from Techno’s TEETUBE series is a professional inline cable connector for a wide range of power cables and can be used very universally. Whether in industrial applications for connecting electric motors or pumps, for cabling data and fiber optic connections or for LED applications – wherever electricity flows and the installation needs to be reliably protected from water and dirt.
Version: Cable Joiner
Wire Connection: *Piercing-Screw
Lock-System: Screw
*The piercing solution is ideal for PVC, Neoprene and FEP cables
Further, not published products and versions from Techno on request.
Technical data
No of poles: 4
IP Rating: IP68 xDRY®
Cable diameter: Ø 7.0 – 12.0 mm
Dimension: Ø 23.0 x 89.0 mm
Cross section: 0.5 – 1.5 mm2
Nominal Voltage: 450V AC
Nominal Current: 17.5 A
Temperature: T 85°C
Manufacturer: Techno
Errors and Technical changes reserved
Product specifications
| Product | Cable joiner wire-to-wire |
| Manufacturer | Techno |
| Certificates | IEC |
| IP protection | IP68 |
| Connection | Screw terminal |
| Wire section | 0.5-1.5 mm² |
| Cable diameter | 7-12 mm |
| Nominal voltage (V) | 450 V |
| Nominal current | 17.5 A |
| Pole | 4 |
| Temperature range | -40°C to 125°C |
