About the product
An innovative street lighting set responding to the cities' modern issues regarding modularity, luminous forms of harmony, and respecting living environments.
Product advantages
- Mounting from 4 m
- Integrated interior or exterior mounting
- Standard tilt of 3°

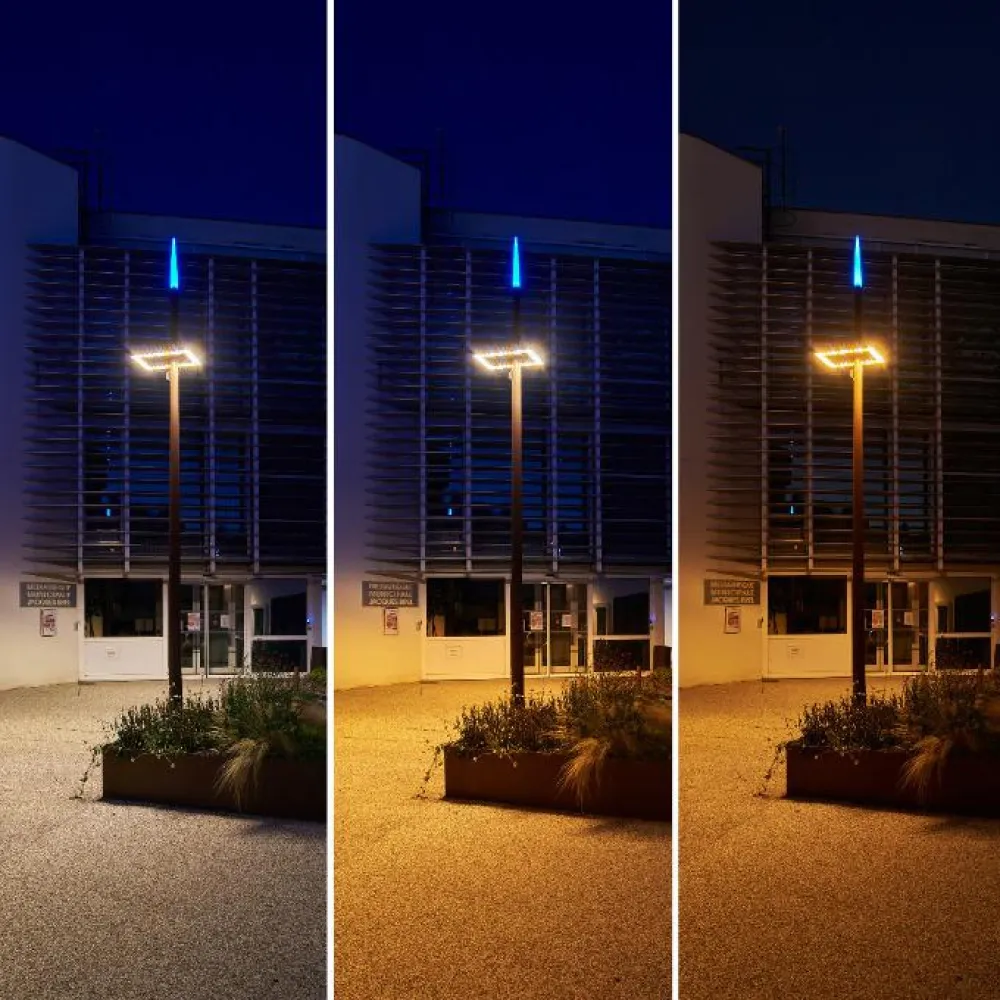

- Color temperature 4000K, 3000K, 2700K, and Amber
- Choice among 3 optics: Ambiance (dispersed), Urban (functional), Black streamline (combined functional)
- Pre-wired luminaire - remote driver
- Heat lacquered powder-coated finish
- Energy savings Smart Lum
- Remote PIR sensor
Dimensions
Side view: Length: 715 mm. Arm width: 236 mm. Height: 79 mm.
Top view: Width: 875 mm. Arm height: 96 mm. Height (without arm): 465 mm.
RANGE OF PERFORMANCE LEVELS
Available in 4000K/3000K
- Power: 39W to 78W
- CadreLed Urban: 39W to 78W
- CadreLed Ambiance: 39W to 78W
- CadreLed Black Infrastructure: 44W to 86W
Lifetime = B10 L80 ≥ 60,000h @Ts = 75°C - @700 mA
Less than 10% of LEDs have an outgoing flux inferior to 80% of the initial flux at 60,000h.
AVAILABLE OPTICS:
- CadreLed Ambiance: diffused lighting
- CadreLed Urban: functional lighting (ASYM 3-2)
- CadreLed Black Infrastructure: mixed functional lighting (ASYM 3-2)
MATERIALS - SURFACE TREATMENT
- Body and sleeve: die-cast aluminum
- Bowl: UV-treated PC
- Heat lacquered polyester powder coating at 220°C
- RAL colors or structured paint on request
- Optional treatment specifically for coast/shoreline
INSTALLATION - MAINTENANCE
- Standard tilt of the luminaire at 3°
- Pre-cabled luminaire. Remote equipment
- Side mounting with 64 mm spacing for M10 screws
