Feeze L

The successful equation of a universal and easy-to-operate luminaire.

Product Advantages

• Installation from 4m
• Reversible top/side fixation
• Adjustable luminaire tilt in top and side mounting
• Top tilt from 0° to 15°
• Side mounting tilt from 0° to +/-15°
• Color temperatures in 2200K - 2700K - 3000K - 4000K and Amber
• Choices of 5 optics, pedestrian in addition
• Baked polyester powder coating
• Pre-cabled luminaire
• Adapter sleeve for Ø49 and Ø42 mm bracket arm
• Smart Lum options for energy saving
• Remote PIR sensor
• Zhaga standard LED module
• Zhaga connector optional (position above the luminaire)

Dimensions

Front view of the lamp:

• Length: 99 mm
• Width: 320 mm



Side view:

• Height with mount: 125 mm
• Length of the lamp with mount: 794 mm
• Length of the lamp without mount: 661 mm

RANGE

• Luminaire power range: from 19W to 158W.
• Outgoing luminaire flux in 3000K: from 2125 lm to 22068 lm.
• Color temperatures: 2200K - 2700K - 3000K - 4000K.
• Lifespan L80 @350mA @tq=25°C ≥ 120,000h.
• Less than 50% of the LEDs have an outgoing flux inferior to 80% of the initial flux at 120,000h.
• Thermal management by sensor.
• Zhaga standard LED module.

3 STANDARD OPTICS

• ASYM 2: Narrow street lighting
• ASYM 3: Road lighting
• ASYM 4: Parking lot lighting
• Other distributions available upon request.

MATERIALS - SURFACE TREATMENT

• Body: die-cast aluminum.
• Optics: flat tempered glass.
• Choice of RAL colors.
• Baked (220°C) polyester powder coating.
• Optional painting treatment specifically for coast/shoreline.

MOUNTING - CABLING

• Reversible top/side fixation.

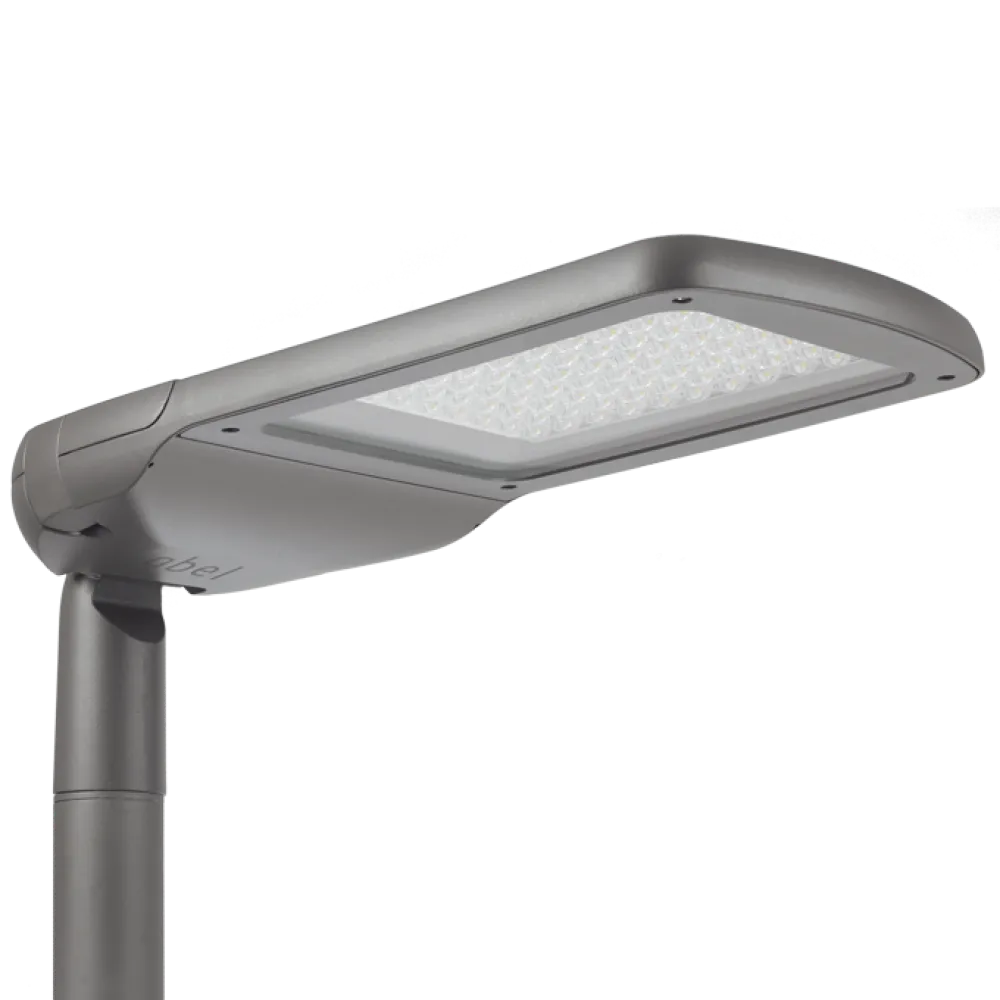

• Top mounting on mast Ø60-62 mm, tilt 0° to 15°.
• Side mounting on tubular bracket Ø60-62 mm, 90 mm length.
• Negative tilt 0° to -15° relative to the bracket.
• Adapter sleeves for Ø42 and Ø49 bracket arms optional.

RESISTANCE TO OVERVOLTAGE

• Category IV luminaire, holding to a shock wave of 6kV between phase-neutral and earth.
• Protection against lightning 10kV-5kA between phase-neutral and earth to be provided at the base of the pole.

OPTION

• Pre-cabled luminaire 10m useful (flexible cable 2x1.5mm²).
• For communicating systems, pre-cabling with a pair dedicated to communication (flexible cable 5Gx1.5mm²).
