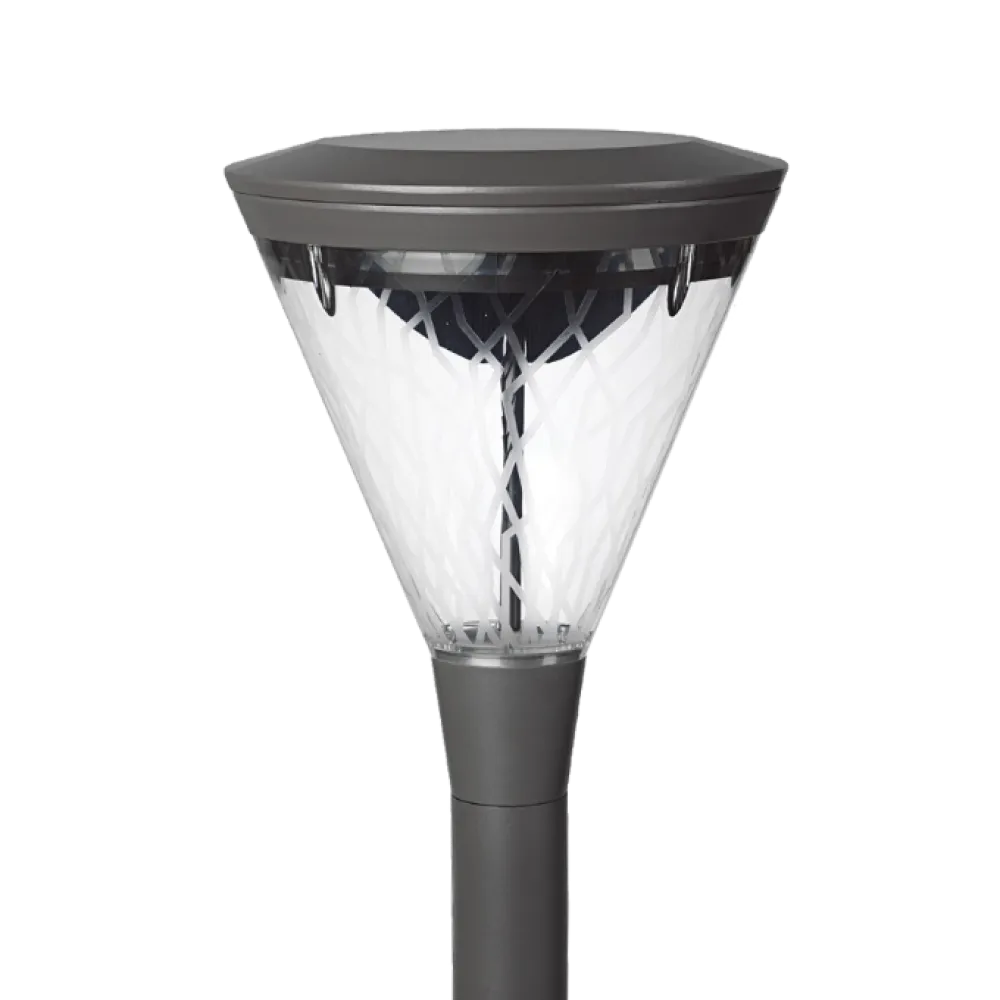

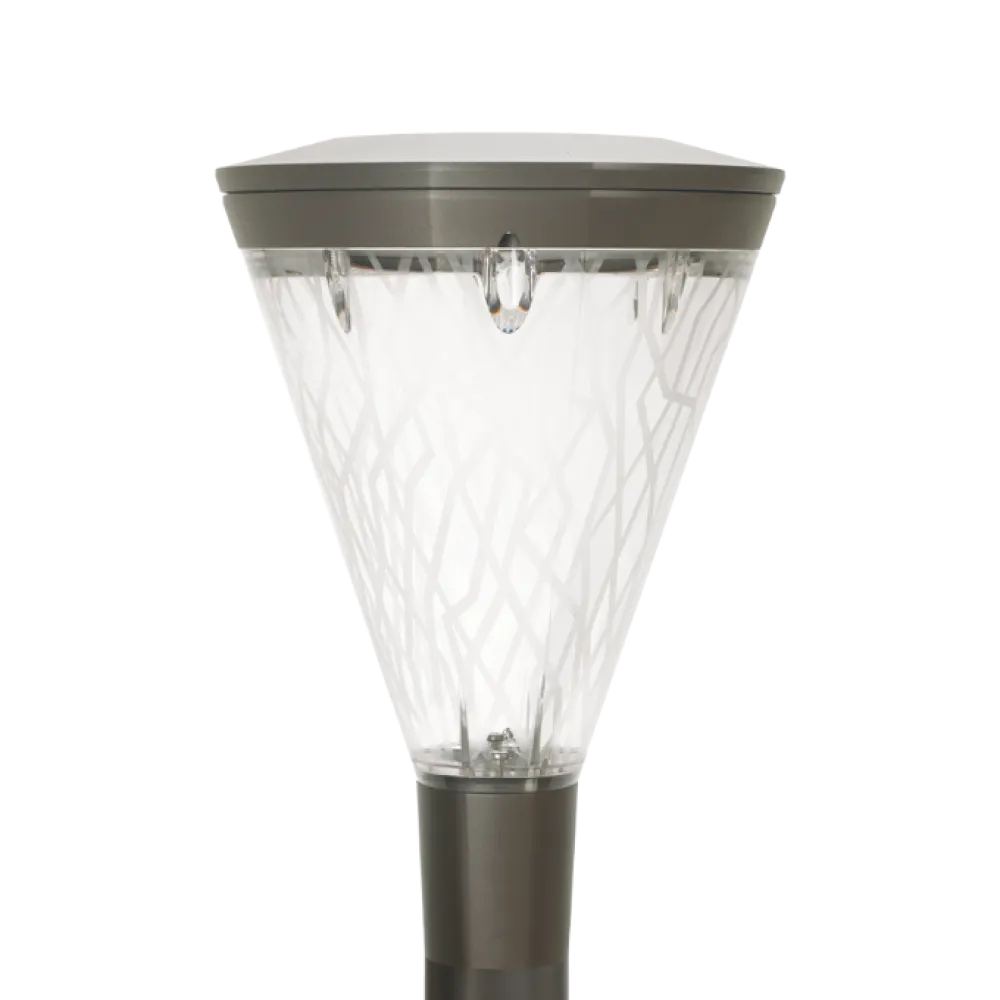

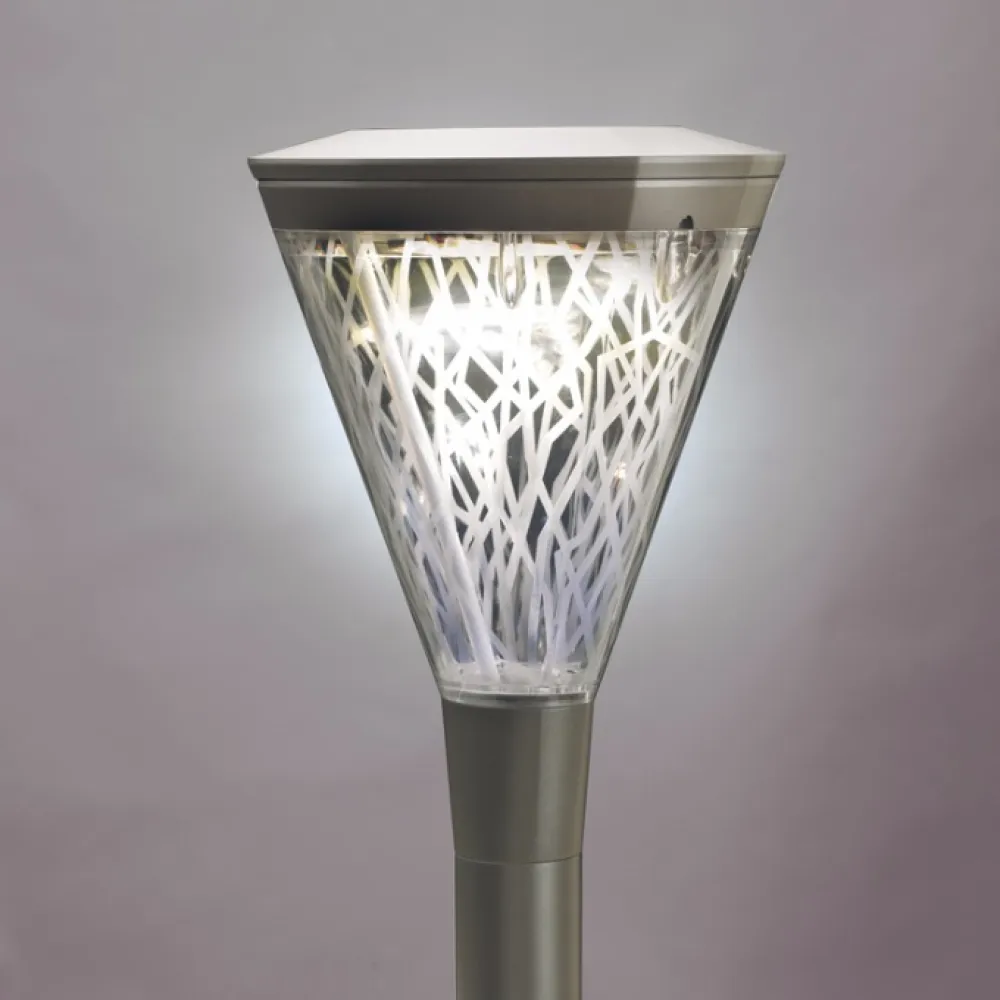

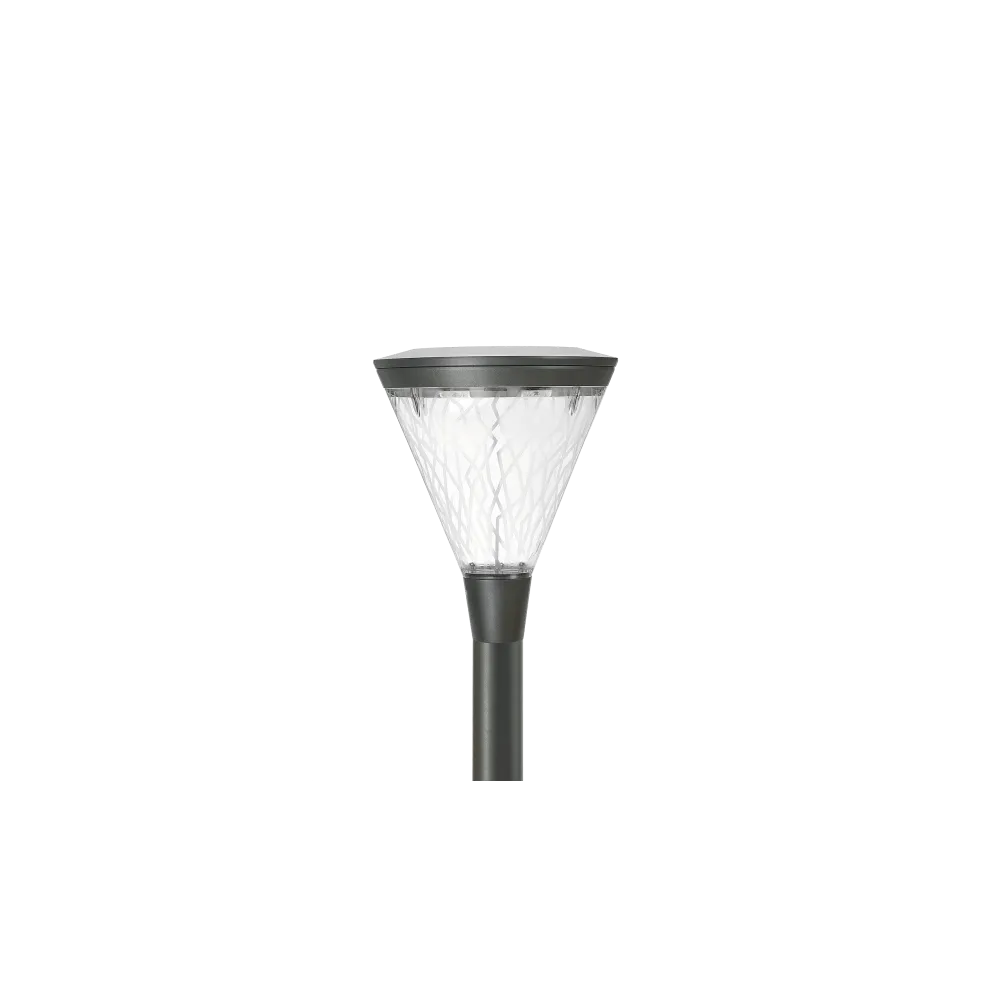

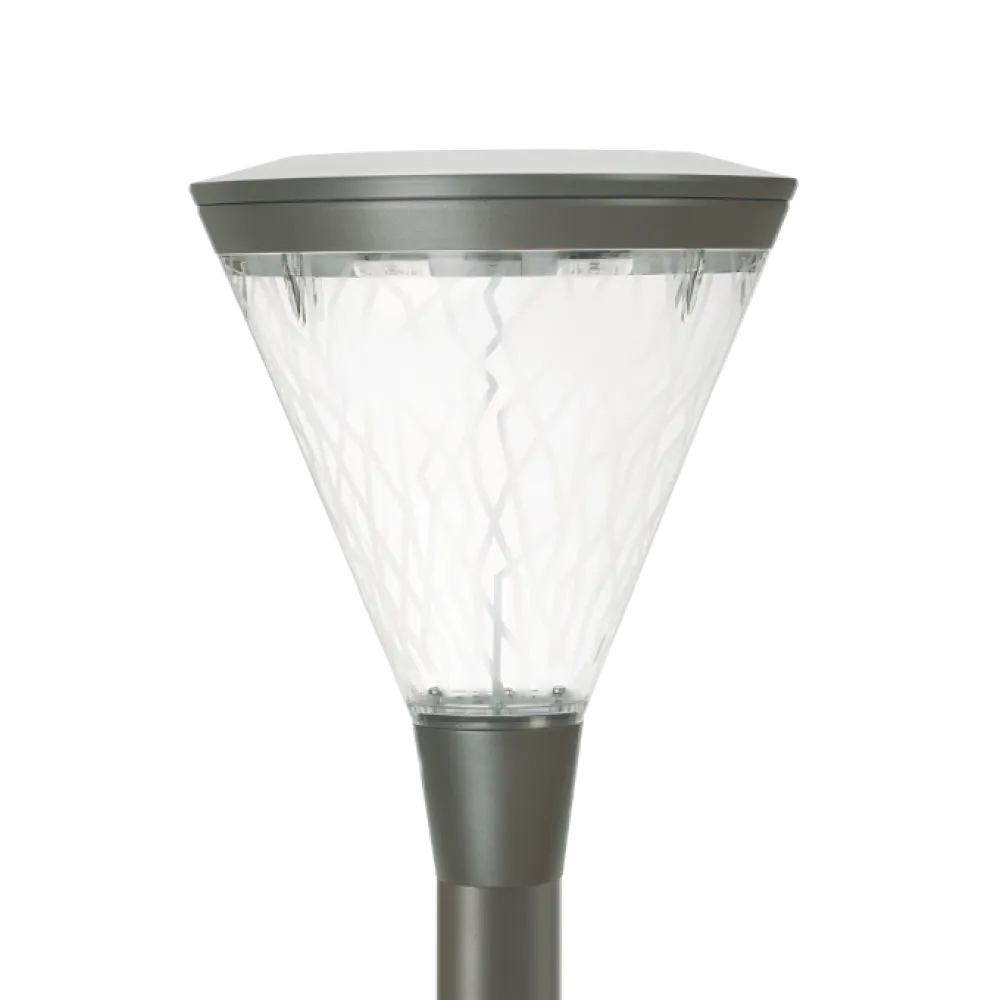

Verso

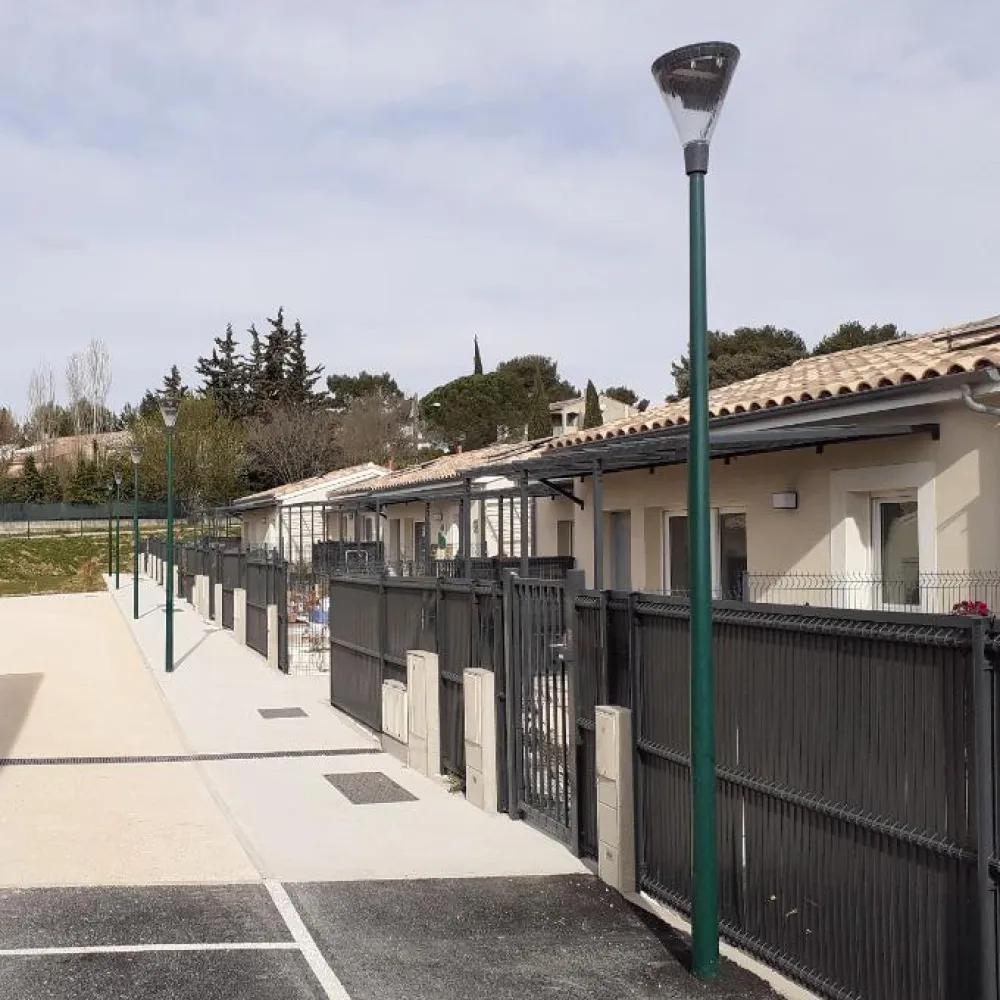

Energy saving lighting solution for the replacement of existing energy-consuming luminaires type balls. Simple and original urban decoration key. Unique light signature.

Product advantages

• Mounting from 3m
• Integrated D60 top mounting

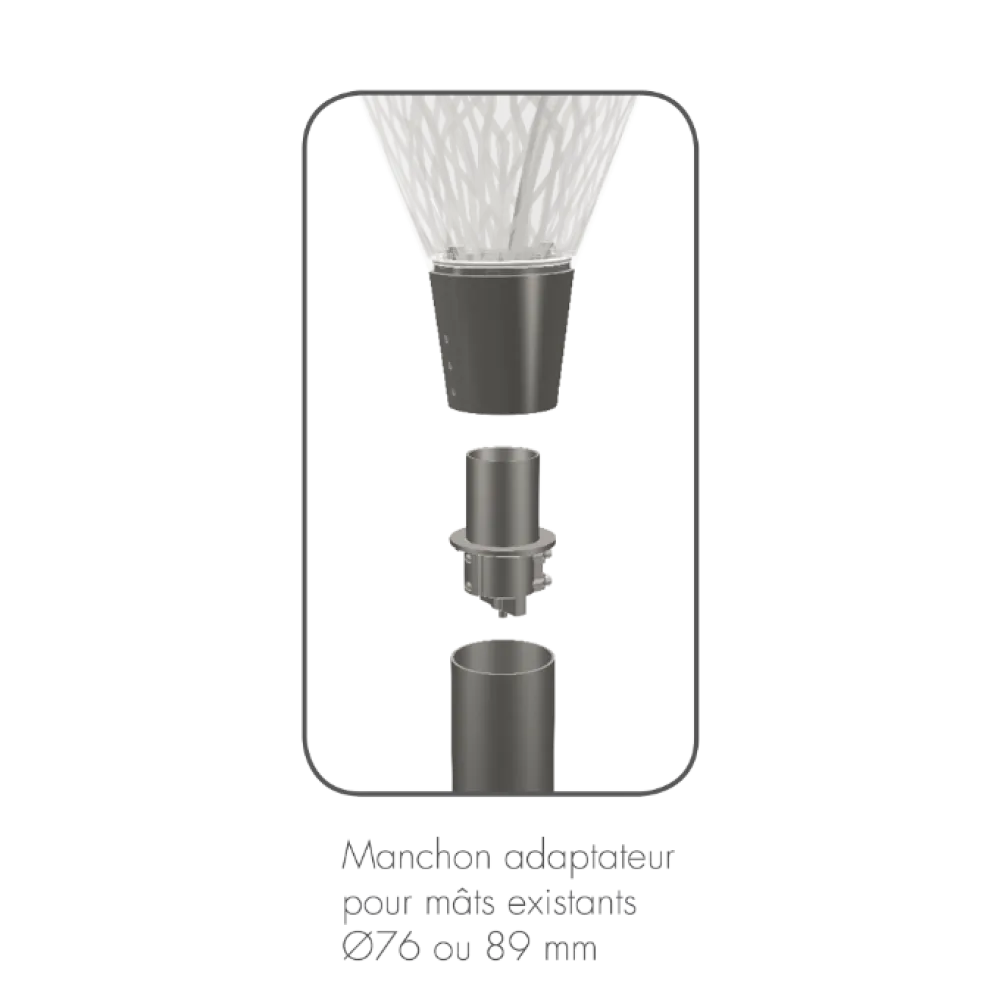

• Possible mounting with accessory on existing D89 or D76mm columns with no D60 adaptor sleeve
• Color temperature: 4000K or 3000K
• Choice between 5 optics
• 6m pre-cabled luminaire
• Heat lacquered powder coated finish
• Energy savings Smart Lum
• Remote PIR sensor
• Optional connector for Zhaga antenna

Dimensions
Side view:

• Length of the top of the lamp with mount: 500 mm
• Width of the top of the lamp without mount: 400 mm

RANGE

• Powers and flows in LED range synoptic table
• Color temperatures: 2200K - 2700K - 3000K - 4000K
• Life span L80 @350mA @tq=25°C ≥ 120 000h
• Fewer than 50% of LEDs have an outgoing flux inferior to 80% of the initial flux at 120 000h
• Thermal management of LED
• Zhaga standard LED module

AVAILABLE OPTICS:

• Lighting type for squares (SYM 5)
• Lighting type for narrow streets (ASYM 2 or 2-1)
• Lighting type for roads (ASYM 3)
• Lighting type for avenues (ASYM 3-1)
• Lighting type for parking lots (ASYM 4)

MATERIALS – SURFACE TREATMENT

• Body: die-cast AS 12 aluminum
• Bowl: impact-resistant PMMA
• Standard color: grey sanded 2900 or other RAL on request
• Baked (220°C) polyester powder coating
• Optional treatment specifically for coast/shoreline available

MOUNTING – CABLING

• Mounting on tube Ø60-62mm, 70mm length (outer Ø of the mount Ø89mm)
• 6 available meter pre-cabled luminaire (flexible cable 2x 1.5mm²)

INSTALLATION/MAINTENANCE

• Access by superior dome using 2 stainless steel captive screws
• Replaceable driver. Replaceable LED module
• Conditions of use and maintenance available upon request

RESISTANCE TO OVERVOLTAGE

• Category IV luminaire, holding to a shock wave of 6kV between phase-neutral and earth
• Surge protection device (SPD) 10kV-5kA between phase-neutral and earth to be provided at the base of the pole

OPTION

• For a communicating system, dual pre-cabling dedicated to communication is necessary (flexible cable 5Gx1.5mm²)
