500W Medical Power Supply 12V/41.6A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

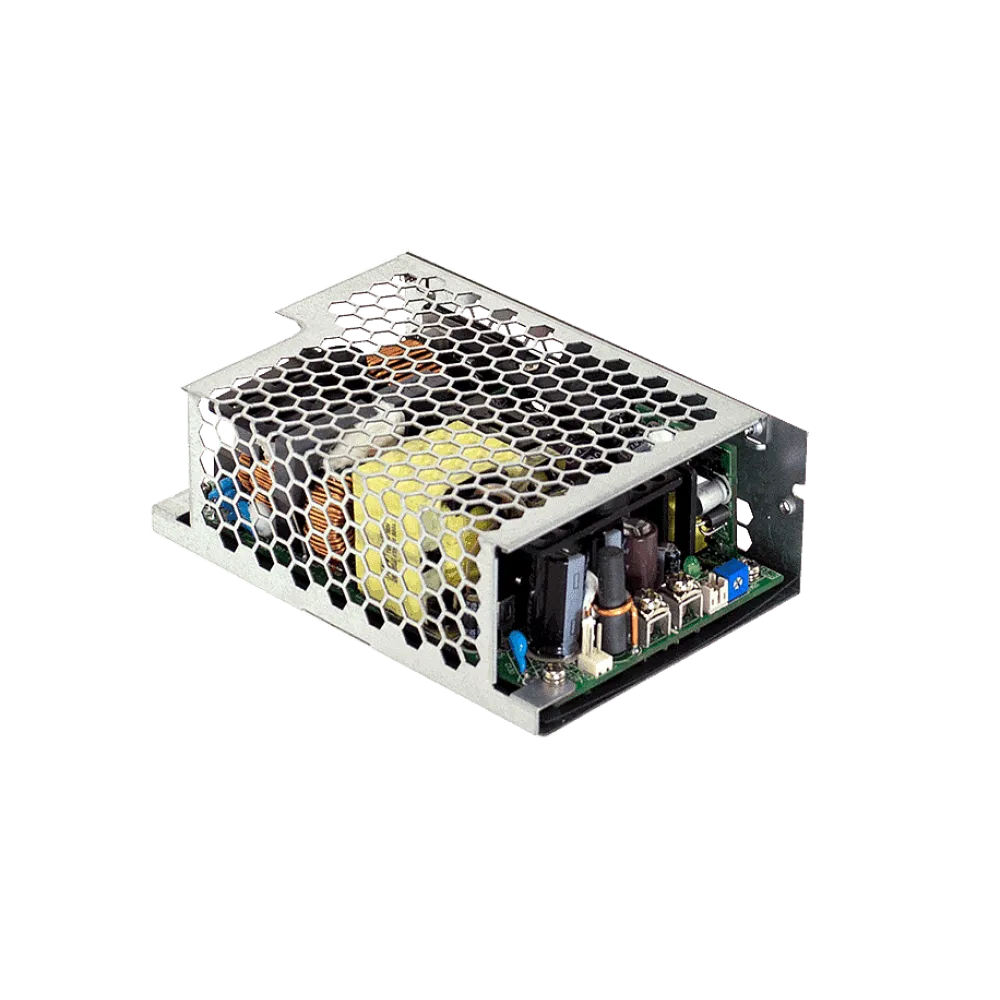

RPS-500-C Series 500W High-Power Miniaturized 5"x3" Medical Grade Open Frame Power Supply. Enclosed casing type.

5"x 3" high-power miniaturized design
2xMOPP isolation level, ultra-low leakage current 190μA, suitable for use in BF type medical applications
Full range 80~264VAC input with built-in PFC function
310W with cooling by free air convection and 500W with 25CFM forced air, 550W peak load (3 seconds)
Suitable for installation in Class I (with FG) systems
No load power consumption 0.5W
High efficiency up to 94%
-30～+70℃ wide operating temperature range
Operating altitude up to 4000 meters
Protections: short circuit/overload/over voltage/over temperature
Additional functions: 5Vsb and 12Vdc/0.5A auxiliary power, voltage compensation, P.G. and P.F. signals
UL/cUL/TUV/EAC/CB/CE medical safety approved
LED indicator for power on
Dimensions (LxWxH): 130x86x43mm

Output voltage (VDC)	12 V
Manufacturer warranty	3 years
Manufacturer	MEAN WELL
Control signals	Remote ON/OFF, Remote sense
Status signals	DC OK signal
Additional functions	5V DC auxiliary output, 12V DC auxiliary output
Application	Household, Medical
Voltage setting range	11.4-12.6 VDC
Height	43 mm
Width	86 mm
Length	130 mm
Protection class	Class I
Input voltage range (VAC)	80-264 V
Power	500 W
Efficiency	91.00%
