About the product

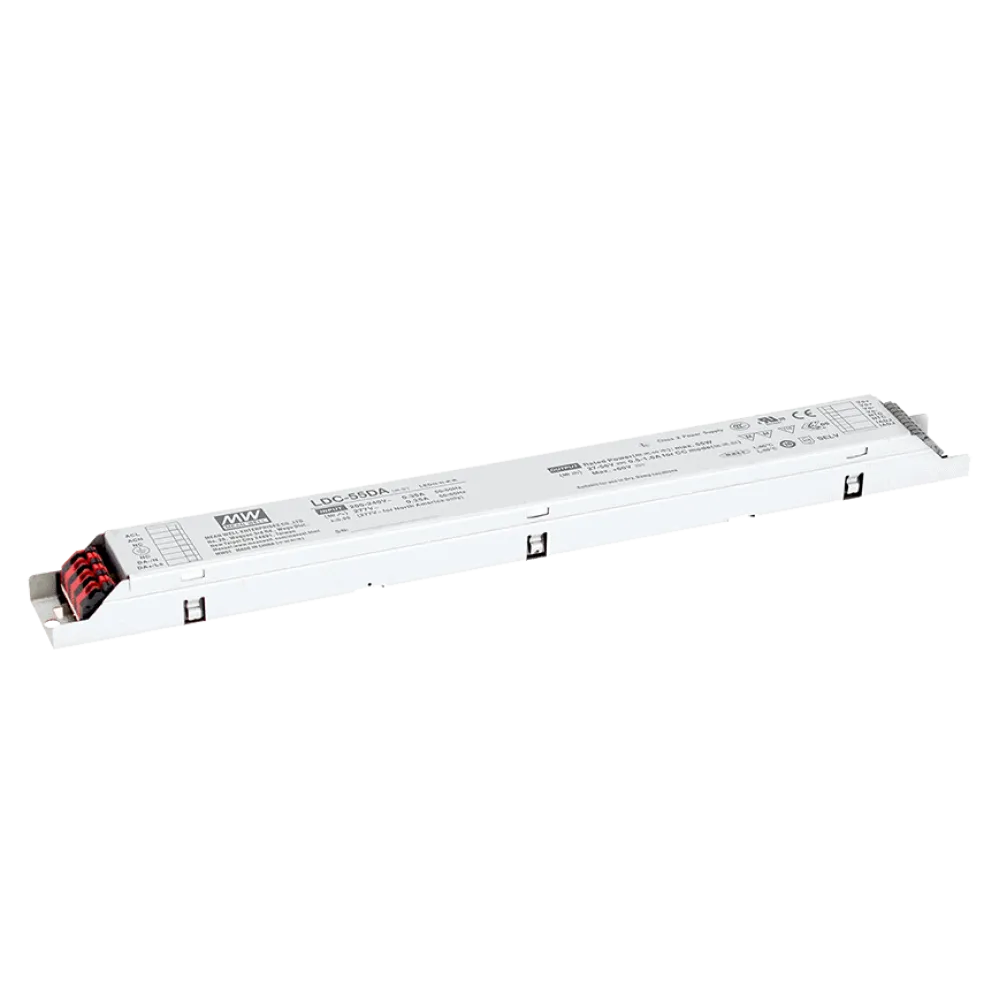

The LDC-55DA LED driver with constant power output is designed to drive LED lighting applications with 500mA to 1600mA in the voltage range of 27 to 56Vdc. Due to the constant power topology, the full 55W is available in the current range from 980mA to 1600mA. Version with DALI and push dimming.
Resistance values for current setting
Current | Resistance value | Article |
500mA | open | – |
700mA | 150kOhm | MBB02070C1503FCT00 |
900mA | 68kOhm | MBA02040C6802FCT00 |
1050mA (ex work) | 47kOhm | MBA02040C4702FCT00 |
1200mA | 33kOhm | MBA02040C3302FCT00 |
1300mA | 27kOhm | MBA02040C2702FCT00 |
1450mA | 24kOhm | MBA02040C2402FCT00 |
1600mA | 18kOhm | MBA02040C1802FCT00 |
Technical data
- Universal AC Input 180 to 295Vac
- Constant Power Design
- Output Voltage Region 27 – 56Vdc
- Full Power Current range 980mA – 1600mA
- Current adjustable from 500mA to 1600mA
- Output current level pre-settable by resistor set (Please check accessories)
- DALI and Push dimming
- No load power consumption 0.5W
- SELV and Isolated
- Dimension 320 x 30 x 21mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
Power | 55 W |
Output voltage range (VDC) | 27-56 V |
Output current | 500-1600 mA |
Input voltage range (VAC) | 200-240 V |
Manufacturer | MEAN WELL |
Manufacturer warranty | 5 years |
Additional functions | Constant power |
Connection | Push-in terminal |
IP protection | IP20 |
Height | 21 mm |
Width | 30 mm |
Length | 320 mm |
Application | Single color |
Dimming method | Current regulation |
Current setting | Resistor |
Channels | 1 |
Control | DALI2, DALI, AC Push Dimming |
Product series | LDC |
