About the product

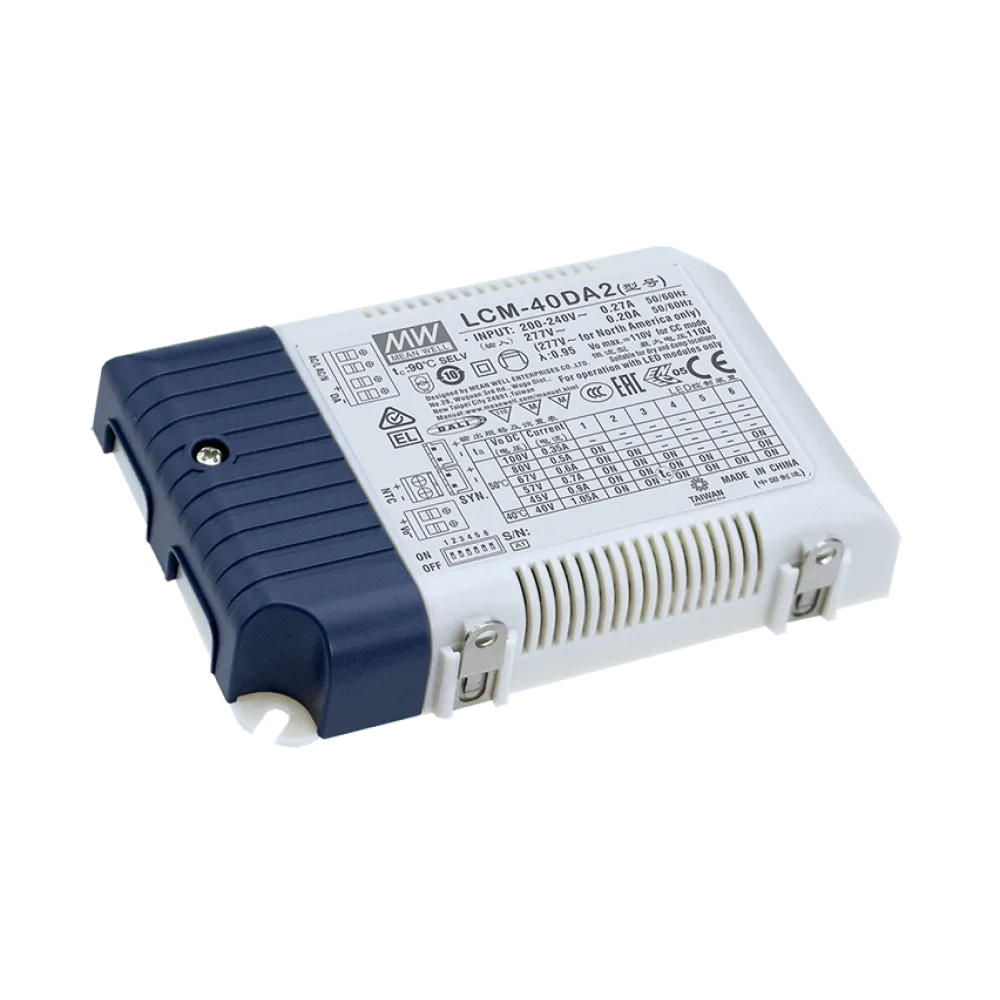

LCM-40DA2 is a flexible, dimmable LED converter with constant current output. The power supply can be controlled with DALI2 or AC Push.
Highlights
- Output current can be selected with DIP switch on the power supply unit
- Wide voltage range of 2-100Vdc also allows operation of smaller loads
- Controllable with DALI2 and AC Push
- Dimming is flicker-free with current control, no PWM at output
- Up to 10 LCMs can be synchronised in master/slave mode (additional SYNC cable required)
Control
- DALI2
- AC Push
Dimming Range
The dimming range is 6 to 100% from output current
Technical data
- AC input 180 to 277Vac
- Output current selectable by DIP Switch 350mA / 500mA / 600mA / 700mA / 900mA / 1050mA
- Built-in DALI 2.0 interface and push dimming function
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Dimming by current reduction, No PWM output
- Class II power unit, no FG
- Synchronization function up to 10 units (additional SYNC cable required)
- No load power consumption 0.5W
- Easy installation by spring terminal blocks
- Dimension 123.5 x 81.5 x 23mm (L x W x H)
- 3 years warranty
Product specifications
| Power | 40 W |
| Output voltage range (VDC) | 2-100 V |
| Output current | 350-1050 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | NTC function |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 23 mm |
| Width | 81.5 mm |
| Length | 123.5 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI2, DALI, AC Push Dimming |
| Product series | LCM |
