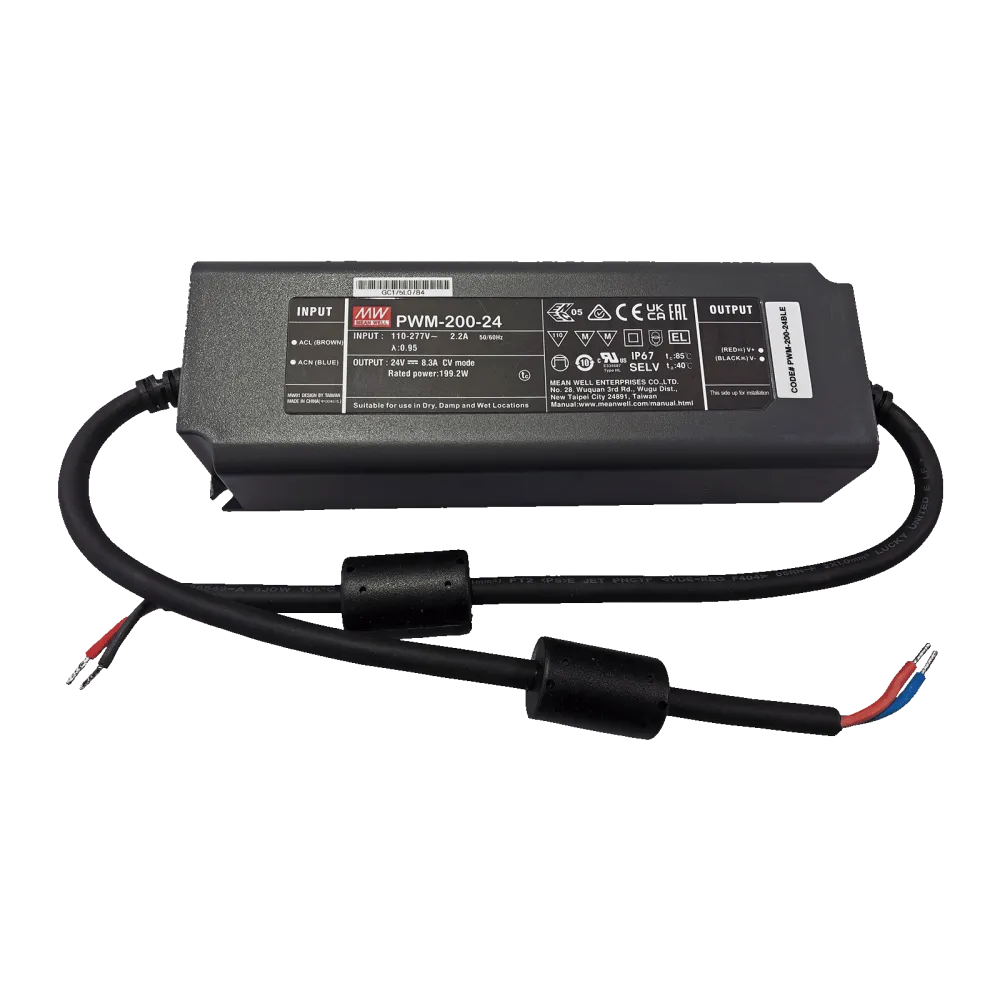

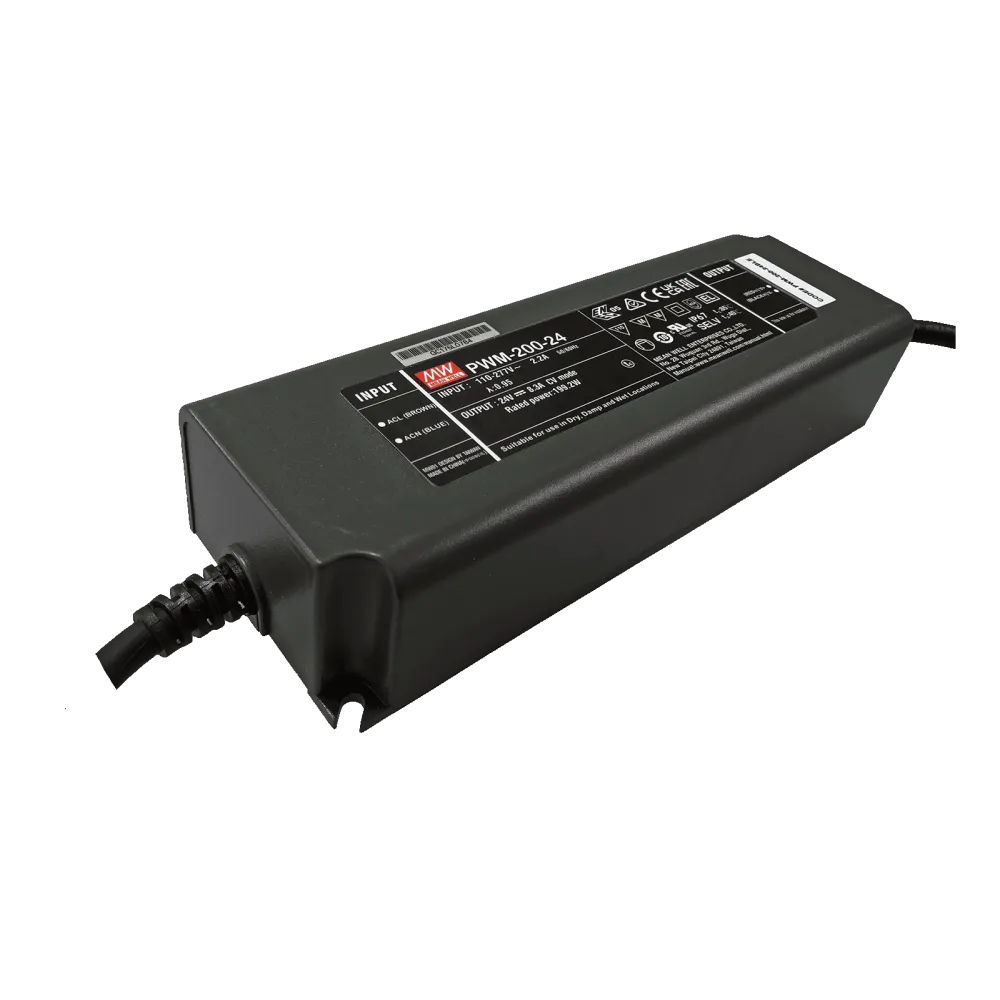

About the product
PWM-200BLE series is an AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM-200BLE featuring the Casambi Bluetooth control so that the installation is greatly simplified.
Technical data
- Universal AC input 100 to 305Vac
- Constant voltage output
- CASAMBI Bluetooth control
- PWM style dimming with frequency 4kHz
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 195 x 68 x 39.5mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | PWM |
| Input voltage range (VAC) | 100-277 V |
| Additional functions | EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 39.5 mm |
| Width | 68 mm |
| Length | 195 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | Casambi |
| Channels | 1 |
| Output current | 8.3 A |
| Power | 200 W |
| Manufacturer | MEAN WELL |
Data sheets
