About the product

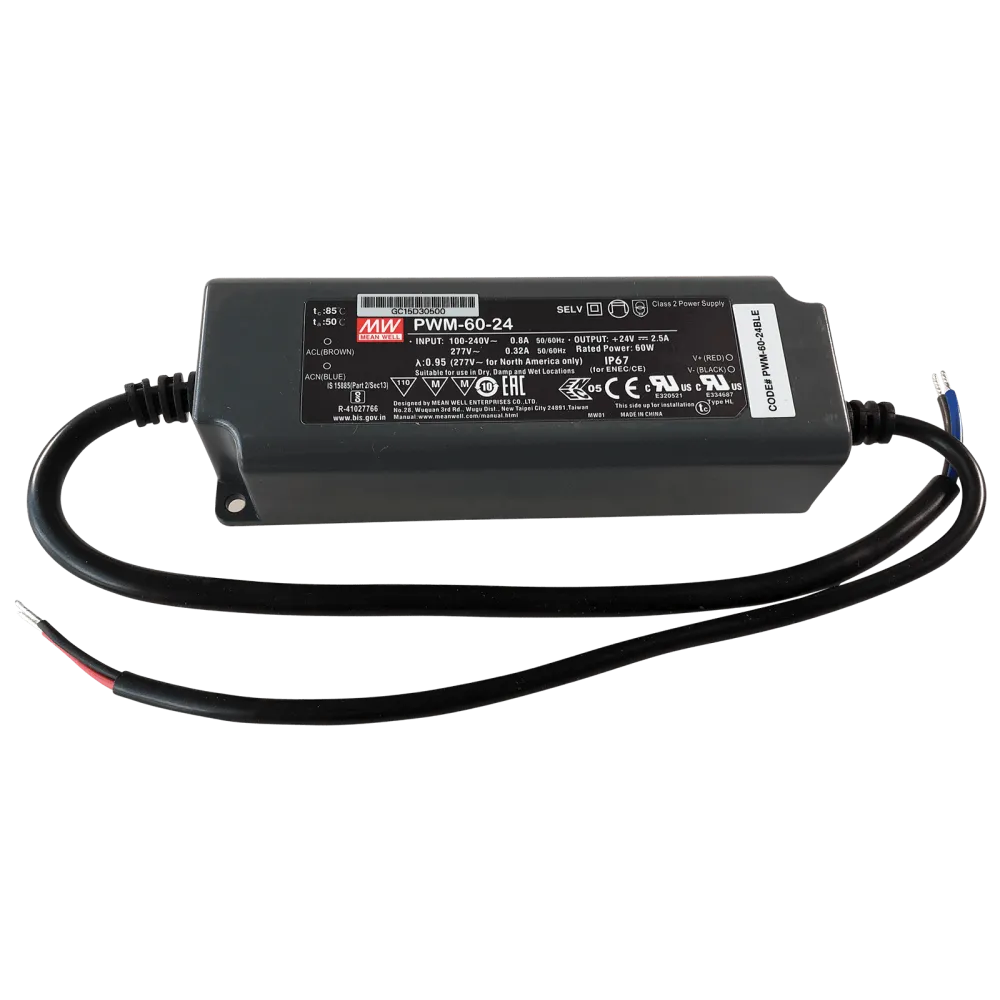

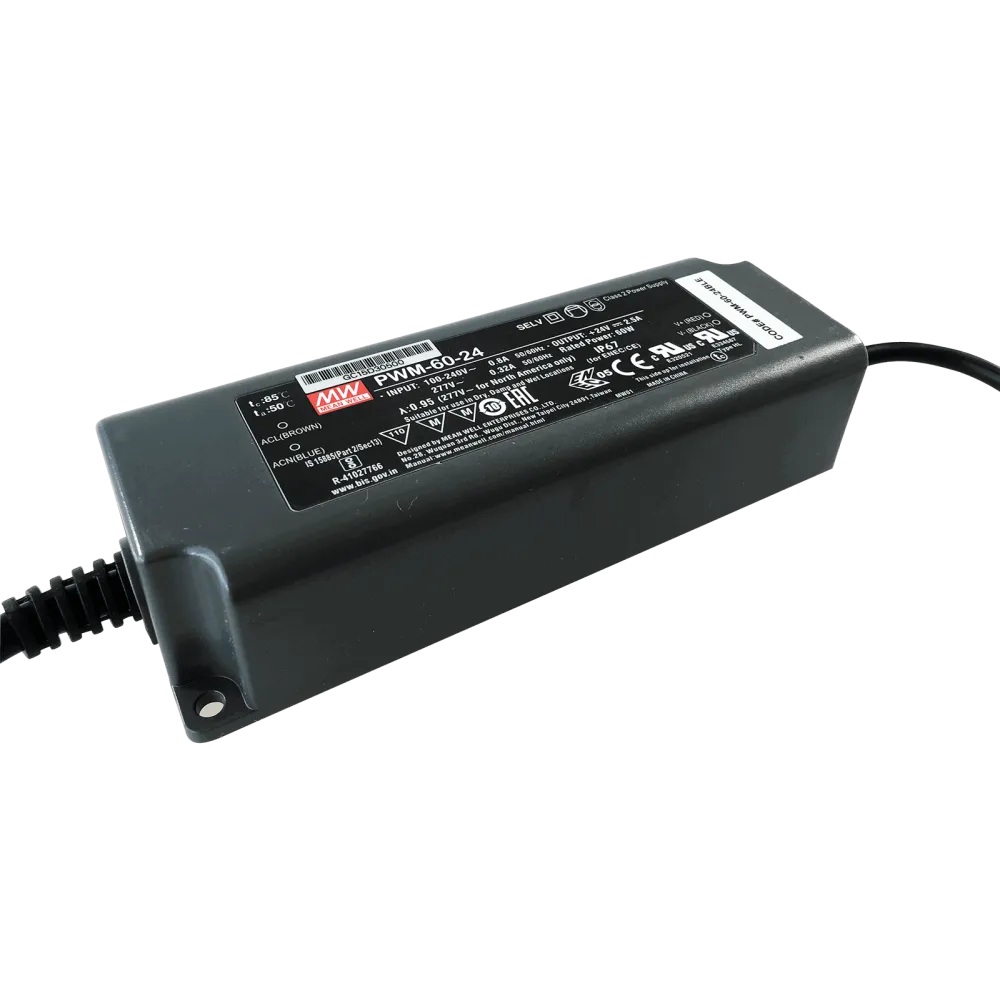

PWM-60 series is a 60W AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM-60BLE featuring the Casambi Bluetooth control so that the installation is greatly simplified.
Technical data
- Universal AC input 90 to 305Vac
- Constant voltage output
- CASAMBI Bluetooth control
- PWM style dimming with frequency 4kHz
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 150 x 53 x 35mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | PWM |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 35 mm |
| Width | 53 mm |
| Length | 150 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | Casambi |
| Channels | 1 |
| Output current | 2.5 A |
| Power | 60 W |
| Manufacturer | MEAN WELL |
