About the product

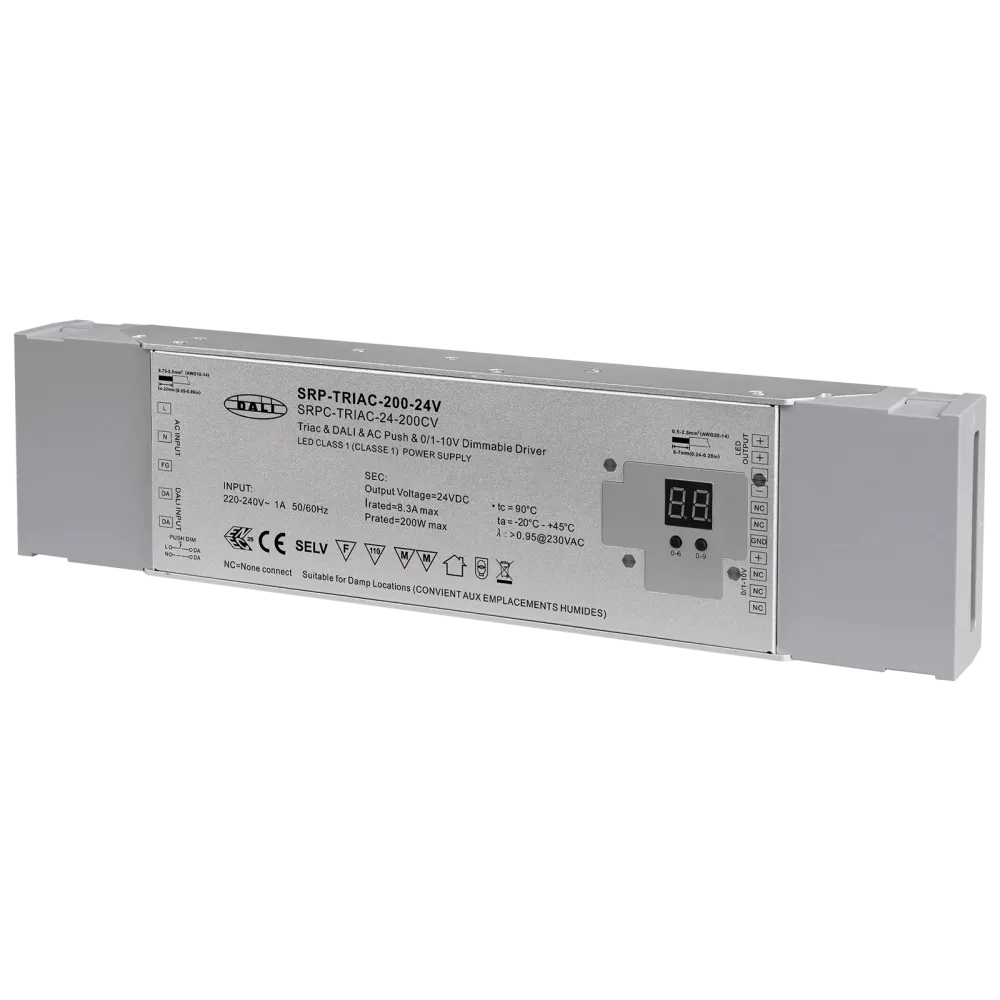

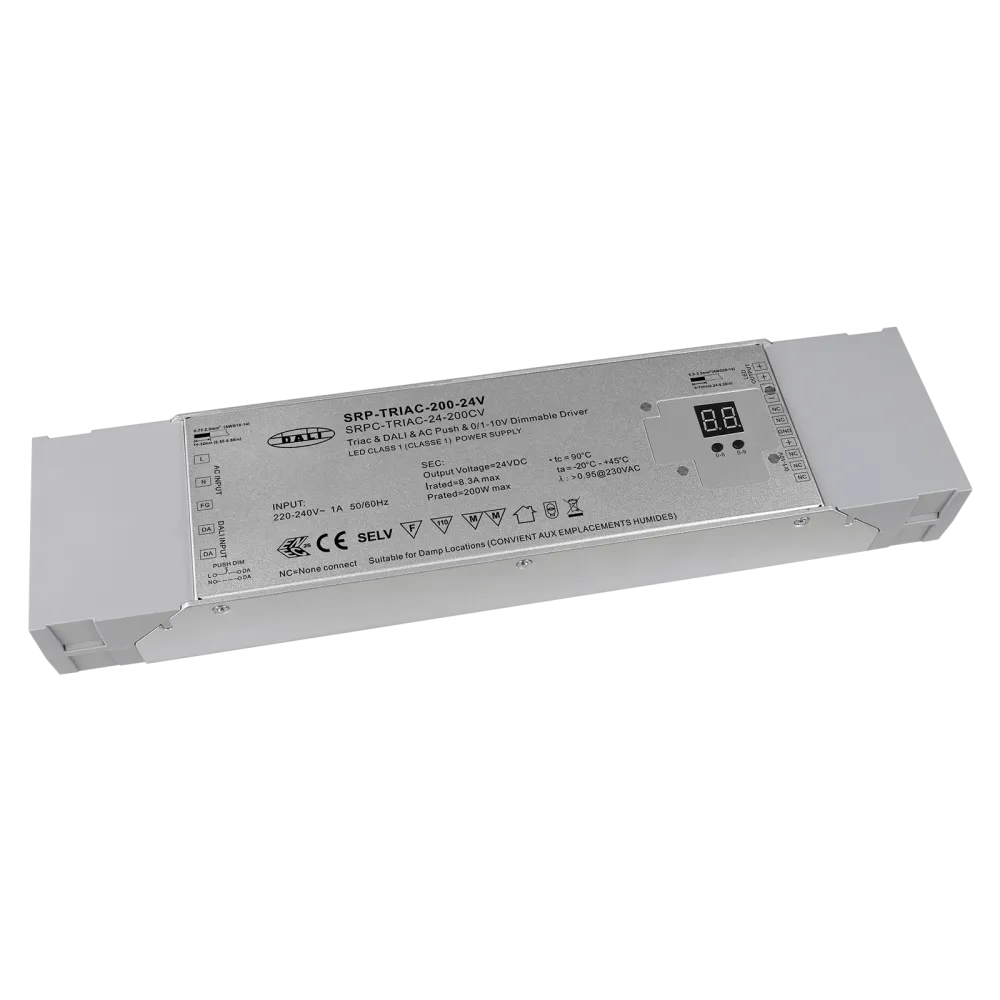

SRP-TRIAC-200-24V MULTIDIM with PWM output and integrated DALI interface is ideal for operating constant voltage LED applications such as LED strips. Various control options in one unit such as DALI, TRIAC, AC PUSH etc.
Control
- 0-10V, 1-10V, AC Push Dimming, DALI, Phase Dimmer
Application
- Single colour
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Dimmable LED power supply in metal housing
- 1 channel 24VDC constant voltage power supply unit
- DALI, AC-PUSH, TRIAC, 0/1-10V dimmable power supply unit
- 2-channel DC24V constant voltage outputs
- Complies with DALI IEC DALI standards IEC62386-101, 102, 207
- IP20 protection class, suitable for indoor lighting projects
- Dimming with 1.5kHz PWM frequency
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | SRP |
| Input voltage range (VAC) | 200-240 V |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 39 mm |
| Width | 79 mm |
| Length | 330 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | DALI, AC Push Dimming, Phase dimmer, 0-10V, 1-10V |
| Channels | 1 |
| Output current | 8.3 A |
| Power | 200 W |
| Manufacturer | Sunricher |
