About the product

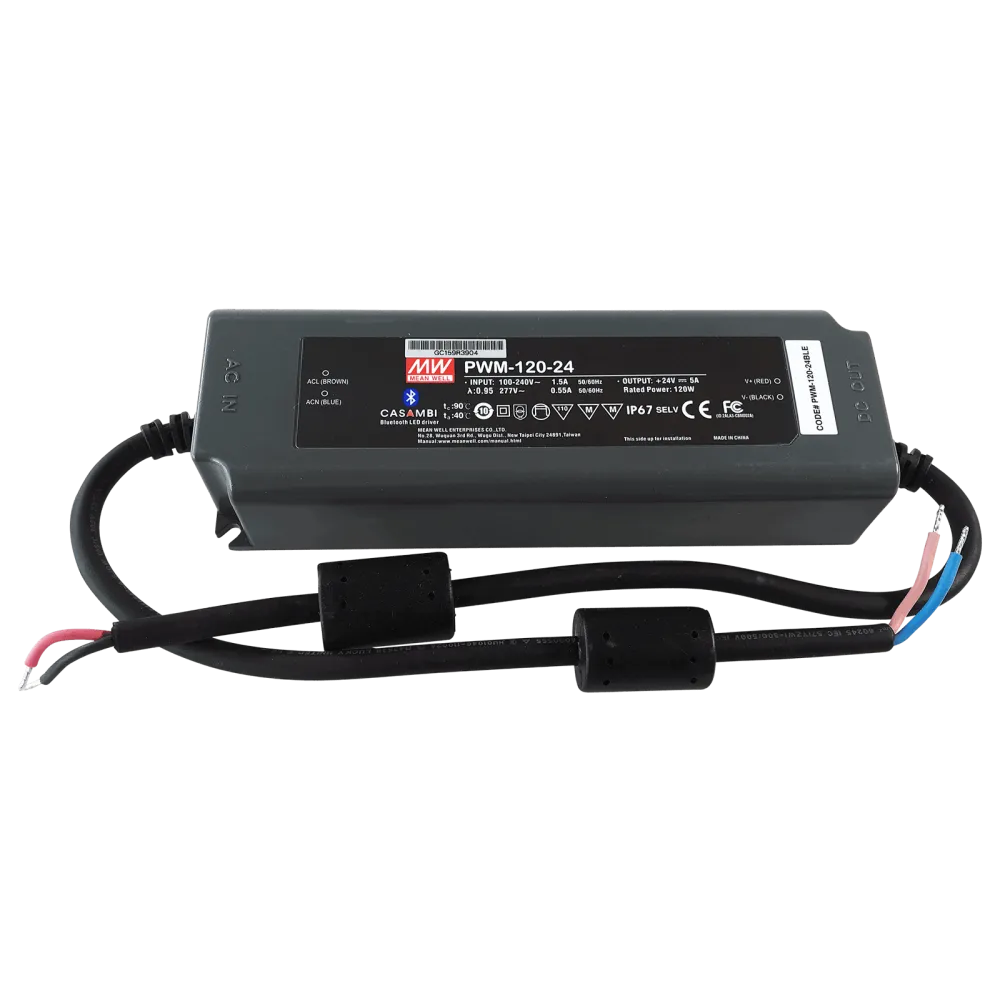

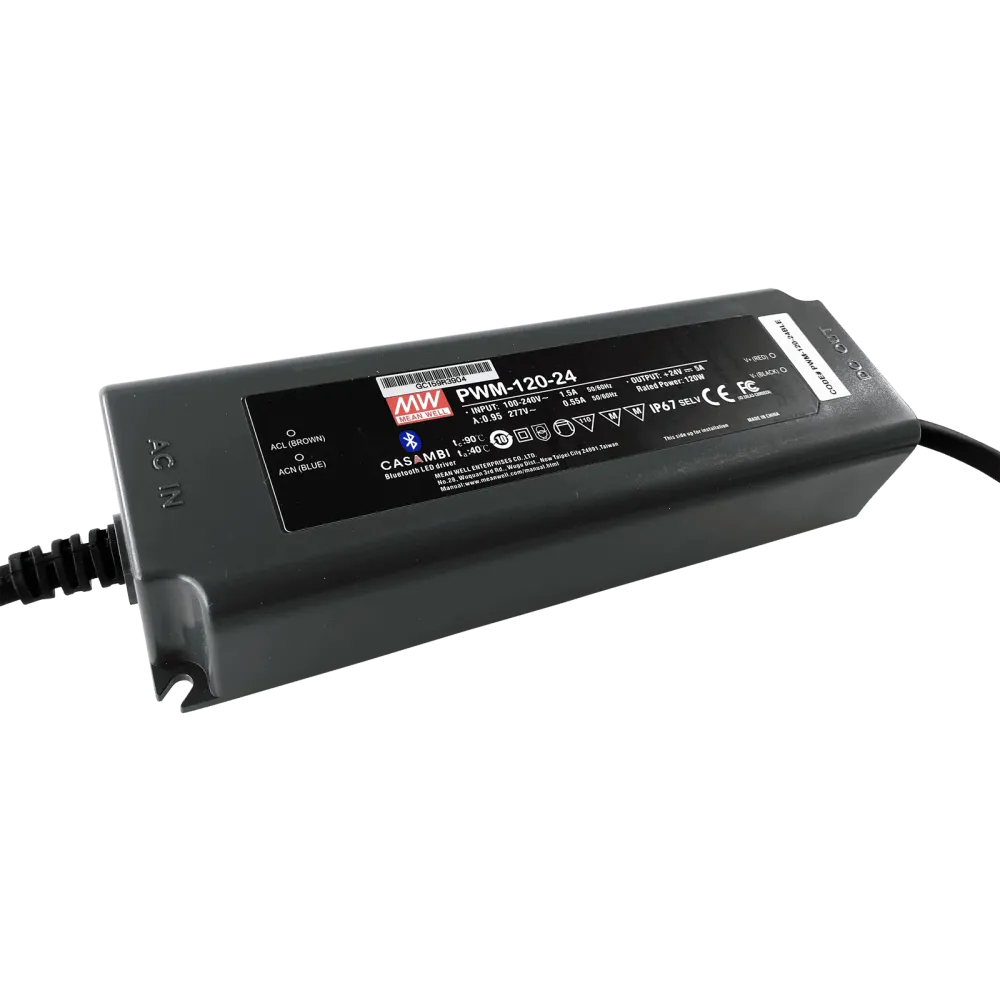

PWM-120 series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM-120BLE featuring the Casambi Bluetooth control so that the installation is greatly simplified.
Technical data
- Universal AC input 90 to 305Vac
- Constant voltage output
- CASAMBI Bluetooth control
- PWM style dimming with frequency 4kHz
- No load power consumption 0.5W
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 191 x 63 x 37.5mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | PWM |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 37.5 mm |
| Width | 63 mm |
| Length | 191 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | Casambi |
| Channels | 1 |
| Output current | 5 mA |
| Power | 120 W |
| Manufacturer | MEAN WELL |
