About the product

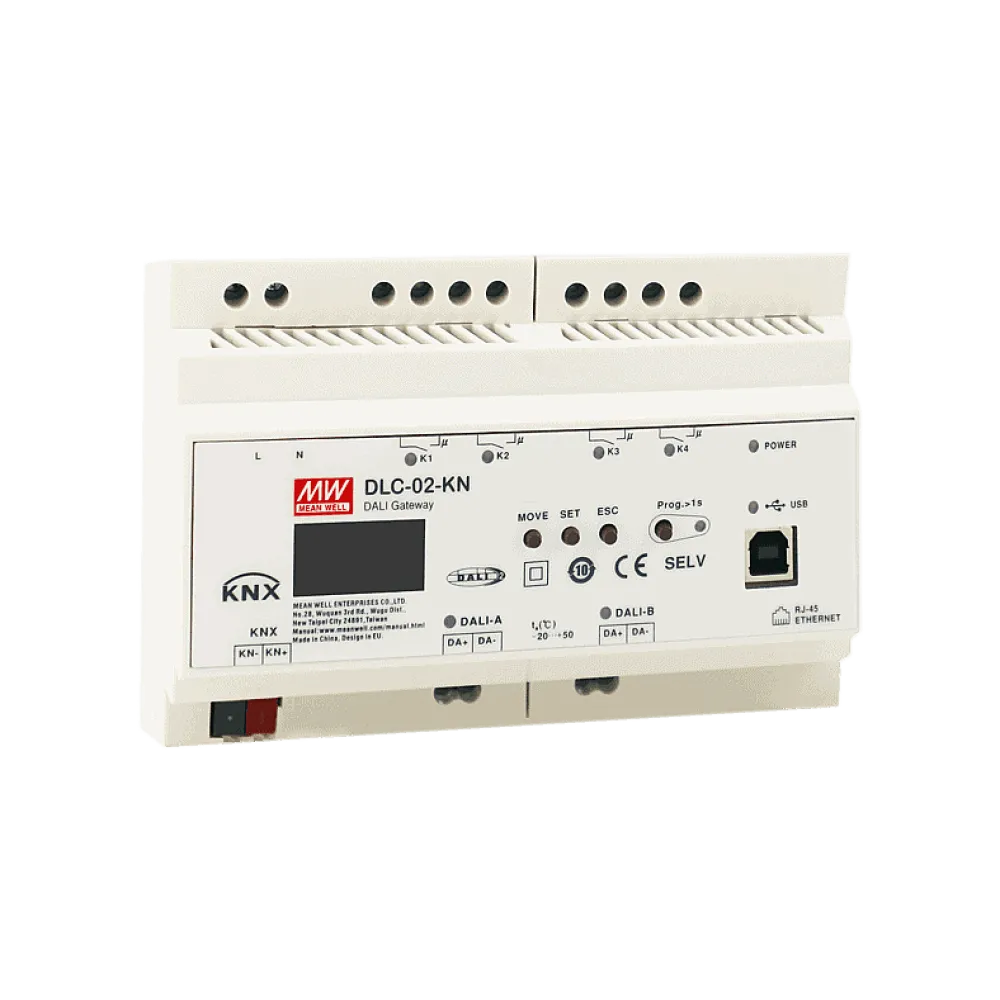

The KNX / DALI gateway DLC-02KN connects the KNX installation bus with the DALI bus. Two complete DALI groups of 64 can be programmed. In addition to the gateway, 4 relay contacts are installed which can be used as KNX actuators.
The Gateway can be used to control DALI DT6 Single Color and DALI DT8 Tunable White and RGBW applications.
Technical data
- Simple configuration and installation
- 2x DALI 2.0 bus channels for operation of 2 x 64 DALI drivers and 2 x 12 input devices.
- Integrated DALI power supply (up to 250mA per channel)
- DALI DT6, DT8 (Tunable White, RGBW, xy-coordinate)
- LCD display
- Programming directly via buttons on the gateway, via ETS or integrated web server
- 2 x 16 DALI groups / 2 x 16 DALI scenes
- 4 relay contacts 250V/5A built-in
- Dimensions 144 x 90 x 58.3mm (W x H x D)
- 5 years warranty
Product specifications
| Product | KNX/DALI Gateway |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Application | RGBW, Single Color, Staircase lighting, Tunable white |
| Channels | 2x DALI, 4 x Switching |
