About the product

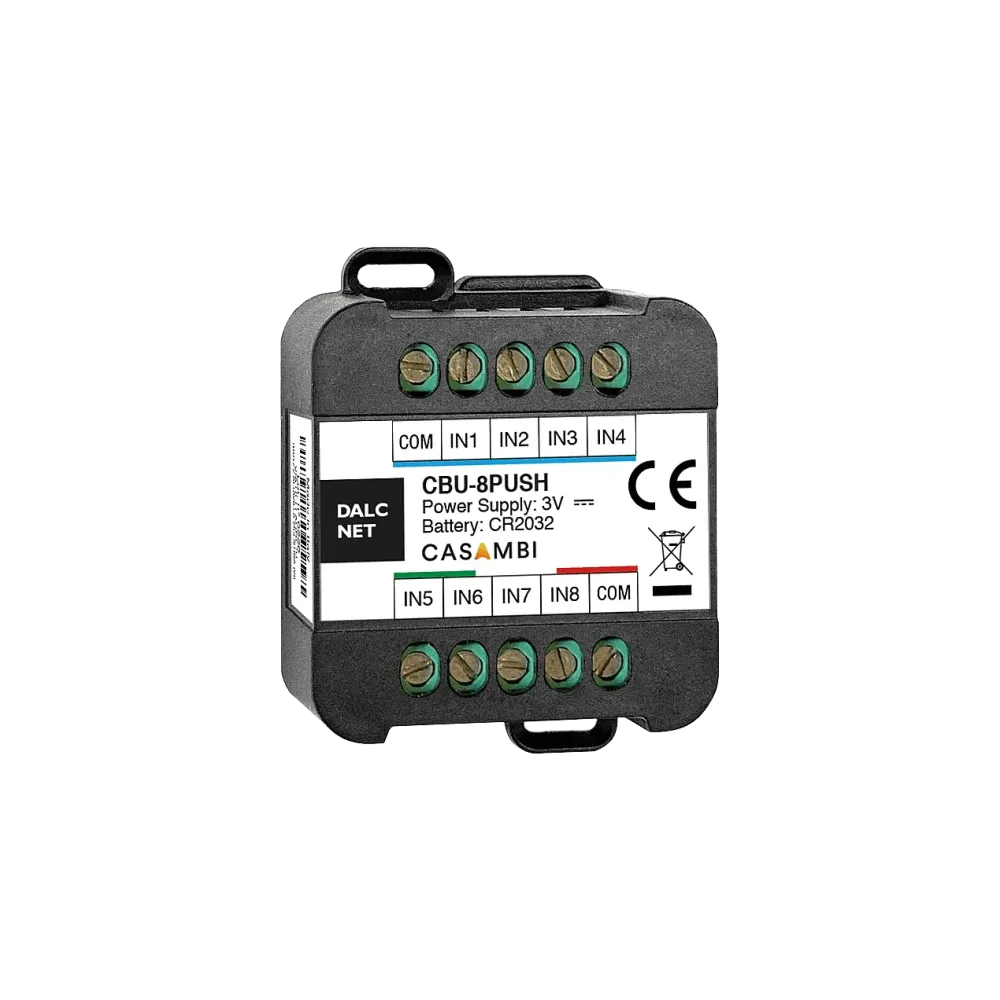

CBU-8PUSH is a wireless user interface that can be configured via the Casambi APP.
. The device has up to 8 inputs for connecting as many pushbuttons. Its operation depends on the type of device, which is set via the
. Casambi APP is set.
. The push-buttons can dim the preset of the luminaire continuously, control a luminaire, integrate a group of luminaires or all luminaires
. into the network, control a scene, control an animation - all this can be set via the Casambi app.
Technical data
- CASAMBI PUSHBUTTONS
- Command: CASAMBI APP
- Local command: up to 8 push-buttons N.O. (Normally Open)
- Option to set multiple lights
- Control of a single luminaire
- Control of all lights
- Gentle dimming
- Control and recall of a scene
- Calling up animations
- Changing the color temperature
- Power supply: CR 2032 battery
- 100% function test
Product specifications
| Control | Casambi |
| Manufacturer's warranty | 5 years |
| Application | Single Color, Tunable White |
| IP protection | IP20 |
| Channels | 8 |
| Input voltage range (VDC) | 3.3 V |
| Length | 44 mm |
| Height | 19 mm |
| Manufacturer | DalcNet |
| Width | 57 mm |
| Connection | Screw terminal |
| Product series | CBU |
