About the product

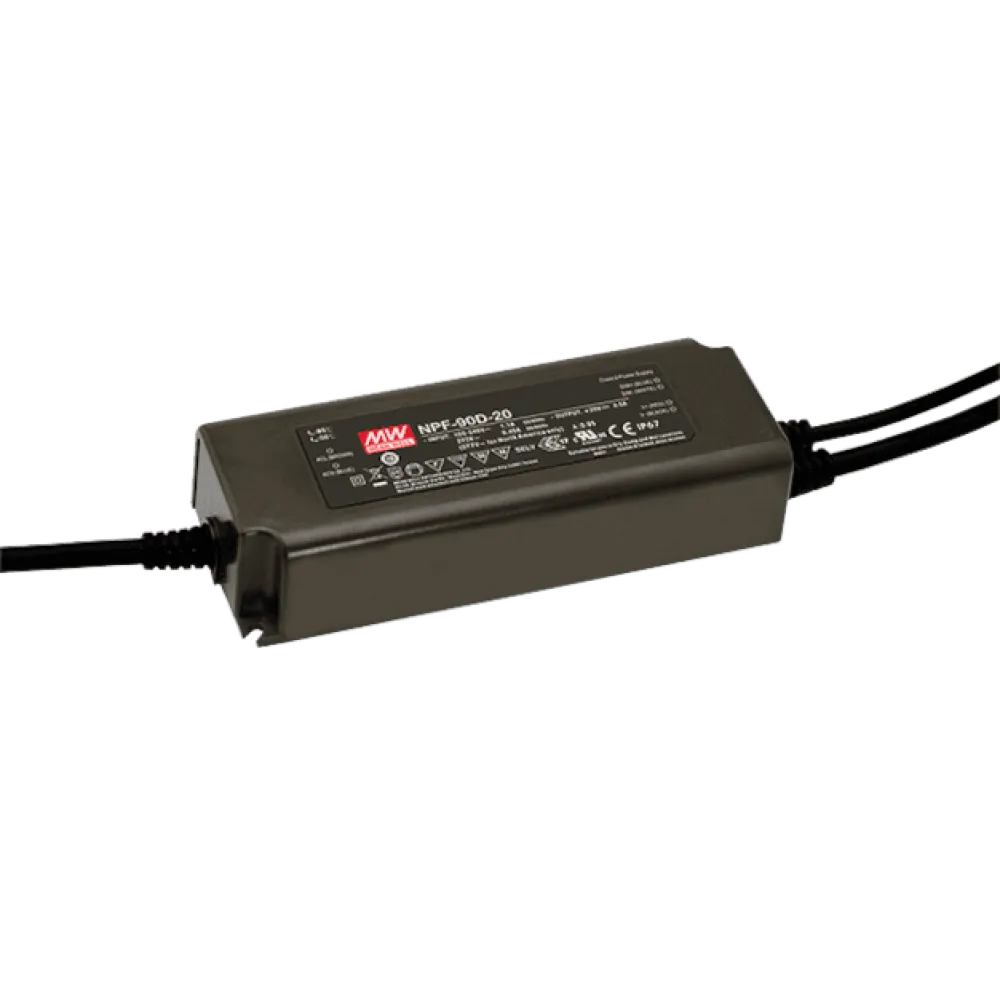

90W LED Driver CV+CC 24V/3.75A , 3in1 Dimming
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- Constant current level can be adjusted through 0-10Vdc / PWM signal or Resistance
- Dimming by current reduction, No PWM output
- No load power consumption <0.5W
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 171 x 63 x 37.5mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | NPF |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 37.5 mm |
| Width | 63 mm |
| Length | 171 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Control | Resistor, 0-10V, 1-10V, PWM control signal |
| Channels | 1 |
| Output current | 3.75 A |
| Power | 90 W |
| Manufacturer | MEAN WELL |
