About the product

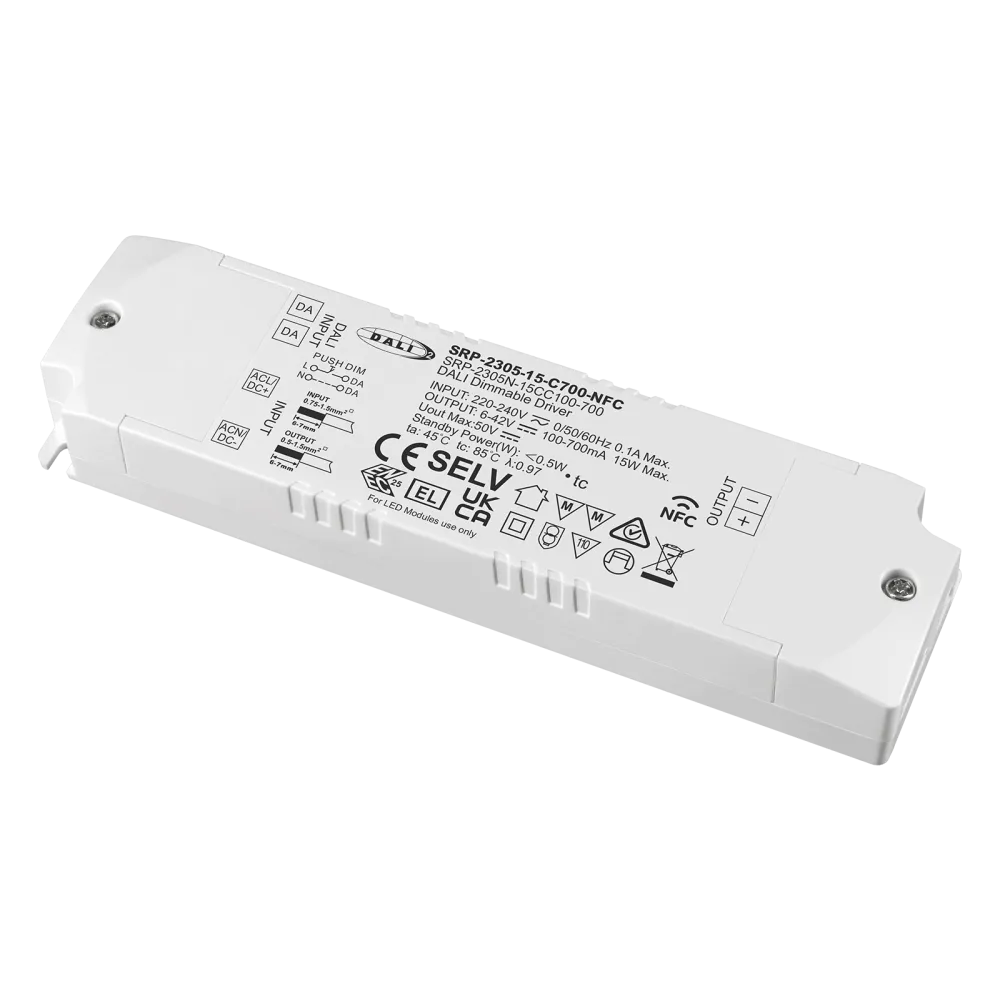

SRP-2305-15-C700-NFC is a flexible, dimmable LED converter with constant current output. The power supply can be controlled with DALI2 DT6. The output current can be adjusted between 100 and 700mA via NFC.
Control
- DALI2 DT6, AC-PUSH
Application
- Single colour
Current setting
- NFC
Dimming range
The load-dependent dimming range is 0.1% to 100%.
Dimming method: Amplitude dimming
Technical data
DALI2 DT6 and AC-PUSH dimmable 1-channel NFC power supply unit
1 channel 100~700mA constant current output, selectable via NFC program tool
In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
Built-in DALI2 interface, DALI DT6 device
Dimmable LED driver. Max. Output power 15W
Output voltage range: 6-42VDC
Class 2 power supply, fully insulated plastic housing
High power factor and efficiency
For switching and dimming LED lighting fixtures
Amplitude dimming, smooth and deep dimming down to 0.01%
Compatible with universal DALI masters that support DT6 commands
IP20 protection class
5 years warranty
Dimensions: 135 x 35 x 22mm
Product specifications
| Power | 15 W |
| Output voltage range (VDC) | 6-42 V |
| Output current | 100-700 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Sunricher |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 22 mm |
| Width | 35 mm |
| Length | 135 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | NFC |
| Channels | 1 |
| Control | DALI DT6, DALI2, DALI, AC Push Dimming |
| Product series | SRP-2305 |
