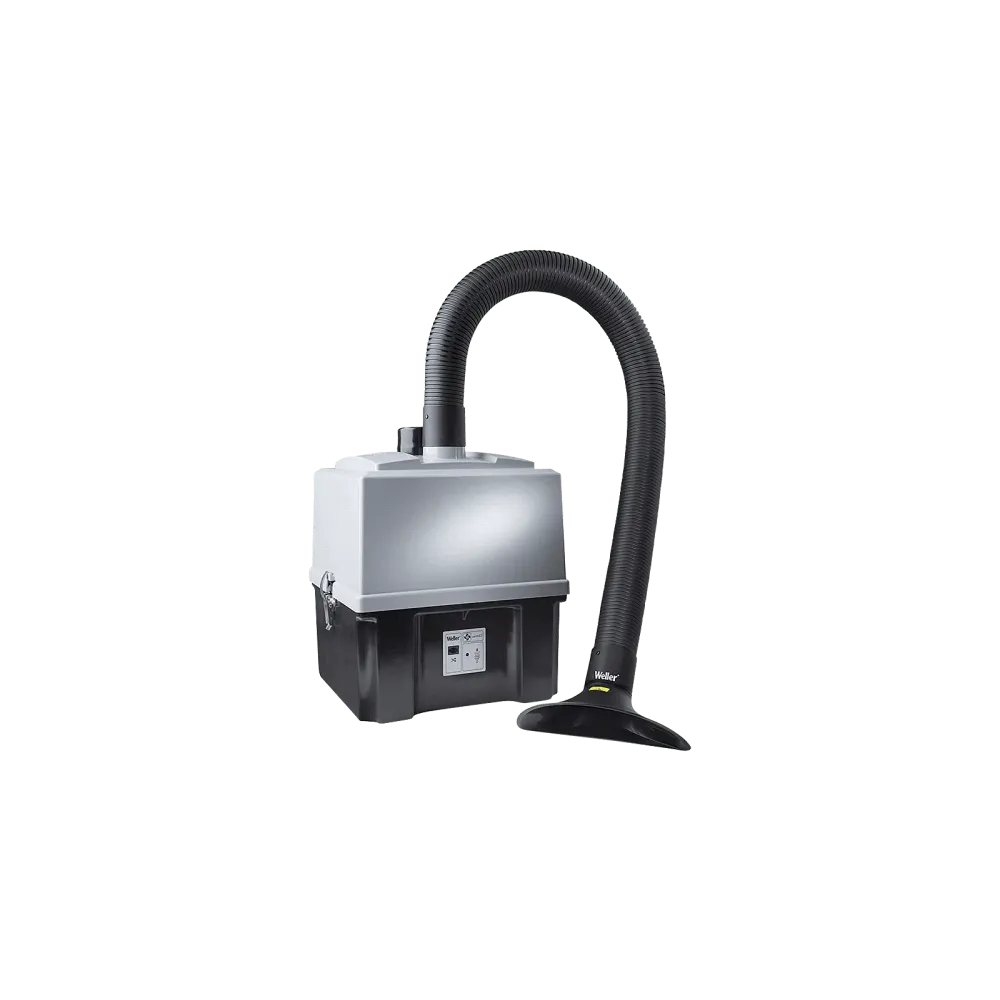

Zero Smog EL Kit 1

Extraction system for 1 to 2 workstations, including hopper nozzle for applications where a larger area needs to be covered and the hopper nozzle can be placed directly on the worktable.

Technical data

• Noise level (distance 1 m) dB(A): 53
• Applications: Hand soldering
• Number of workstations: 1-2
• Max. Vacuum (Pa): 2500
• Delivery rate (l/min): 150
• Dimensions L x W x H (mm): 335 x 360 x 445

Scope of delivery

• Zero Smog EL
• 0F15 Flexible suction arm: suction arm, flexible, diameter 60 mm, for beveled and funnel-shaped nozzles, total length 1.5 m
• Compact filter: H13 particle filter and activated carbon granulate filter with 10 M5 pre-filters for Zero Smog 2, Zero Smog EL, WFE 2ES / CS
• Mounting clamp Ø 63 mm, 1 piece, for fixing Easy-Click 60, 60 mm extraction arms
• ALFA funnel nozzle: Easy-Click 60 funnel nozzle for flexible and articulated extraction arms, width 230 mm, height 100 mm. Adapter Z is required for attachment to an aluminum extraction arm without flexible extraction hose
• Fine dust filter M5 for WFE 2ES/CS, Zero Smog 2, Zero Smog E

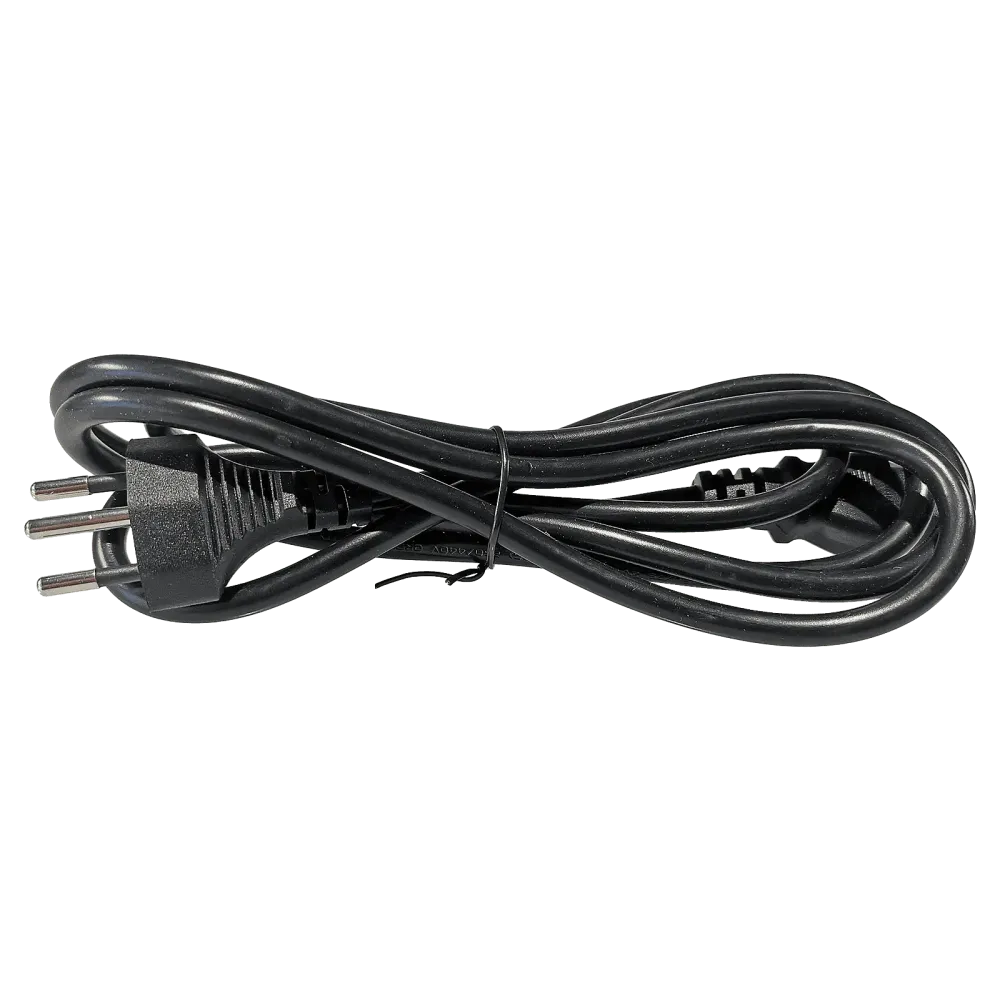

• CH Mains cable
