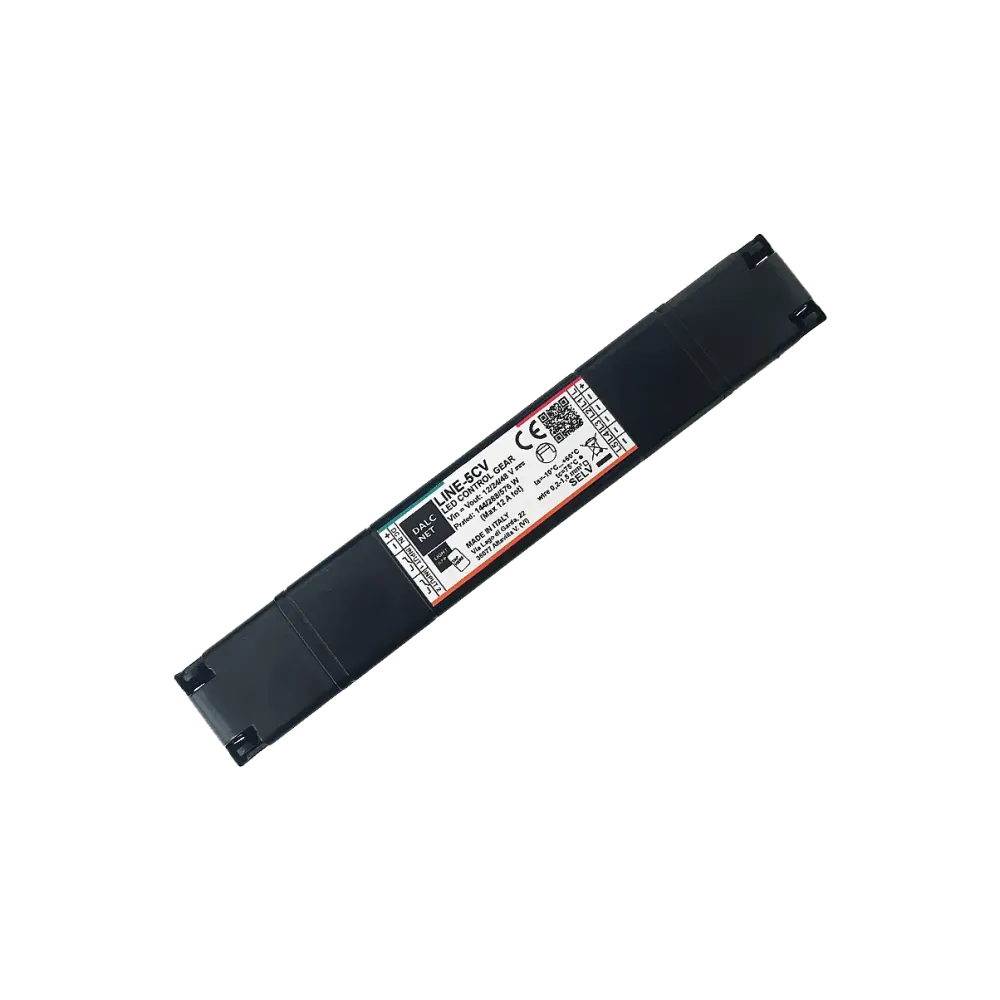

5 channel LED dimmer, constant voltage 12-48VDC, linear compact design

LINE-5CV is a 5-channel PWM (Pulse With Modulation) Constant Voltage (CV) LED dimmer that can be connected to a SELV power supply with constant voltage (12 ÷ 48) Vdc and is suitable for controlling loads such as LED strips and white, monochrome, Tunable White, RGB, RGB+W and RGB+TW LED modules at constant voltage and can be controlled by N.O. (Normally Open) buttons.

LINE-5CV can supply a maximum output current of 12A and has the following protective functions: Short circuit protection on the LED outputs, overvoltage protection, reverse polarity protection and input fuse.

With the Dalcnet LightApp© mobile application and a smartphone equipped with Near Field Communication (NFC) technology, it is possible to configure several parameters, including the dimming frequency, the dimming curve and the maximum/minimum brightness level when the device is switched off. Dalcnet LightApp© can be downloaded free of charge from the Apple APP Store and Google Play Store.

APPLE ANDROID

Technical data

• DIMMER LED
• Power supply: 12-24-48 Vdc
• Voltage output for LED strips and LED module
• WHITE, SINGLE-COLOR, DIM-TO-WARM, TUNABLE-WHITE, RGB, RGB+W and RGB+TW light control
• Local control: Up to two N.O. buttons (normally open)
• Device configuration via the Dalcnet LightApp© mobile application
• Constant voltage outputs for R loads
• PWM modulation can be set from 300 to 4000 Hz
• Parameters that can be set from the APP:
  • PWM frequency
  • Fade time
  • Power ON level
  • Push-ON level
  • Dimming speed
• Short-circuit protection on LED outputs
• Soft ON/OFF
• Gentle dimming of the brightness
• Extended temperature range
• 100% function test
• 5 year guarantee
