About the product

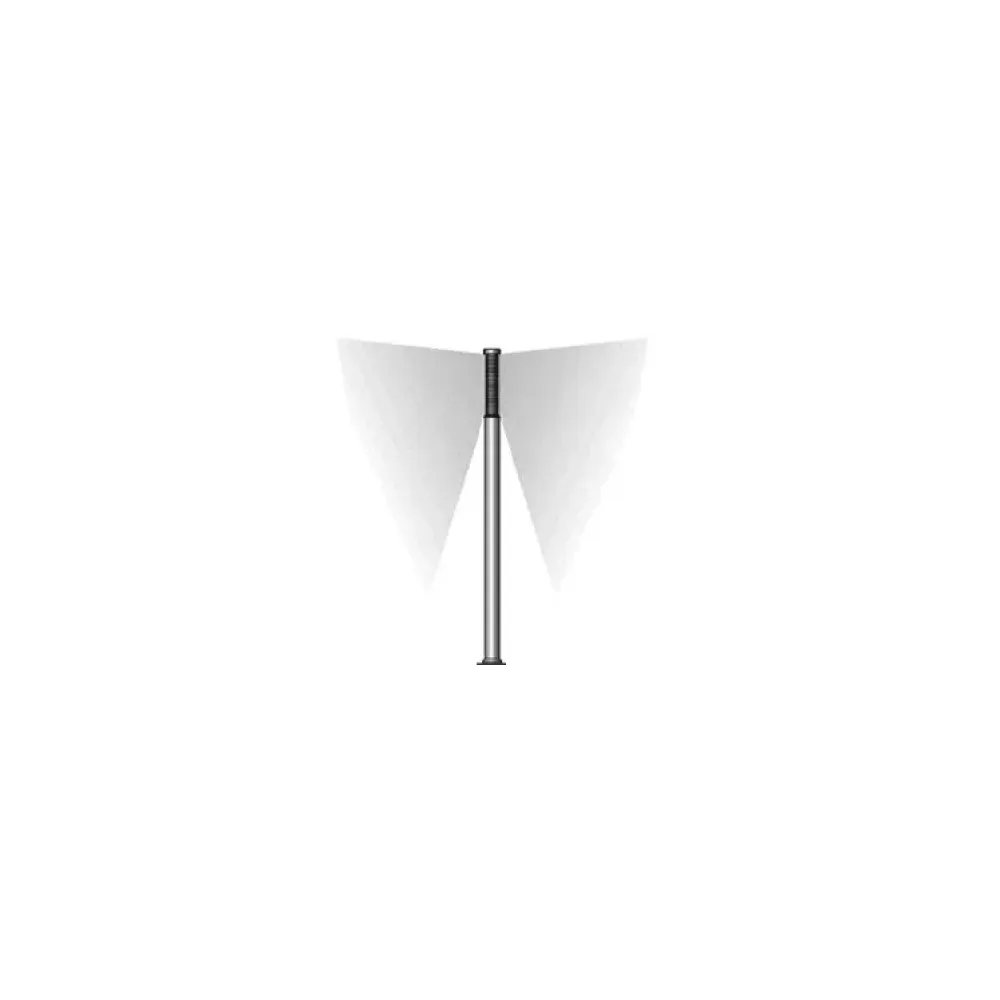

Maxima comes in two configurations: the first, suitable for residential installation, has a 370 mm lighting body and offers 4 different heights starting from 570 mm and reaching a maximum of 1600 mm. The second, also suitable for semi-urban and urban installation, has a 610 mm lighting body and heights ranging from 1200 mm to 3000 mm. Consisting of chrome-plated louvre reflectors, in addition to guaranteeing a diffuse emission and limiting glare, it actively participates in designing the luminaire in its shape. It is also available with screened louvres suitable for compliance with the Regulations on Light Pollution. The structure is supplied with a flange made with metal clamps necessary to guarantee its stability. The lamp body, firmly connected to the pole by means of a bayonet coupling, makes it easily removable during normal maintenance operations. Dali dimmable on request with extra charge.
Product specifications
| Assembly | ground installation |
| Source | LED |
| Source flux | 6342 lm |
| Fixture source | 2618 lm |
| Apparent efficiency | 41.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 3000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Absorbed power | 44 W |
| Power module LED | 42 W |
| Protection | IP65/IK08 |
| Body | Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy |
| Screen | transparent polycarbonate |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |
| Size | H 1200 x Ø 140 x Ø 187 mm |
| Net weight | 6.1 kg |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 425 mA |
| Control | DALI available on request |
| Specific wiring | included |
| Beam opening | shielded louvre 360° |
