Item ID: 40795.13051

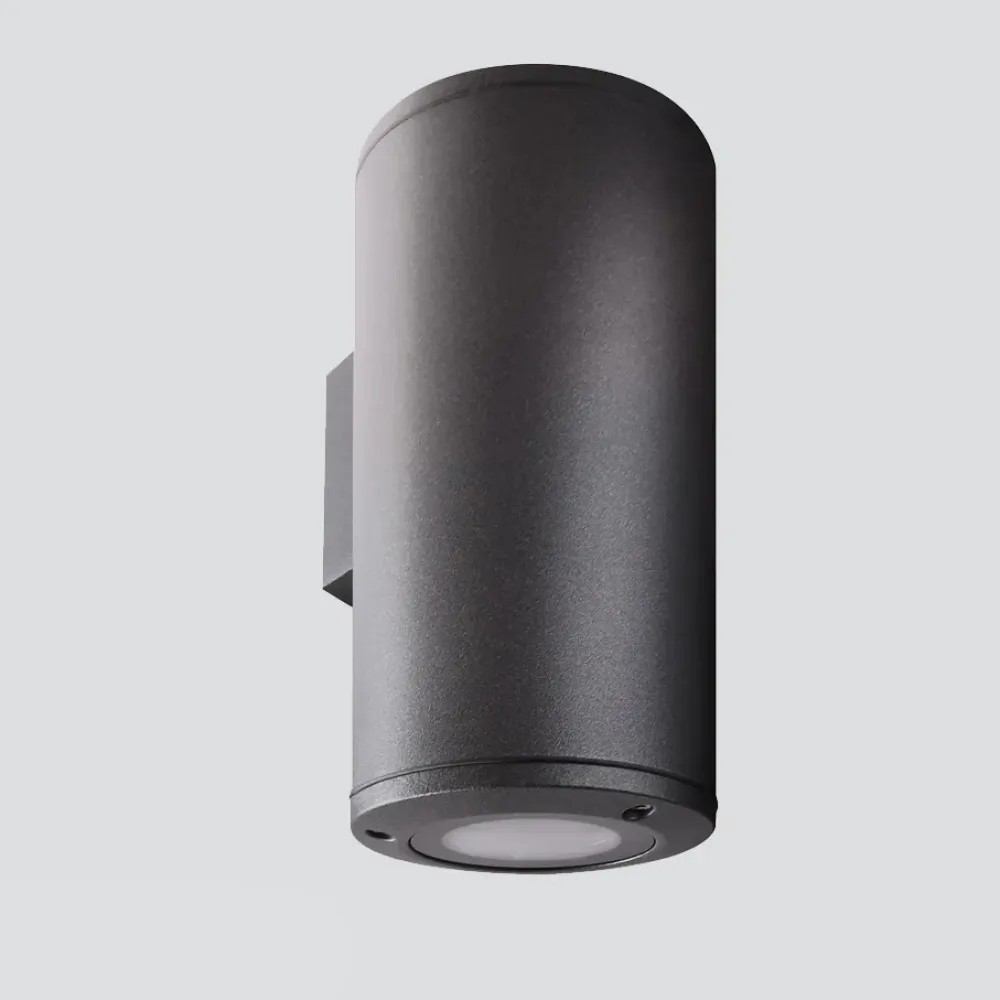

Up&Down Wall 7501W/ND3.WB-Wall - Wall luminaire DALI Single Emission - Built-in driver
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product
Wall luminaire configurable in single and double emission, ideal for grazing lighting of external facades. Up&Downd is equipped with various secondary optics for controlling the light flow, which allow design flexibility through different combinations of direct and indirect emission.
Product specifications
| Assembly | wall installation |
| Source flux | 2003 lm |
| Fixture source | 1661 lm |
| Apparent efficiency | 83.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| CCT LED | 4000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG0 |
| Source | LED COB |
| Absorbed power | 17 W |
| Power module LED | 15 W |
| Protection | IP66/IK08 |
| Body | die-cast aluminium |
| Screen | tempered extra-clear glass 6mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |
| Size | H 320 x L 193 x Ø 140 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 800 mA |
| Control | DALI-2 integrated |
| Beam opening | single wide flood/56° |
