Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product

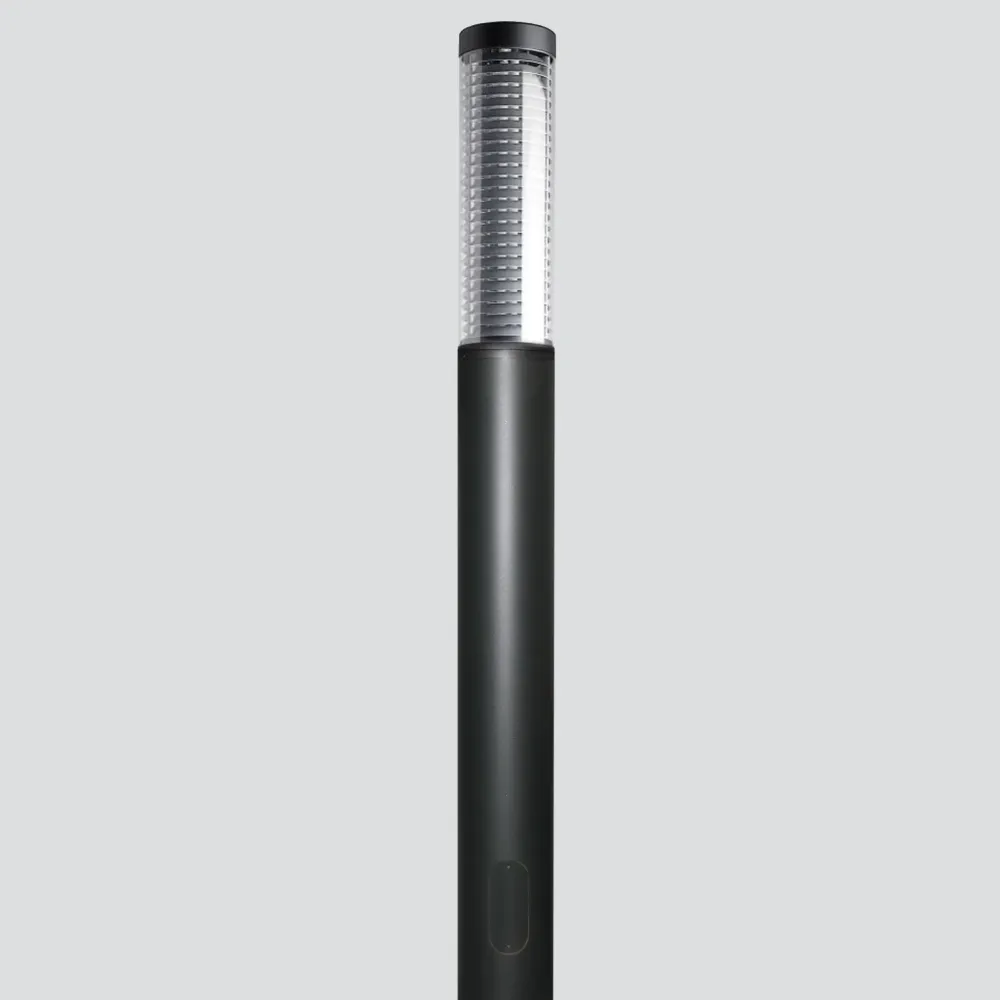

Pole characterised by a linear and sober design, available in four different heights: 2100 mm, 2600 mm, 3100 mm, 3600 mm. The diffuser in polycarbonate supplied standard can be either transparent or opal. Its capacity for 360° light diffusion makes Siluro an evolutionary, complete and extremely efficient product. Pole designed to offer lighting solutions not only for large spaces, but also for smaller residential areas guaranteeing luminous efficiency and minimum energy consumption. Dali dimmable on request with extra charge.
Product specifications
| Assembly | ground installation |
| Source flux | 5200 lm |
| Fixture source | 1900lm |
| Apparent efficiency | 37.00% |
| Insulation class | class I |
| Overvoltage protection | 4-6kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 4000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED |
| Absorbed power | 38 W |
| Power module LED | 36 W |
| Protection | IP65/IK08 |
| Body | Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy |
| Screen | transparent polycarbonate |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

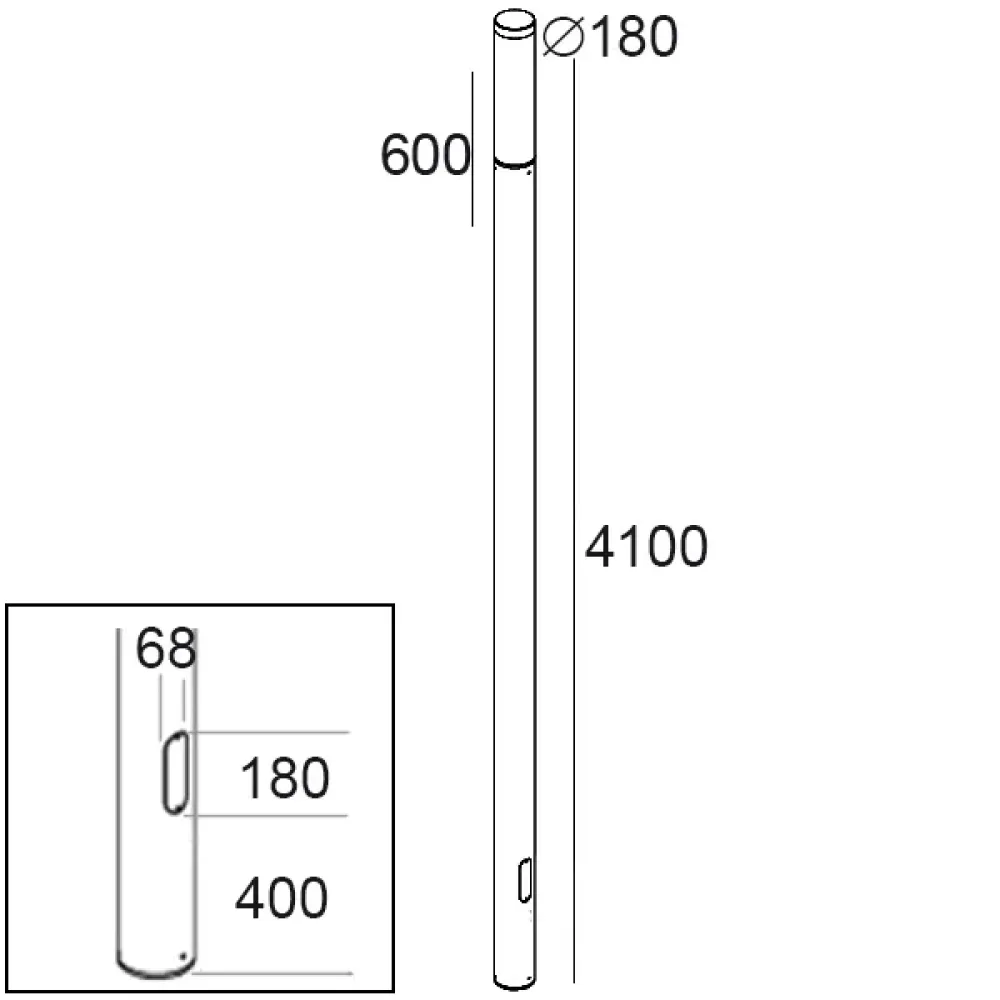

| Size | H 4100 x Ø 180 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 450 mA |
| Control | DALI available on request |
| Specific wiring | included |
| Beam opening | shielded/diffuse 360° |
