About the product

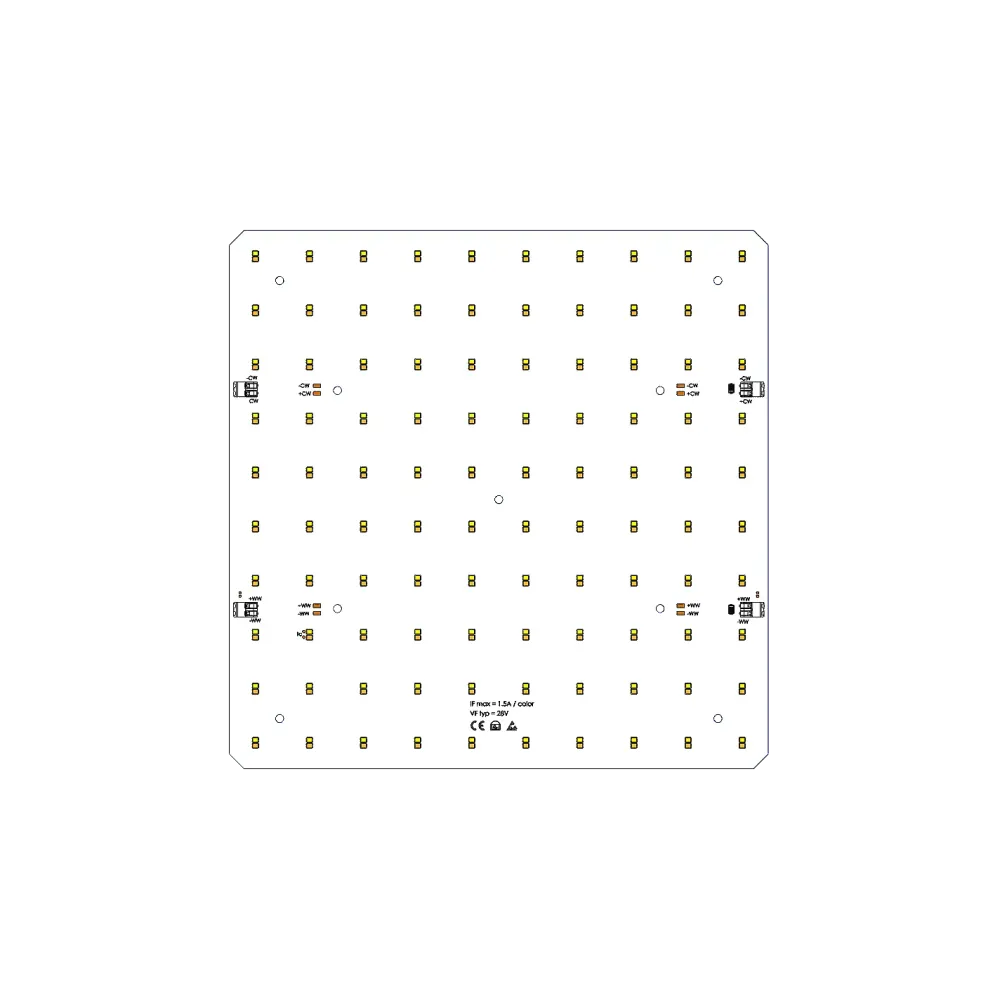

- Square Tunable White LED module with an adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Light color: warm white, cold white
- Color temperature: 2700K, 6500K
- Color rendering Ra: >90
- Color BIN: 3SDCM
- Typical luminous flux: 2850lm, 3070lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 27.5V
- Rated current type: 0.7A
- Nominal power typ.: 20W
- Dimension: 290x290mm
- Material: ALU
- LED: 200 Samsung LM281B+PRO LED (UG-Bin), LM80 tested
- Connections: 4x WAGO 2060-452 terminals (+WW, -WW, +CW, -CW)
- Radiation: 120°
Product specifications
| Operating mode | CC |
| PCB material | Aluminum |
| Application | Single Color, Tunable White |
| Colour temperature (K) | 2700, 6500 K |
| Light colour | Cold white|Warm white |
| Colour rendering Ra | 90 |
| Forward voltage | 27.5 V |
| Length | 290 mm |
| Width | 290 mm |
| Shape | Square |
| Luminous flux | 3070 lm |
