About the product

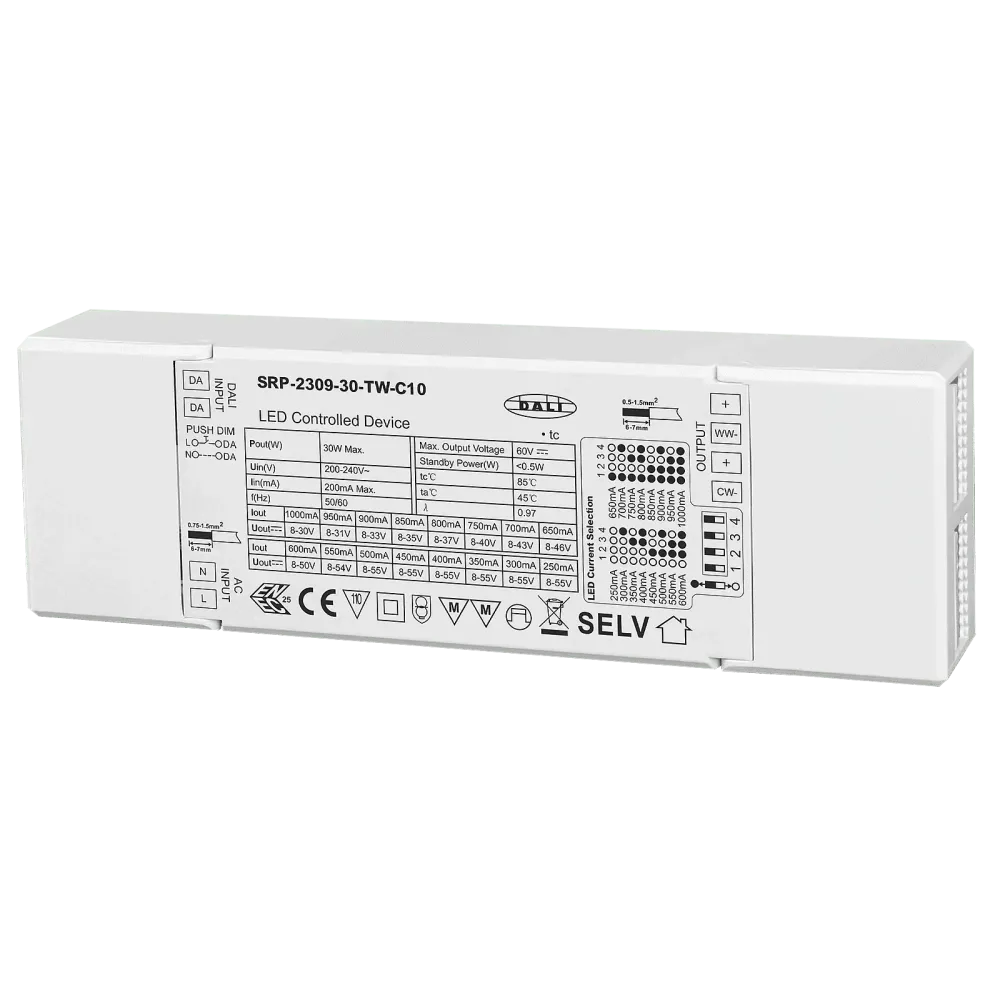

SRP-2309-30-TW-C10 is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI DT8.
Control
- DALI DT8, AC-PUSH
Application
- Tunable White
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitude dimming, PWM from 1%
Technical data
- Dimmable DALI DT8 LED driver for Tunable White
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALl-2 interface, DALI DT8 device
- Hybrid dimming process, gentle and deep dimming down to 0.1 %, flicker-free
- 2 channels constant current output, max. output power 30W
- Output current 250mA-1 000mA selectable via dip switch
- Standby power consumption less than 0.5W
- Class 2 power supply unit, fully insulated plastic housing
- High power factor and efficiency
- DALI DT8 device for controlling warm white and cool white output via a single DALI address
- Setting the color temperature according to the DALI specifications of Device Type 8, Color Type Tc.
- Compatible with universal DALI masters that support DT8 commands
- AC-PUSH dimmable
- Protection class IP20
- 5 year guarantee
- Dimensions: 170×53.4x28mm
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| Application | Tunable White |
| IP protection | IP20 |
| Height | 28 mm |
| Width | 53.4 mm |
| Length | 170 mm |
| Power | 30 W |
| Current setting | DIP switch |
| Control | DALI DT8, AC Push Dimming |
| Channels | 2 |
| Dimming type | Hybrid |
