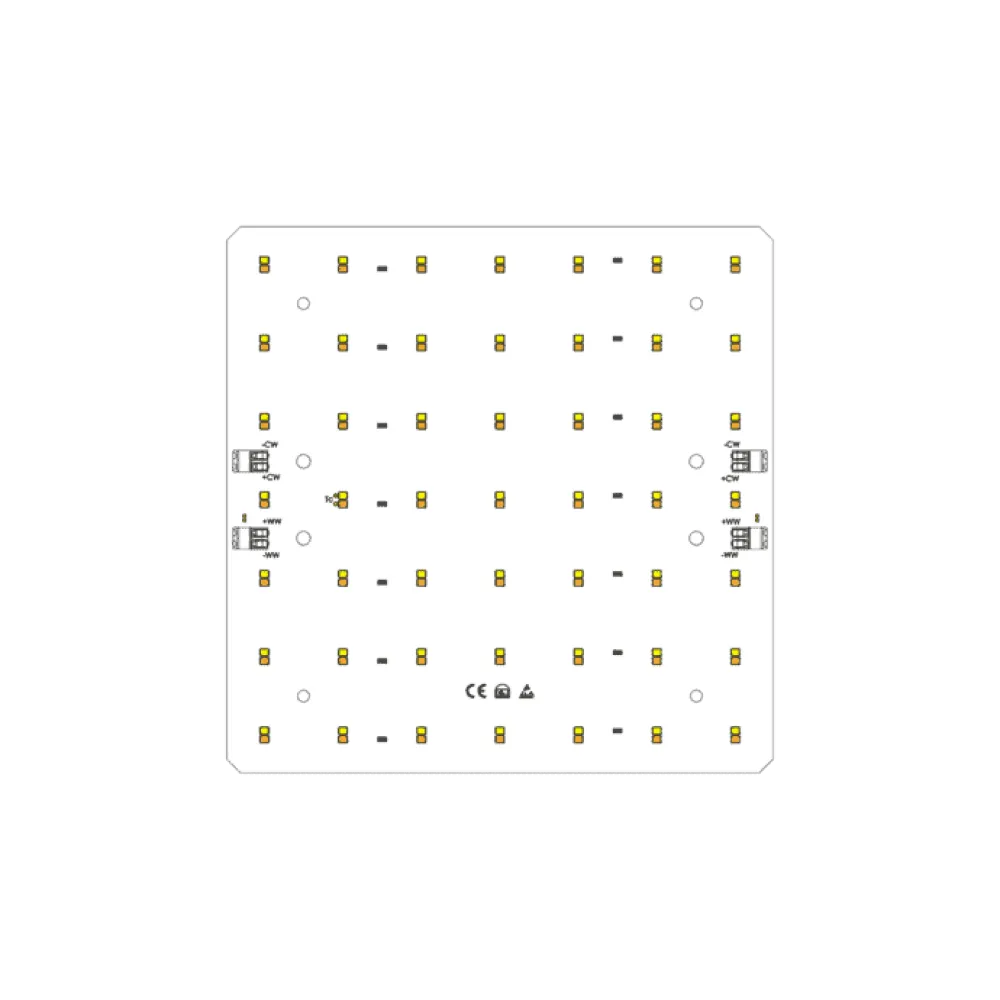

About the product
- Square Tunable White LED module with an adjustable colour temperature from 2700K to 6500K (= one print for 2700K or 6500K).
- This module can also be operated as a standard 2700K or 6500K version, as both colour temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- High colour rendering Ra >80
- Very narrow colour tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Light colour: warm white, cool white
- Colour temperature: 2700K, 6500K
- Colour rendering Ra: >80
- Colour BIN: 3SDCM
- Luminous flux typ.: 856lm, 924lm
- Operating mode: Constant voltage 24VDC
- Rated voltage: 24V
- Rated current typ.: 0.25A
- Rated power typ.: 6W
- Dimension: 200x200mm
- Material: FR-4
- LED: 98 pcs Samsung LM281B+PRO LED (UG-Bin), LM80 tested
- Connections: 4x WAGO 2059-302 terminals (+WW, -WW, +CW, -CW))
- Radiation: 120°
Product specifications
| Application | Single color, Tunable white |
| Light colour | Cool white|Warm white |
| PCB material | FR-4 |
| Luminous flux | 924 lm |
| Length | 200 mm |
| Shape | Square |
| Colour rendering Ra | 80 |
| Colour temperature (K) | 2700-6500 K |
| Width | 200 mm |
| Operating mode | 24 V DC |
| Manufacturer | Lumesi |
