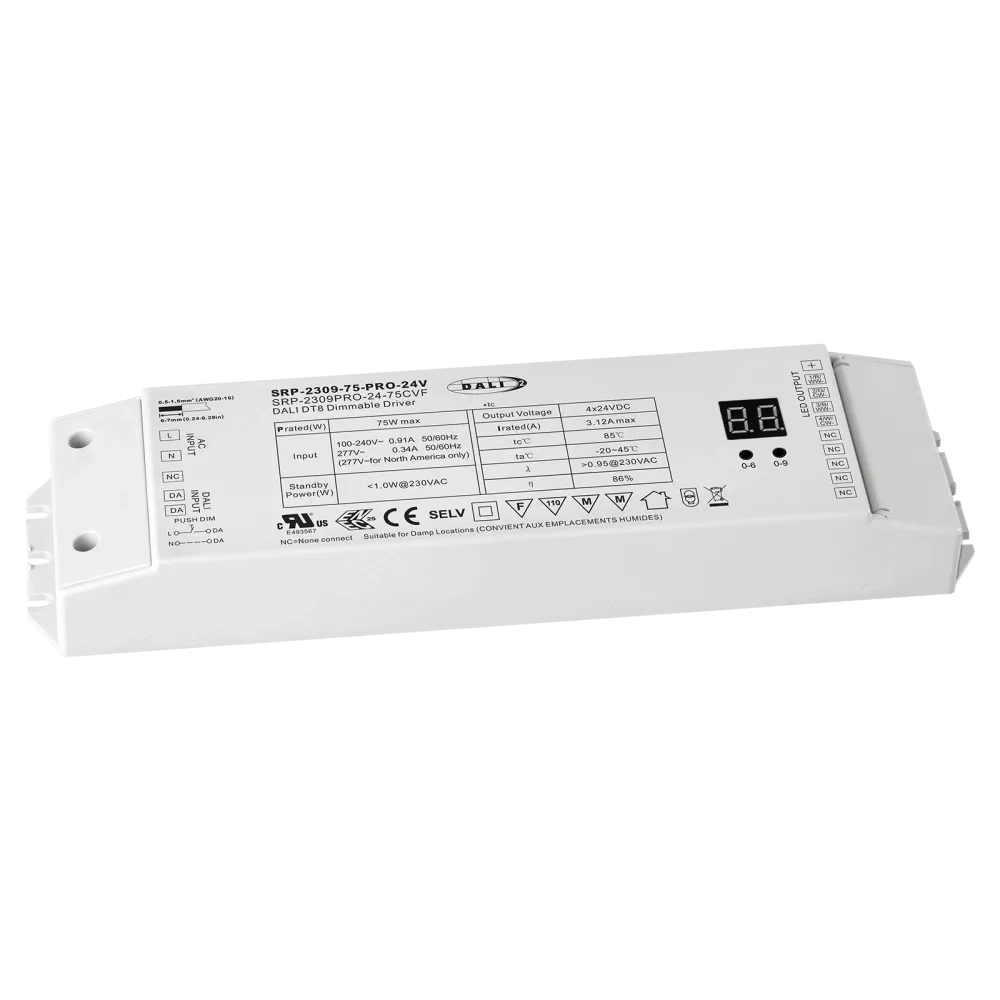

75W DALI2 DT8, 4in1, LED DRIVER 24VDC

SRP-2309-75-PRO-24V with PWM output and integrated DALI DT8 interface is ideal for operating constant voltage LED applications such as LED strips. One unit for all lighting situations, TW, Single Color, RGB and RGBW.

Control

DALI2 DT8, AC push

Application

Tunable White, RGBW, RGBW, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Dimming method: PWM, 1.5kHz

Technical data

• Dimmable 4 in 1 DALI2 DT8 power supply unit (primary N, Tc (Tunable White), XY coordinate, RGBW)
• 100-277VAC input voltage range
• 4-channel DC24V constant voltage outputs
• Built-in DALI2 interface, DALI DT8 unit, the unit can be controlled via a DALI address
• Colour control according to DALI DT8 specifications
• Complies with DALI IEC 62386-209-:2011 standard
• Generally compatible with DALI masters that support DT8 commands
• Compatible with AC push dimmers
• IP20 protection class, suitable for indoor lighting projects
• Protection class II driver without earth connection
• Plastic housing
• Operating temperature range from -20°C to +45°C
• Dimension 244 x 64 x 32mm
• 5 years warranty
