About the product

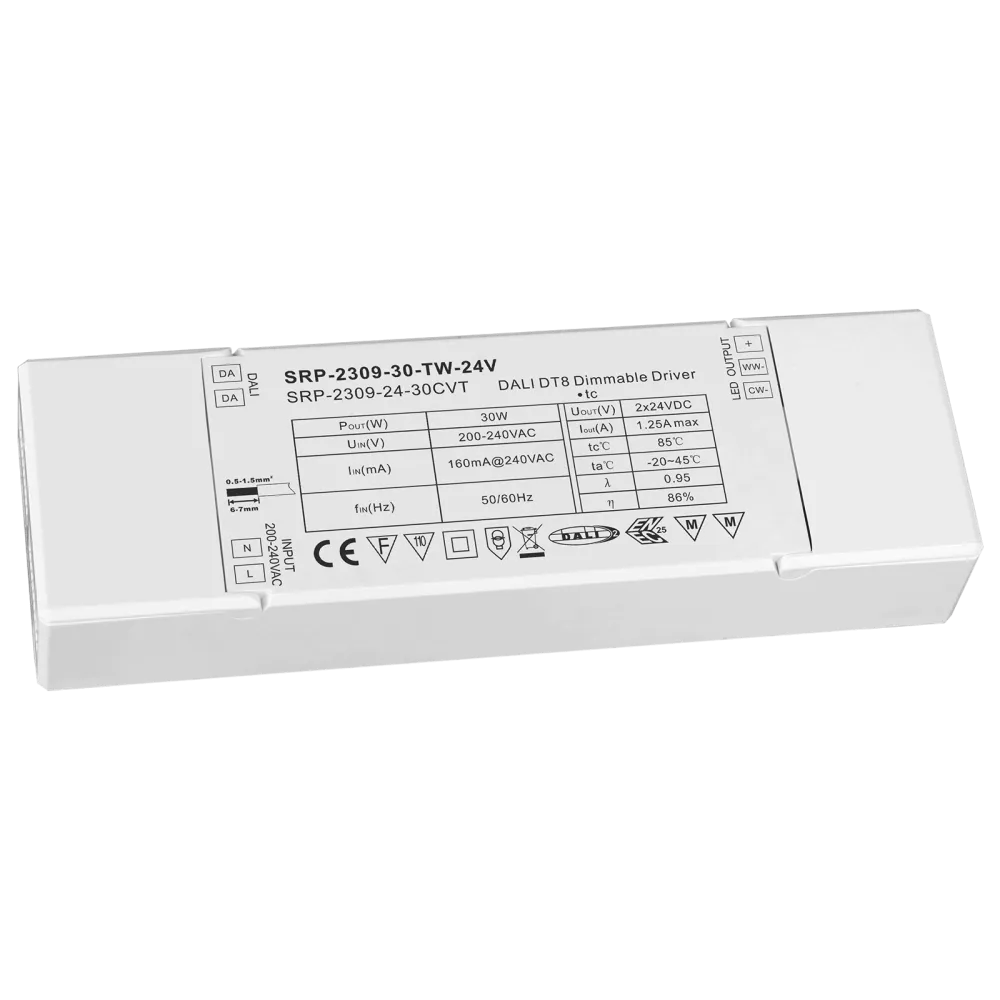

30W DALI2 DT8 DIMMABLE LED DRIVER
Technical data
- DT8 dimmable 2-channel TW power supply unit
- 200-240VAC wide input voltage range
- 2-channel 24VDC constant voltage output (total output power up to 30W)
- Output current max.: 1.25A
- Class 2 power supply, completely insulated plastic housing
- High power factor and efficiency
- Built-in DALI2 interface, DALI DT8 device, the device can be controlled via a DALI address
- Colour control according to DALI DT8 specifications
- Complies with DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters supporting DT8 commands
- IP20 protection class, suitable for indoor lighting projects
- Dimension: 170 x 53.4 x 28mm
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Product series | SRP |
| Input voltage range (VAC) | 200-240 V |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 28 mm |
| Width | 53.4 mm |
| Length | 170 mm |
| Application | Tunable white |
| Dimming method | PWM |
| Control | DALI2, DALI, DALI DT8 |
| Channels | 2 |
| Output current | 1.25 A |
| Power | 30 W |
| Manufacturer warranty | 5 years |
