About the product

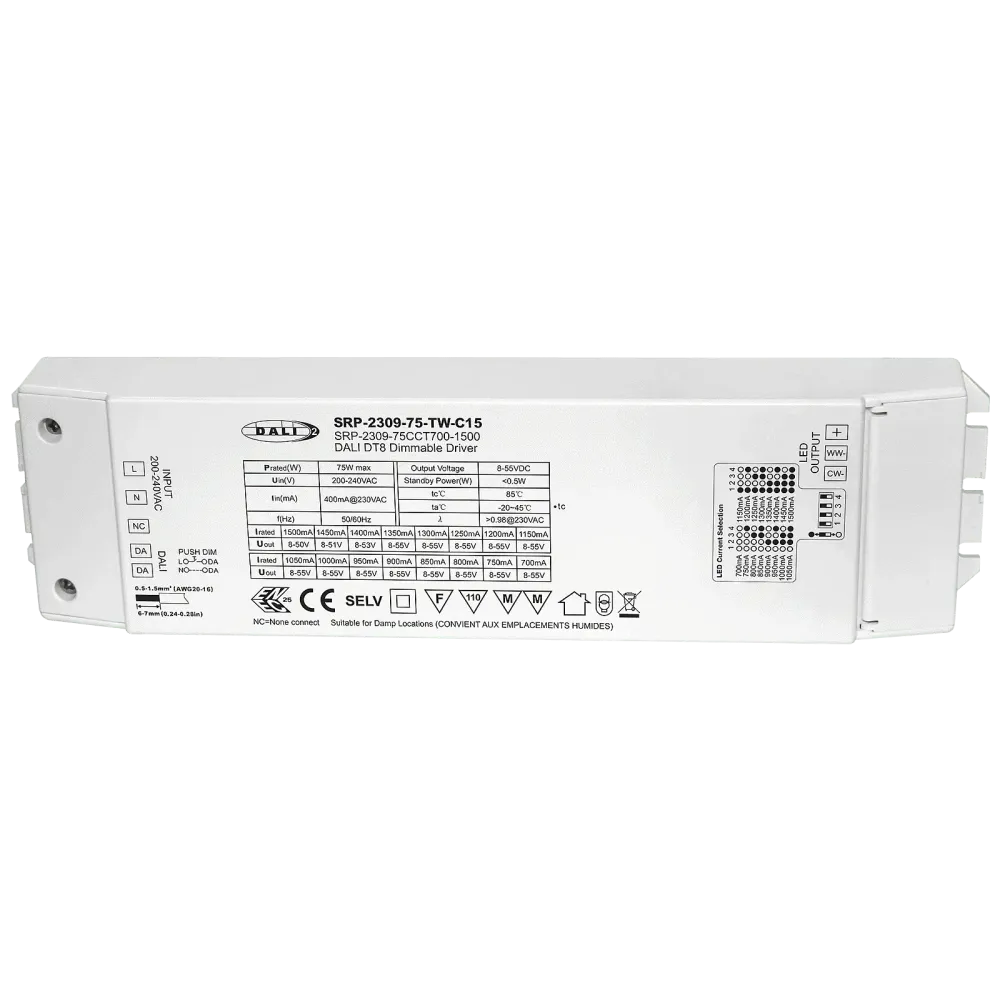

SRP-2309-75-TW-C15 is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI DT8.
Control
- DALI DT8
Application
- Tunable White
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: Hybrid (PWM+CCR) dimming
Technical data
DALI DT8 Dimmable LED driver for tunable white
. AC-Push dimmable
. In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
. Amplitude dimming (PWM dimming below 1%), flicker-free
. Smooth and deep dimming to 0.1%
. 2 channels constant current output, max. output power 75W
. Dip switch for selecting the operating current from 700mA-1500mA
. Class 2 power supply unit, fully insulated plastic housing
. High power factor and efficiency
. DALI DT8 device for controlling warm white and cold white output via a single DALI address
. Color temperature setting according to the DALI specifications of Device Type 8, Color Type Tc.
. Compatible with universal DALI masters that support DT8 commands
. IP20 protection rating
. 5 year guarantee
. Dimensions 244 x 64 x 32mm
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp, screw clamp |
| Manufacturer's warranty | 5 years |
| Application | Tunable White |
| IP protection | IP20 |
| Control | DALI DT8 |
| Width | 64 mm |
| Power | 75 W |
| Length | 244 mm |
| Current setting | DIP switch |
| Channels | 2 |
| Height | 32 mm |
| Dimming type | Hybrid |
