About the product

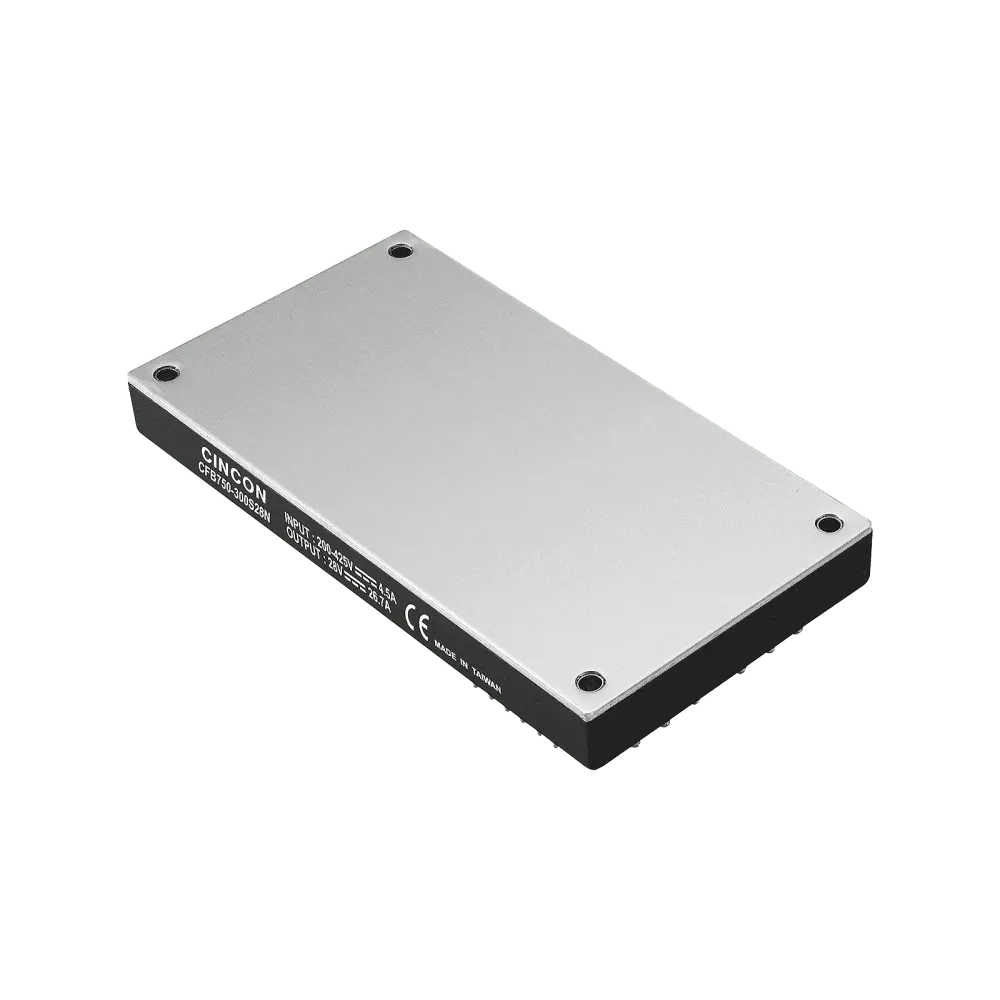

The CFB750-300S series is an industry standard DC-DC converter with up to 750 watts output power. It has a high input voltage range of 200 to 425VDC (300VDC nominal) with a reinforced 3000Vac isolation.
Thanks to the high efficiency of up to 91%, operation in the
temperature range of -40°C to 85°C is possible. Very low power consumption in idle mode (10mA) makes the converter the ideal solution for energy-critical system applications.
Technical data
- 750W output isolated
- Efficiency 90%
- Fixed switching frequency
- Input undervoltage protection
- Overtemperature protection
- Overcurrent, overvoltage protection
- Remote On/Off
- Industrial full brick housing
- Complies with UL60950-1
- Insulation voltage 3000Vac
- 2-year guarantee
- Manufacturer Cincon
Product specifications
| Output voltage (VDC) | 48 V |
| Additional functions | 10VDC auxiliary output, parallel switchable, remote ON/OFF, voltage trim |
| I/O isolation | 3000 VDC |
| Output current | 15600 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Nominal input voltage (VDC) | 300 V |
| Height | 12.7 mm |
| Length | 116.8 mm |
| Power | 750 W |
| Application | ITE/AV |
| Manufacturer | Cincon |
| Width | 61 mm |
| Design | Fullbrick |
