About the product

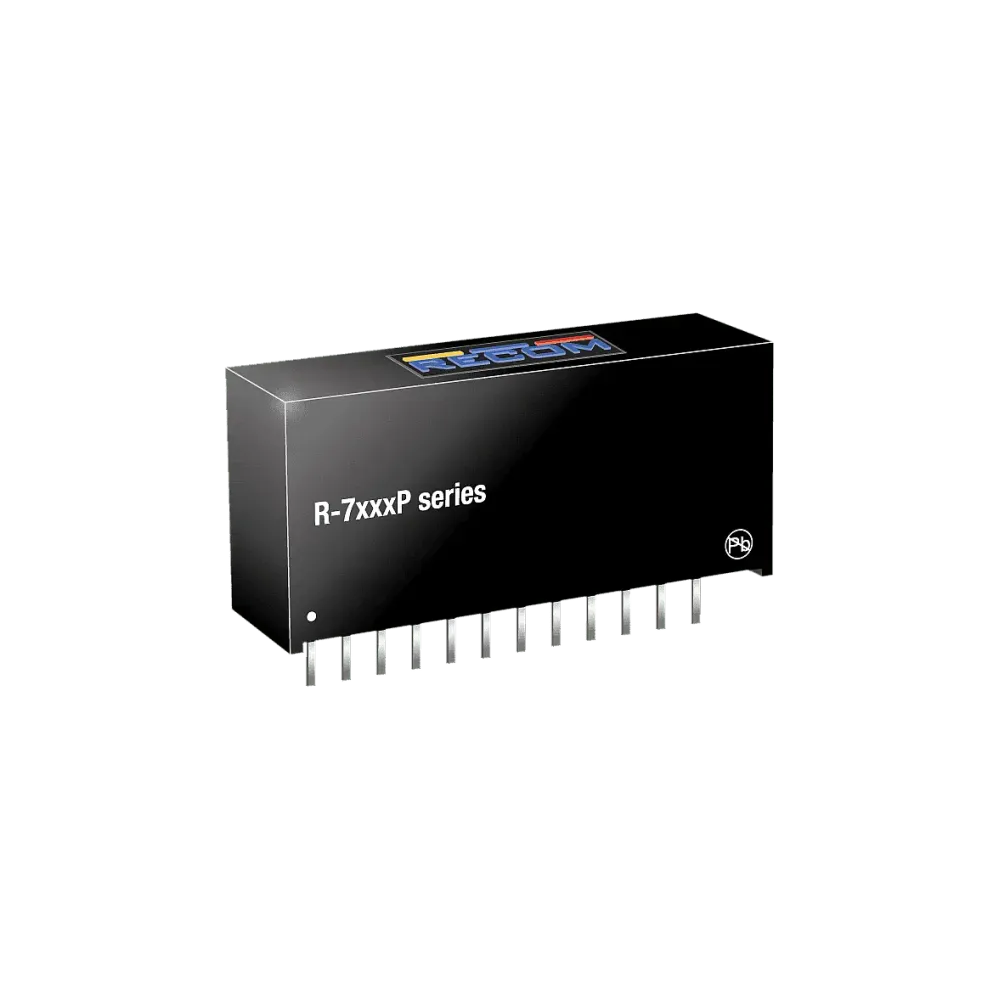

The R-7xxx series is a high performance integrated switching regulator (ISR) in a 12-pin SIP package (single in-line package) with 2.5V to 17V, 2Amp to 4Amp. The synchronous rectified design offers an excellent efficiency of up to 97%. Short-circuit protection reduces the short-circuit input current to below 50mA.
Technical data
- Not isolated
- Synchronous rectification
- Adjustable output voltage
- 2, 3, 4Amp adjustable positive step-down regulator with integrated switching regulator
- Overload protection
- Permanent short-circuit protection
- Efficiency of up to 97
Product specifications
| Height | 15 mm |
| Design | SIP12 |
| I/O isolation | not isolated |
| Length | 32.2 mm |
| Width | 9.1 mm |
| Output current | 3000 mA |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Regulated |
| Power | 36 W |
| Manufacturer | Recom |
| Output voltage (VDC) | 12 V |
| Output voltage range (VDC) | 10-14 V |
