About the product

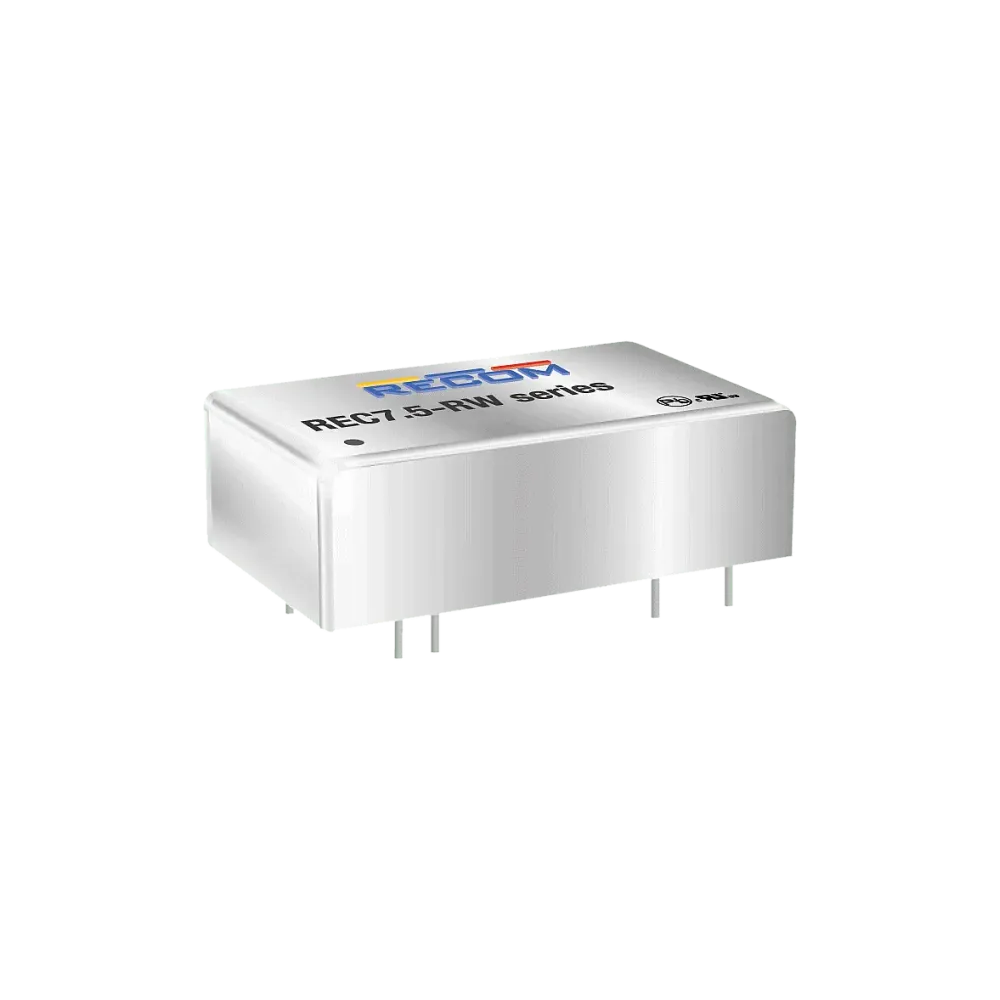

The REC7.5-xxxxSRW/DRW series offers single and dual regulated outputs in a DIP24 package with 1kV, 2kV or 3kV options and is suitable for higher power industrial or medical applications. Remote on/off control is possible with the /CTRL option and SMD pinning is offered with the /SMD option. The converters can deliver 140% rated power for short periods to handle applications with large capacitive loads or high starting currents.
Technical data
- 7.5W DIP24 housing
- 1KVDC, 2KVDC and 3kVDC insulation options
- Approved for medical applications (/H)
- UL and EN safety approvals
- Continuous short-circuit protection (power limitation)
- 5-sided shielded metal housing
- Complete SMD design
- 2 housing options
- Option for remote pins
- Efficiency up to 86
Product specifications
| Length | 32 mm |
| Design | DIP24 |
| Output current | +250/-250 mA |
| Power | 7.5 W |
| Height | 10.5 mm |
| Width | 20.3 mm |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Output voltage (VDC) | 15 V |
| Manufacturer | Recom |
| I/O isolation | 2000 VDC |
