About the product

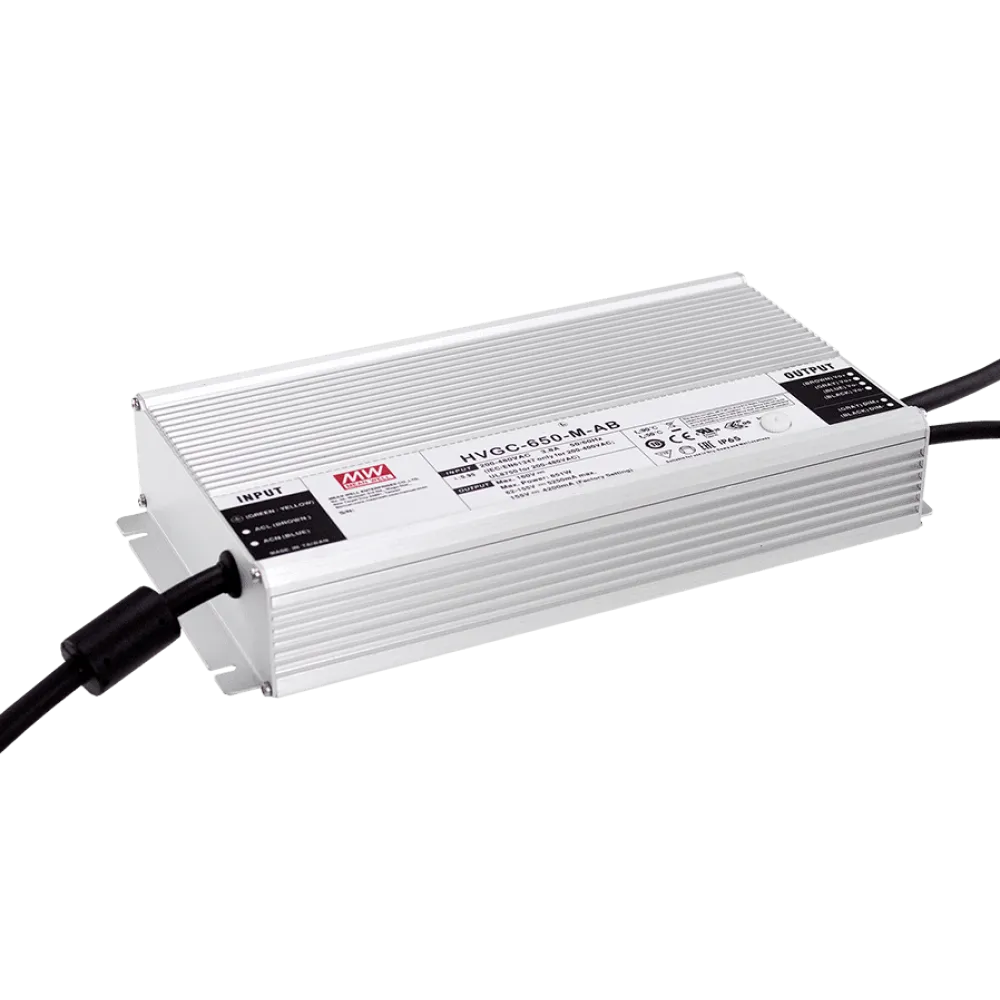

HVGC-650 series is a 650W LED AC/DC Driver featuring the constant power mode output. With its wide range input from 180 to 528Vac it is suitable for 3-phase input without neutral line to replace HID lamps.
Technical data
- Universal AC Input 180 to 528Vac
- Constant Power Design
- Output Voltage Region 24 – 58Vdc
- Full Power Current range 11200mA – 14000mA
- Current adjustable range 5600 – 14000mA
- Dimension 280 x 144 x 48.5mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 650 W |
| Output voltage range (VDC) | 24-58 V |
| Output current | 5600-14000 mA |
| Input voltage range (VAC) | 200-480 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Connection | Cable |
| IP protection | IP67 |
| Height | 48.5 mm |
| Width | 144 mm |
| Length | 280 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V |
| Product series | HVGC |
