About the product

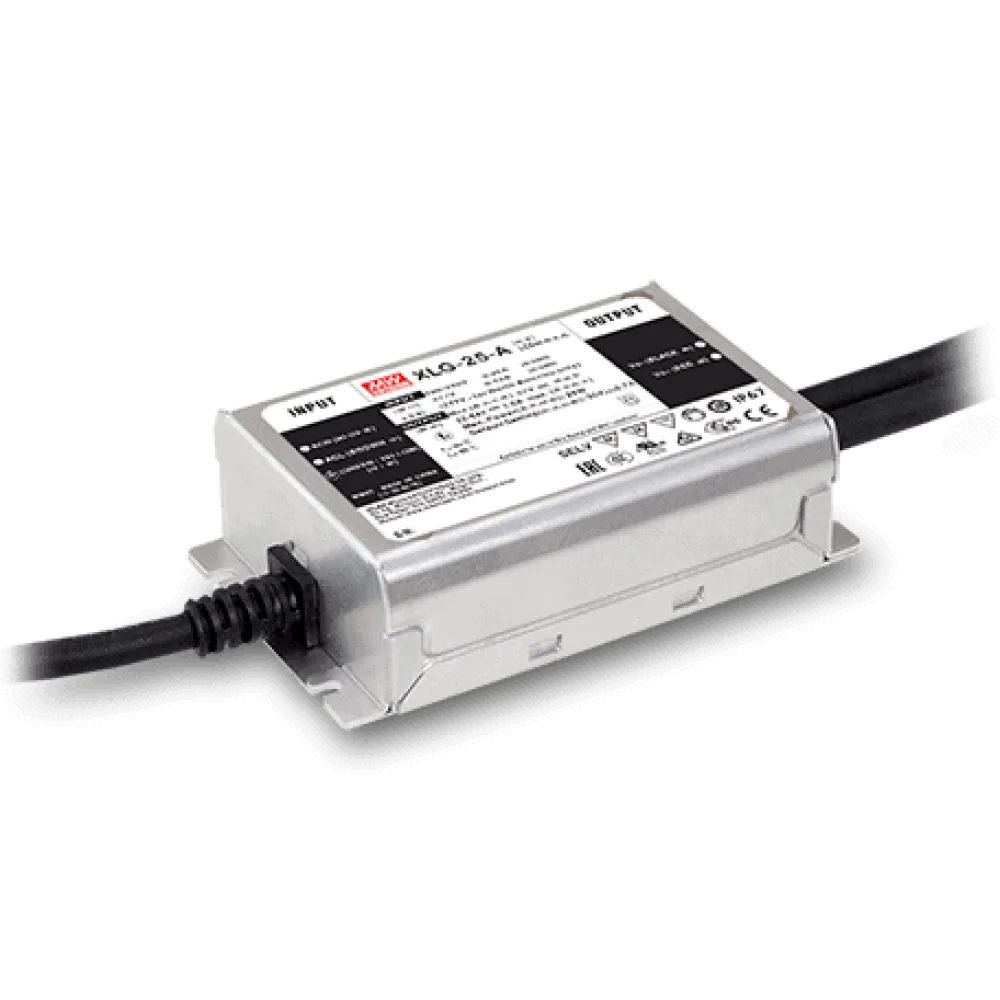

XLG-25 series is a 25W LED AC/DC Driver featuring the constant power mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
Technical data
- Universal AC Input 90 to 305Vac
- Constant Power Design

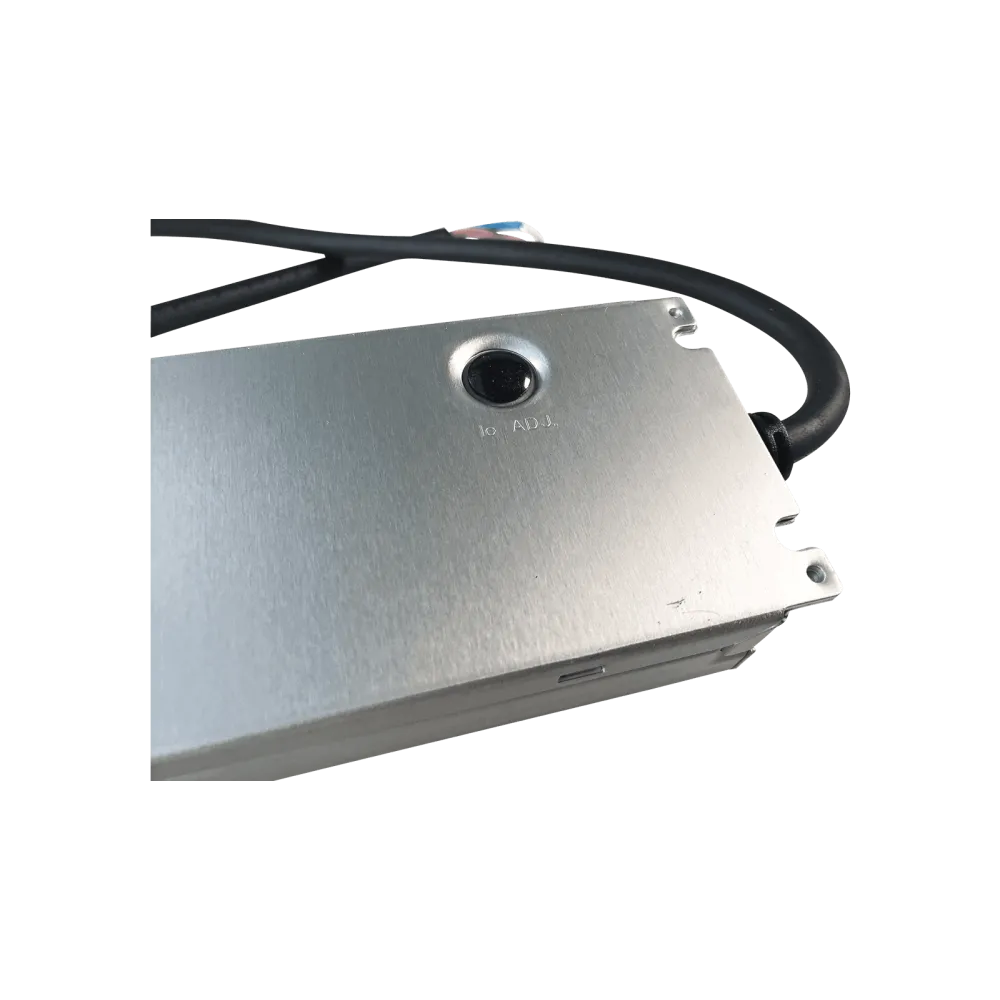

- Current adjustable via built-in potentiometer
- Output Voltage Region 22 – 54Vdc
- Current adjustable range 250 – 1050mA (factory setting 700mA)
- Built-in 3in1 dimming function (0-10V, PWM signal and resistance)
- Dimension 105 x 63 x 30mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Power | 25 W |
| Output voltage range (VDC) | 22-54 V |
| Output current | 250-1050 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Cable |
| IP protection | IP67 |
| Height | 30 mm |
| Width | 63 mm |
| Length | 105 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V |
| Product series | XLG |
