About the product

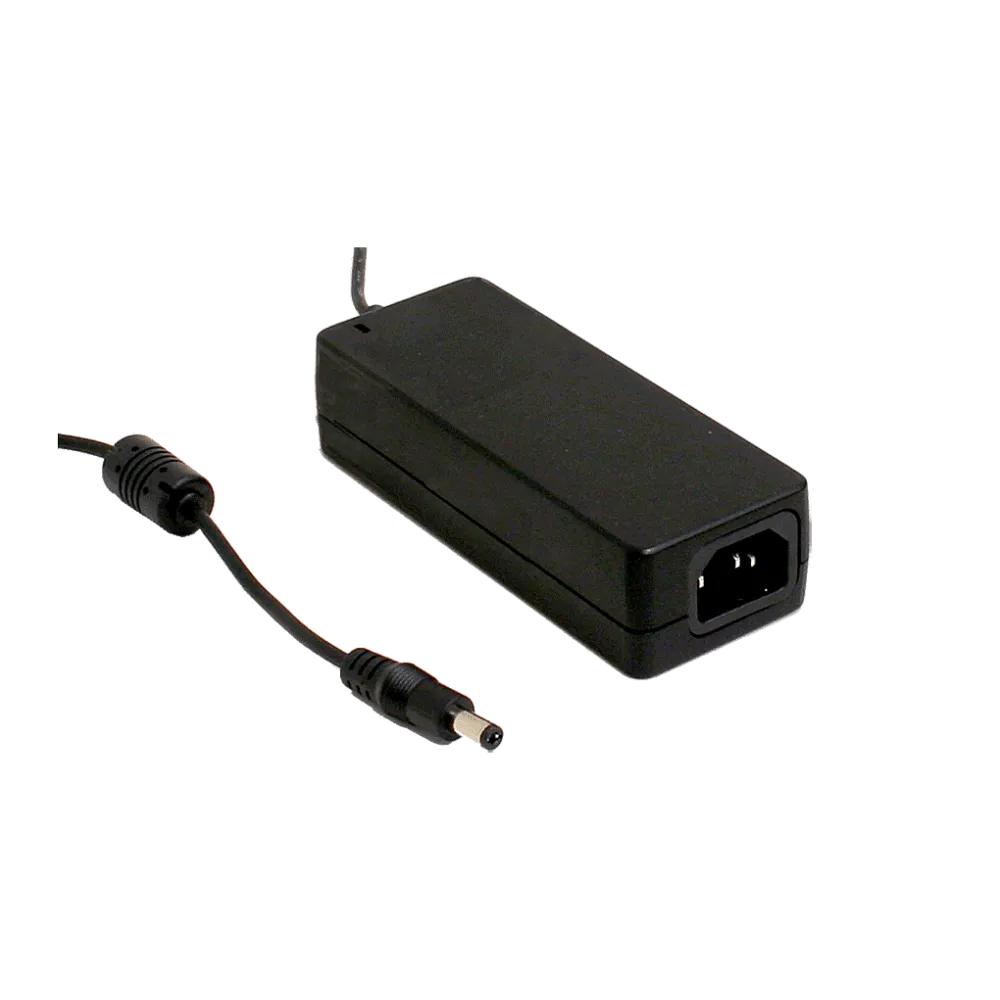

60W Medical Desktop Adaptor 48V/1.25A
Technical data
- Universal AC input 80 to 264Vac
- 3 pole AC inlet IEC320-C14
- DC plug 2.1 x 5.5 x 11mm
- Medical Safety Approved (2xMOPP between primary to secondary)
- Leakage current 100µA
- Energy efficiency level VI (except 5-9V for Level V)
- No load power consumption 0.1W
- Class I power unit (with earth pin)
- Fanless design with -30° to +60°C working temperature
- Dimension 125 x 50 x 31.5mm (L x W x H)
Product specifications
| Output voltage (VDC) | 48 V |
| Power | 60 W |
| Application | Medical |
| Efficiency level | VI |
| DC connector | 2.1x5.5x11 mm |
| Protection class | Class I |
| Additional functions | AC Protective earth connected to secondary side DC- |
| Manufacturer | MEAN WELL |
