About the product

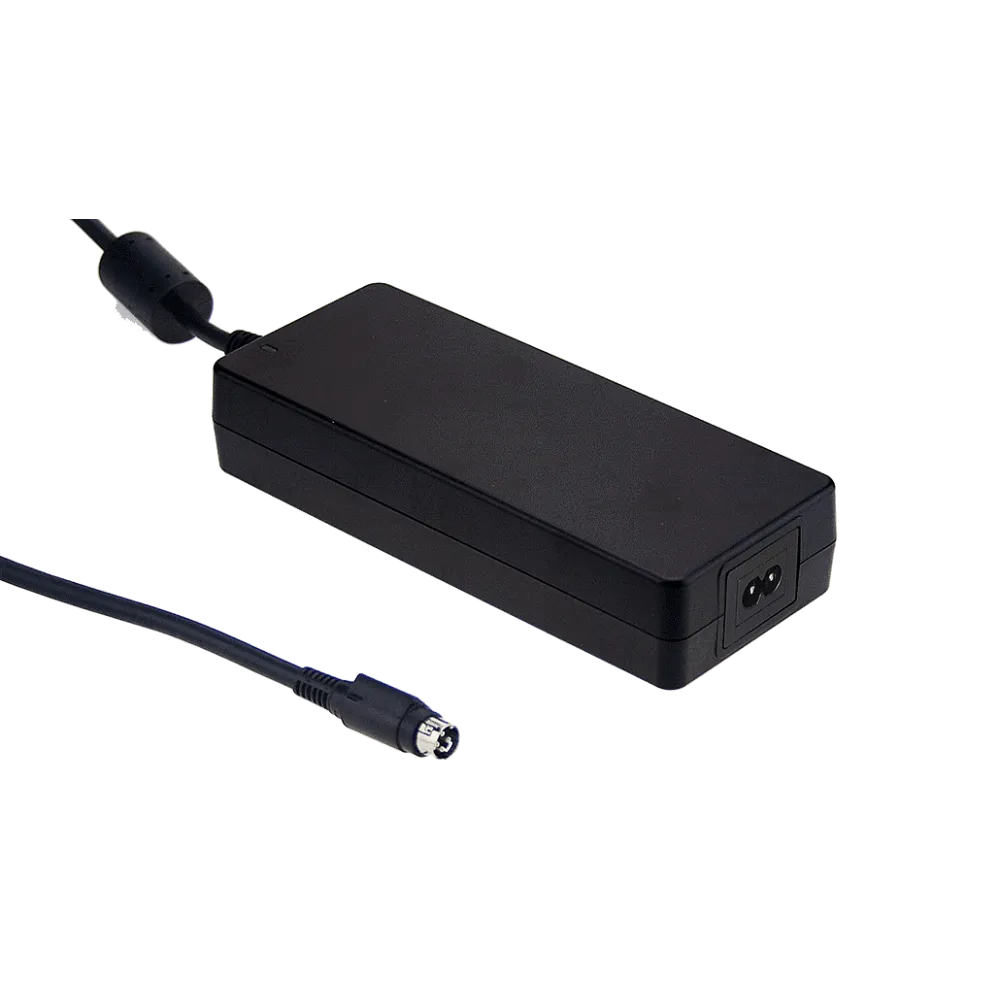

144W Medical Desktop Adaptor 15V/9.6A
Technical data
- Universal AC input 80 to 264Vac
- 2 pole AC inlet IEC320-C8
- DC plug Power DIN 4pin with lock type
- Medical Safety Approved (2xMOPP between primary to secondary)
- Leakage current 100µA
- Energy efficiency level VI
- No load power consumption 0.15W
- Class II power unit (without earth pin)
- Fanless design with -30° to +70°C working temperature
- Dimension 175 x 72 x 35mm (L x W x H)
Product specifications
| Output voltage (VDC) | 15 V |
| Power | 144 W |
| Application | Home Healthcare, Medical |
| Efficiency level | VI |
| DC connector | Power DIN 4P |
| Protection class | Class II |
| Manufacturer | MEAN WELL |
