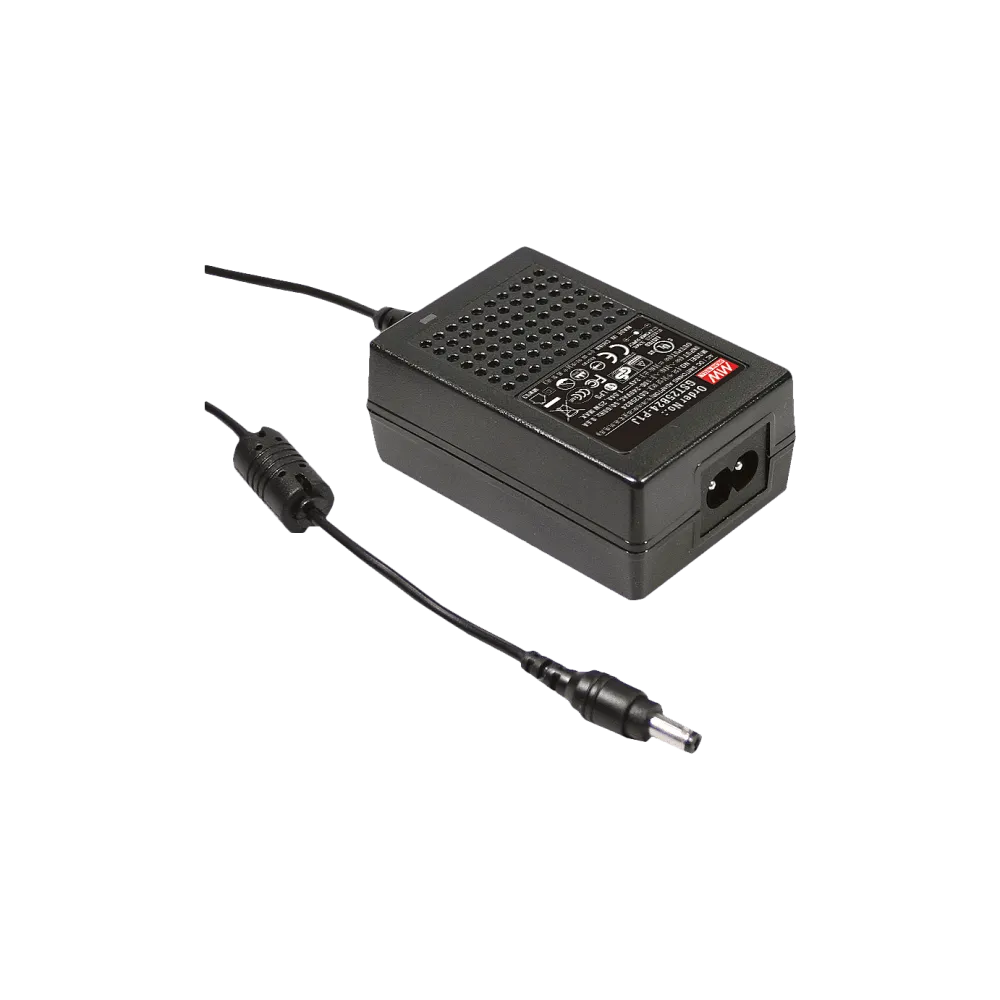

25W Medical Desktop Adaptor 15V/1.66A
25W Medical Desktop Adaptor 15V/1.66A

Item ID: 3786

25W Medical Desktop Adaptor 15V/1.66A

Delivery at your place between May 21 and Jun 25 2025
Add to cart

About the product

25W Medical Desktop Adaptor 15V/1.66A

Technical data

  • Universal AC input 80 to 264Vac
  • 2 pole AC inlet IEC320-C8
  • DC plug 2.1 x 5.5 x 11mm
  • Medical Safety Approved (2xMOPP between primary to secondary)
  • Compliance to Home Healthcare regulation ES60601-1-11
  • Leakage current <50µA
  • Energy efficiency level VI (except 5-9V for Level V)
  • No load power consumption <0.1W
  • Class II power unit (without earth pin)
  • Fanless design with -30° to +60°C working temperature
  • Dimension 79 x 54 x 33mm (L x W x H)

Product specifications

Output voltage (VDC) 15 V
Power 25 W
Application Home Healthcare, Medical
Efficiency level VI
DC connector 2.1x5.5x11 mm
Protection class Class II
Manufacturer MEAN WELL
