About the product

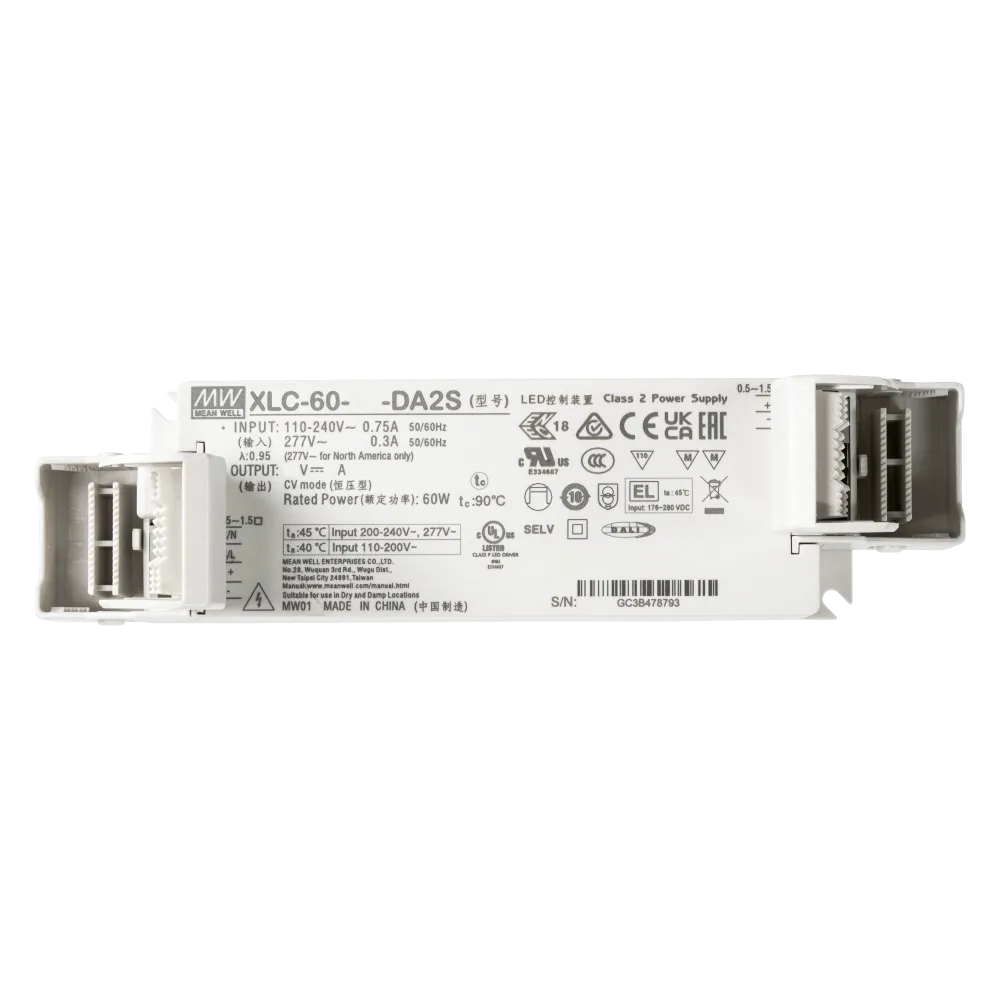

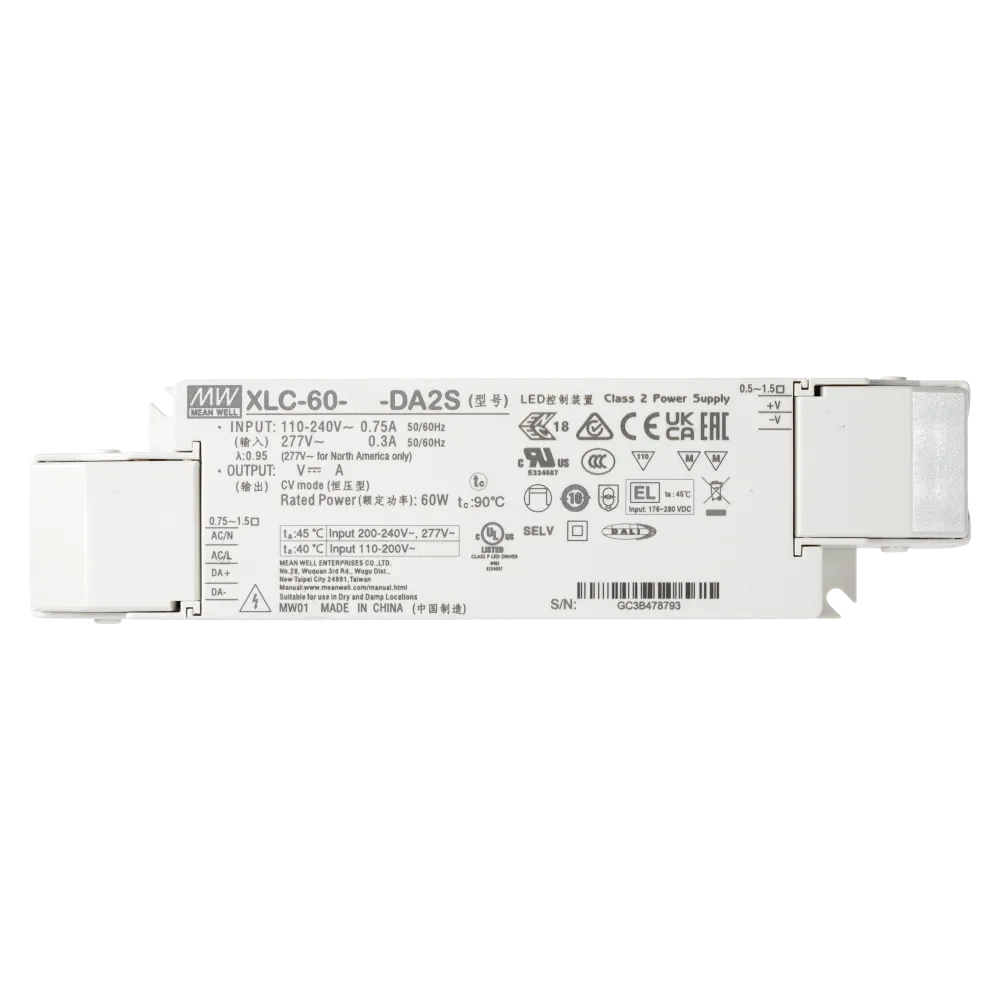

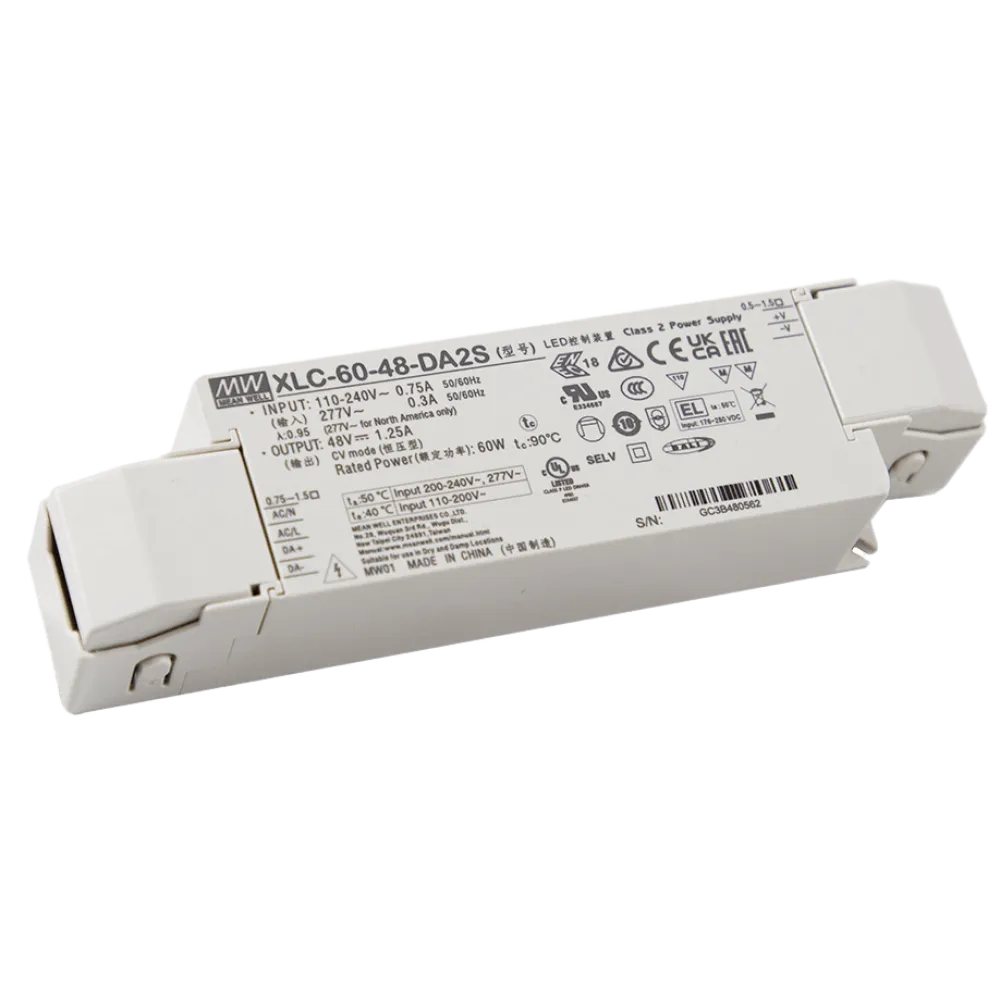

XLC-60 Series is a 60W constant voltage LED driver with PWM output. It can operate from 110 to 305Vac and 176 to 280Vdc. Thanks to high efficiency up to 90%, it is able to operate for -25°C to 90°C case temperature under free air convection. XLC-60 is designed based on latest safety regulations with DALI and AC Push dimming which provides design flexibility for LED Lighting applications.
Independent type
Technical data
- Constant voltage output
- DALI 2.0 and AC Push dimming
- Minimum dimming level 1%
- PWM frequency 3.2kHz
- Plastic housing with class II/2 and PFC design
- Flicker free, complying with IEEE1789/ErP
- Standby power consumption <0.5W
- Meet emergency lighting (EL) application
- 5 years warranty
Product specifications
| Power | 60 W |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | EL mark |
| Connection | Push-in terminal |
| Height | 32 mm |
| Width | 45 mm |
| Length | 176 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | DALI DT6, DALI2, DALI, AC Push Dimming |
| Channels | 1 |
| Efficiency | 88.00% |
