About the product

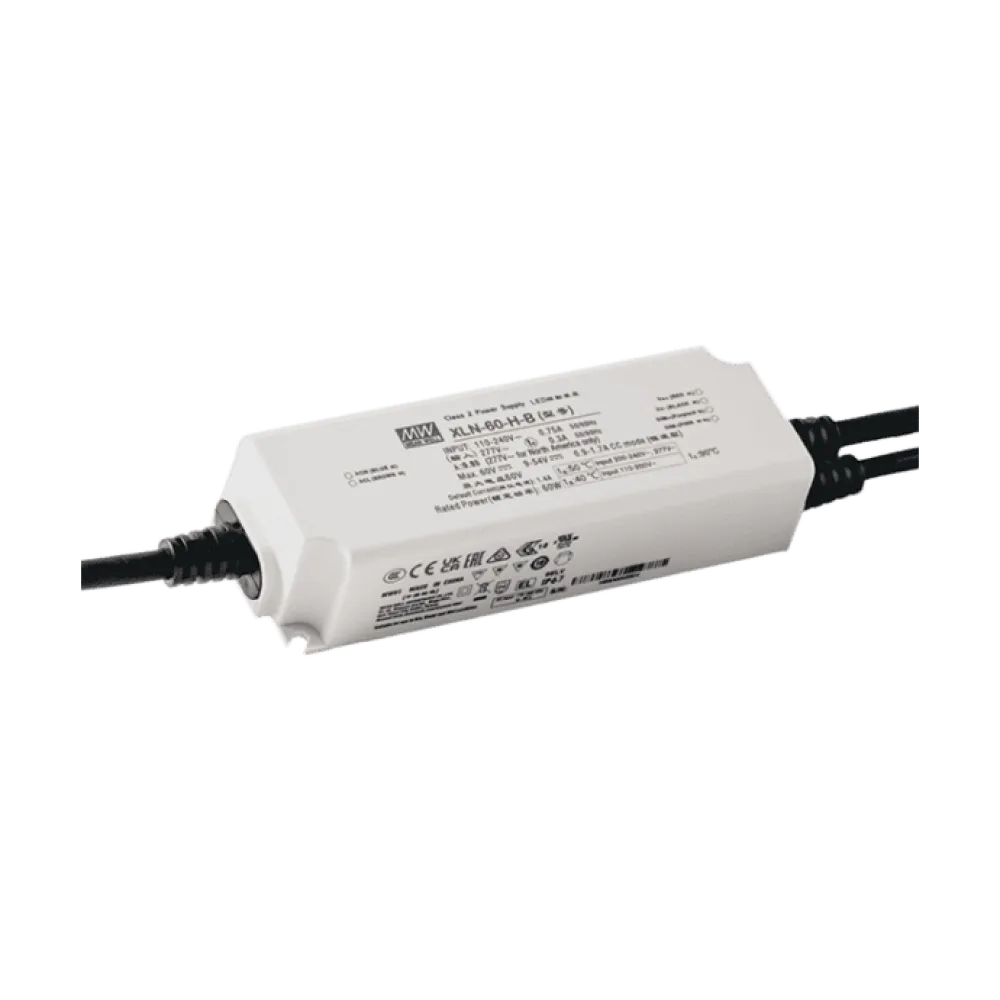

XLN-60-48-B is an LED driver in an IP67 plastic housing for 48Vdc LED applications with 3in1 dimming function.
Control
- 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
- Resistor (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% duty cycle=100% Iout, 10% duty cycle=10% Iout, 0% duty cycle=Off)
Dimming range
The dimming range is 6% to 100% (load-independent dimming via PWM)
PWM frequency 4kHz
Technical data
- Fully moulded plastic housing with IP67 protection
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Product specifications
| Power | 60 W |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Product series | XLN |
| Input voltage range (VAC) | 110-305 V |
| Additional functions | EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 49 mm |
| Length | 141 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | Resistor, 0-10V, 1-10V, PWM control signal |
| Channels | 1 |
| Efficiency | 88.00% |
