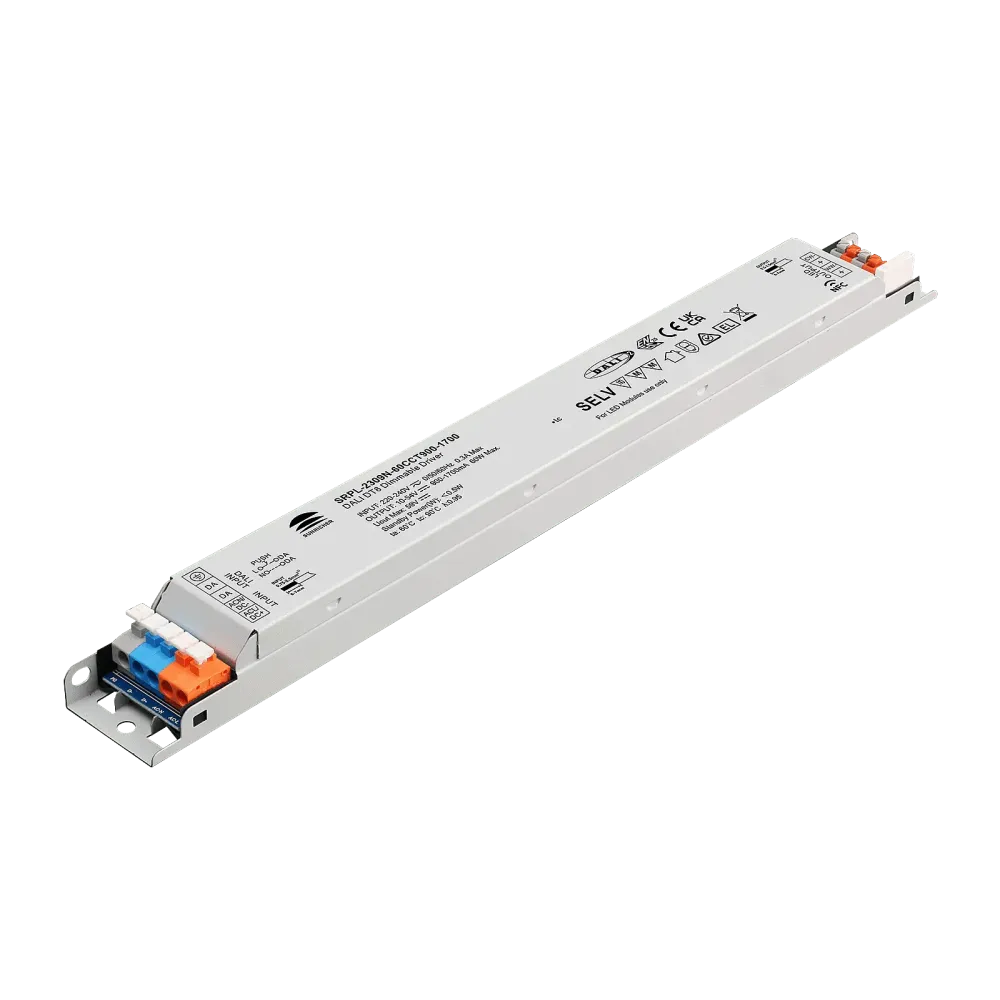

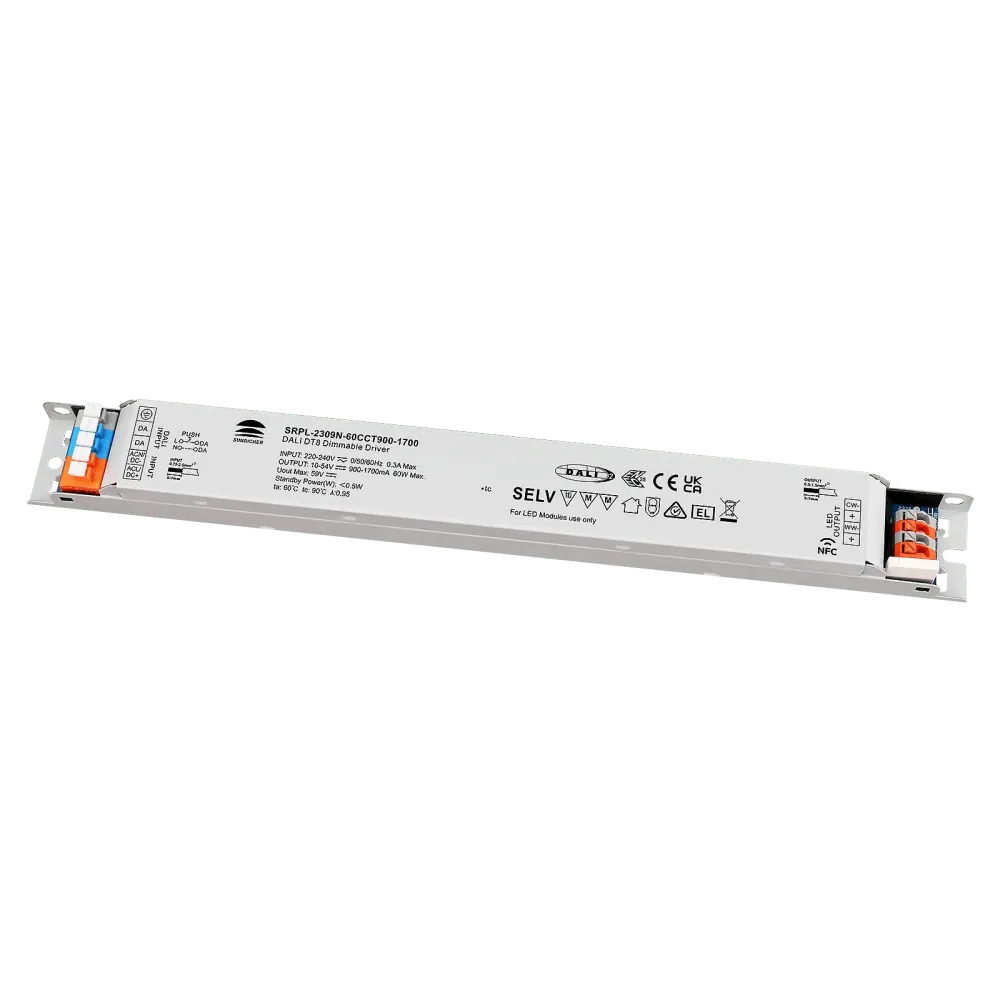

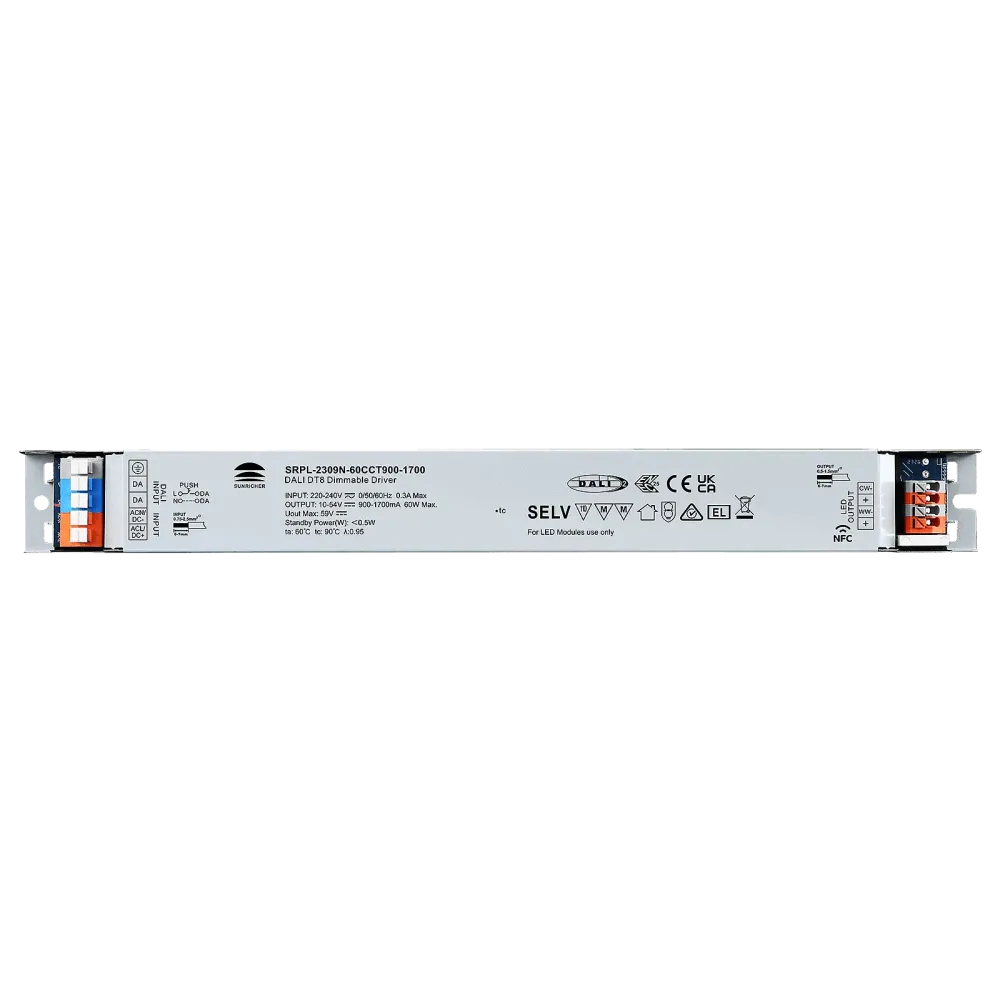

60W DALI2 DT8, AC-PUSH, Tunable white, Linear constant current LED driver, NFC

SRPL-2309N-60CCT900-1700 is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI2 DT8. The output current can be set between 900 and 1700mA via NFC.

In a slim linear 30 x 21mm aluminum housing, ideal for profiles and linear luminaires.

Control

• DALI2 DT8, AC-PUSH

Application

• Tunable white

Current setting

• NFC

Dimming range

The load-dependent dimming range is 0.1% to 100%

Dimming method: Amplitudes/CCR

Technical data

• DT8 dimmable 2-channel Tunable white power supply unit
• 2 channel 900~1700mA constant current output, selectable via NFC program tool, default 1500mA
• In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver. Max. output power 60W
• Output voltage range: 10-54VDC
• Class 2 power supply unit
• High power factor and efficiency
• For switching and dimming Tunable White LED lighting fixtures
• Amplitude dimming, smooth and deep dimming down to 0.01%
• Compatible with universal DALI masters that support DT8 commands
• Protection class IP20
• 5 year guarantee
• Dimensions: 280 x 30 x 21mm
