600W medical Power Supply 36Vdc/16.7A

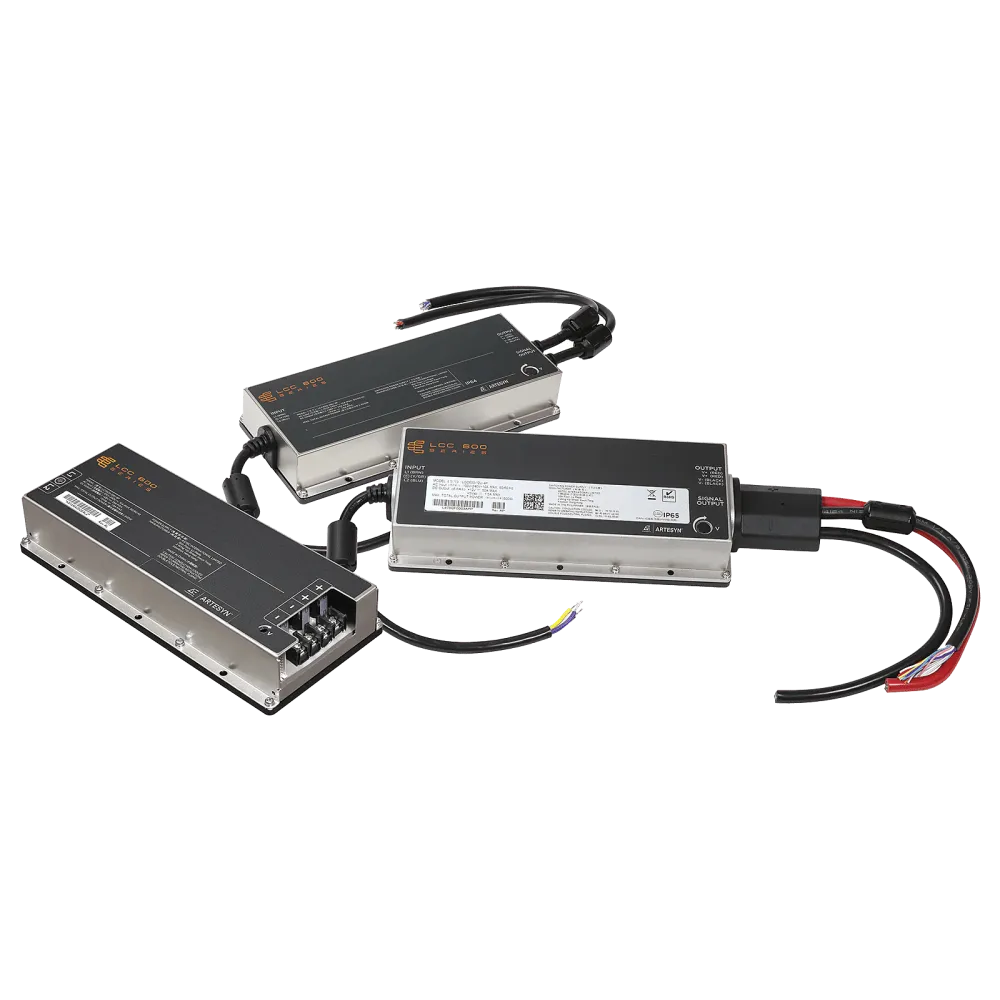

Advanced Energy’s Artesyn LCC600 series of fully enclosed conduction cooled AC/DC power supplies comprises 4 models, offering main output voltages of 12V, 28V, 36V or 48Vdc. Each model also provides a 5Vdc standby output which can supply up to 1.5A. Rated at 600Watt, these Power Supplies incorporate a thermal baseplate and are capable of delivering full output power over a wide operating temperature range of -40°…+85°C. For maximum applications flexibility, the main output is adjustable. The 48Vdc model for example, can be adjusted from 44V…54Vdc and has a maximum current rating of 12.5A.

Technical data

• 600Watt full power at elevated temperatures
• Wide operating temperature range -40°C…+85°C with baseplate
• Output Adjustable
• Remote On/Off
• AC OK and DC OK signals
• 5Vdc standby
• Active current share
• Conduction cooled/fanless
• I2C / PMBus
• Medical and ITE Safety Ed.3
• Suited for BF Applications
• Active power factor correction
• Option IP65
• Option Input 277Vac
• Warranty 2 Years
• Manufacturer Artesyn
