500W Power Supply 24V/20.9A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

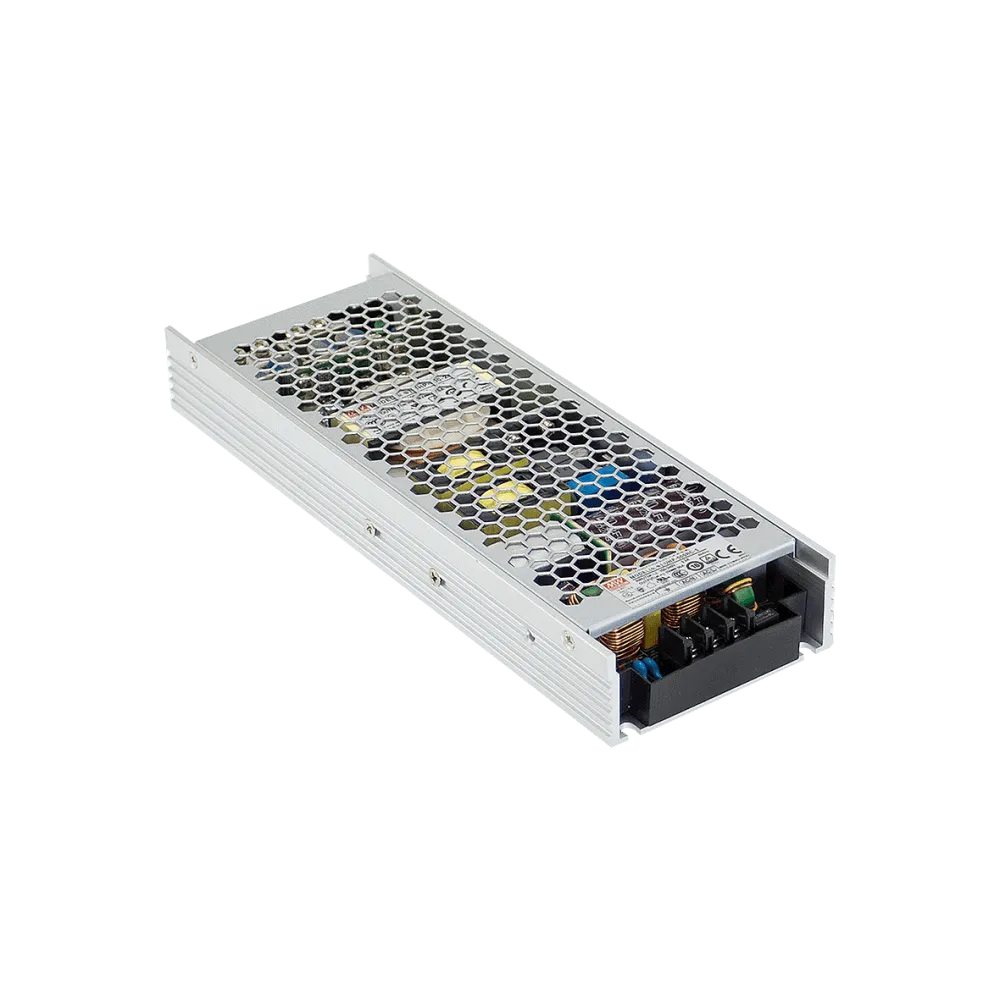

UHP-500-24 is a single-output slim type power supply with 31mm of low profile design. UHP-500 has the complete protection functions and 5G anti-vibration capability;It is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL62368-1 and GB4943. UHP-500 series serves as a high performance power supply solution for various industrial applications.

Technical data

Universal AC input 90 to 264Vac
Built-in active PFC function
Fanless design with conduction cooling
Slim and Low profile (31mm)
Working temperature range -30°C to +70°C
Withstand 300Vac surge input for 5 sec.
Operating altitude up to 5000 meter
Dimension 232 x 81 x 31mm (L x W x H)

Product specifications

Output voltage (VDC)	24 V
Manufacturer warranty	3 years
Manufacturer	MEAN WELL
Application	Household, ITE/AV
Voltage setting range	22.8-25.2 VDC
Height	31 mm
Width	81 mm
Length	232 mm
Protection class	Class I
Input voltage range (VAC)	90-264 V
Power	501 W
Efficiency	94.00%
