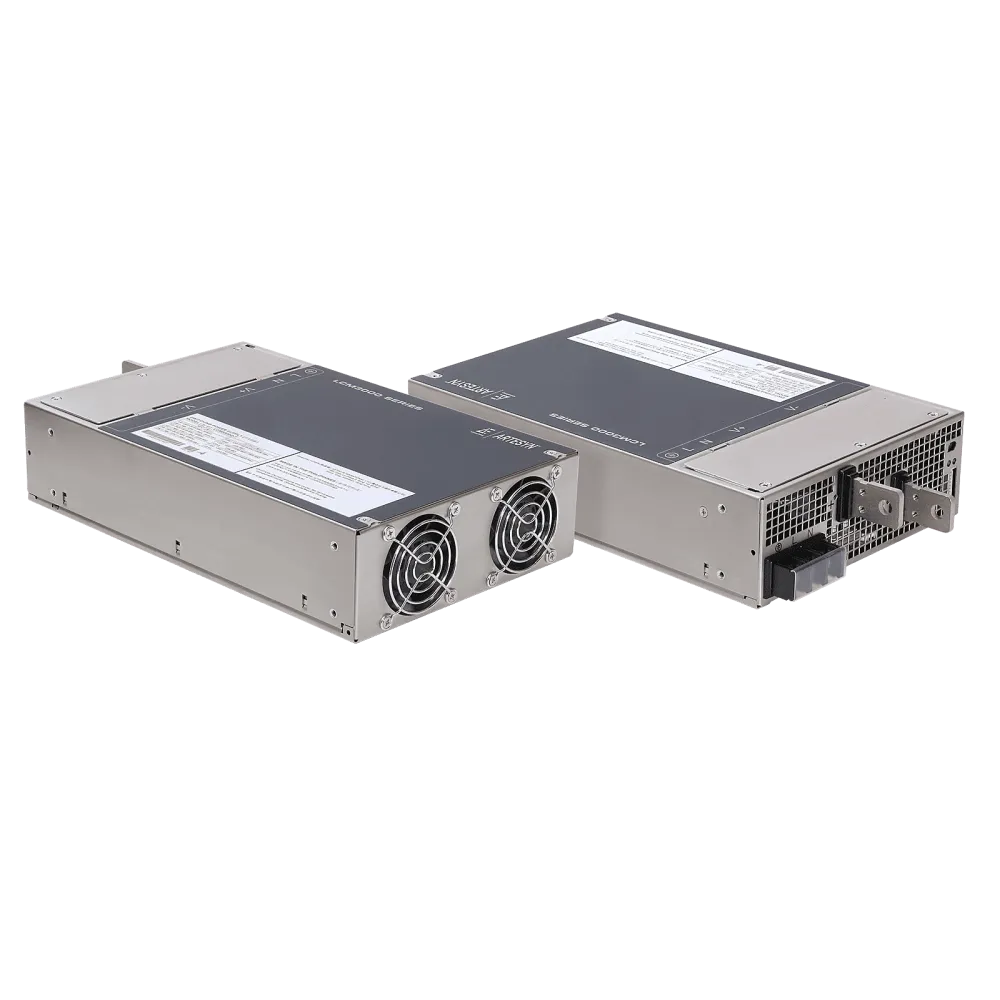

3000W medical Power Supply 36Vdc/83.3A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

Advanced Energy’s Artesyn LCM-Family 300/600/1000/1500/3000Watt provide for a very wide range of AC/DC embedded power requirement. Offering no Power Derating over the entire Input range 85…264Vac, nominal outputs of 12V, 15V, 24V, 36V or 48Vdc (LCM3000: additionally 18Vdc and 72Vdc) and adjustable voltage of wide ranges from 10.8…52.8Vdc .

Technical data

3000Watt output power
Dimensions 282.6 x 177.8 x 63.5mm
Industrial/Medical safety
No low line derating
Operating Temperature -40°C…+70°C with derating
5Vdc @2A standby
Efficiency 90%
Variable speed "Smart Fans"
I2C / PMBus
DSP controlled
Option conformal coat
Output Voltage adjustment range ±25%
V-Programming from 20%…125%
VAR configurable to any voltage from a single unit
Warranty 5 Years
Manufacturer Artesyn

Product specifications

Output voltage (VDC)	36 V
Manufacturer warranty	5 years
Manufacturer	Artesyn
Control signals	Programmable output voltage, Remote ON/OFF, Remote sense
Status signals	AC OK signal, DC OK signal
Additional functions	5V DC auxiliary output, Parallel connectable, PMBus
Application	ITE/AV, Medical
Voltage setting range	7.2-36.0 VDC
Height	63.5 mm
Width	177.8 mm
Length	282.6 mm
Protection class	Class I
Input voltage range (VAC)	90-264 V
Power	3000 W
Efficiency	90.00%
