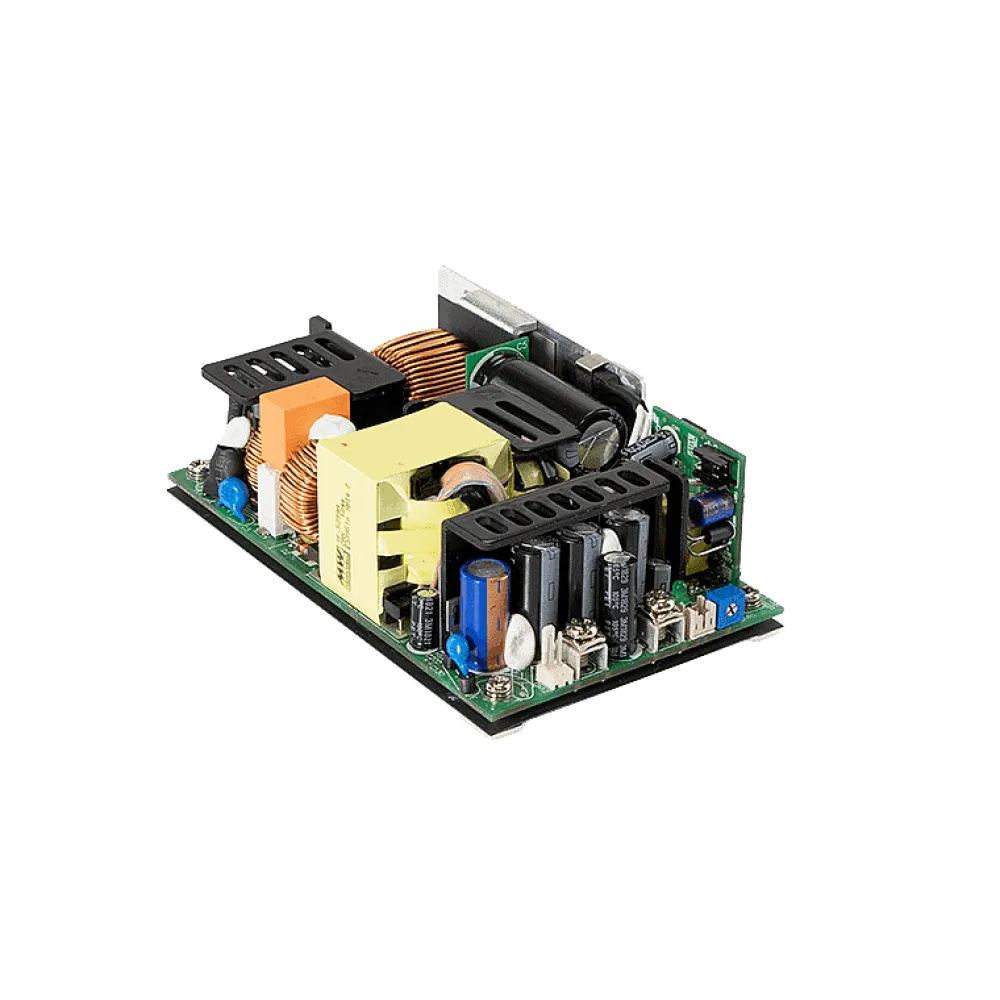

500W Medical Open Frame Power Supply 24V/20.8A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

RPS-500 Series 500W High-Power Miniaturized 5"x3" Medical Grade Open Frame Power Supply

5x 3 high-power miniaturized design
2xMOPP isolation level, ultra-low leakage current 190μA, suitable for use in BF type medical applications
Full range 80~264VAC input with built-in PFC function
320W with cooling by free air convection and 500W with 25CFM forced air, 550W peak load (3 seconds)
Suitable for installation in Class I (with FG) or Class II (no FG) systems
No load power consumption 0.5W
High efficiency up to 94%
-30~+70℃ wide operating temperature range
Operating altitude up to 4000 meters
Protections: short circuit/overload/over voltage/over temperature
Additional functions: 5Vsb and 12Vdc/0.5A auxiliary power, voltage compensation, P.G. and P.F. signals
UL/cUL/TUV/EAC/CB/CE medical safety approved
LED indicator for power on
Dimensions (LxWxH): 127×76.2x40mm

Output voltage (VDC)	24 V
Product series	RPS
Manufacturer	MEAN WELL
Manufacturer warranty	3 years
Additional functions	5V DC auxiliary output, 12V DC auxiliary output, Peak Power
Status signals	Power good signal
Control signals	Remote ON/OFF, Remote sense
Height	40 mm
Width	76.2 mm
Length	127 mm
Protection class	Class I, Class II
Standard size	3 x 5 inches
Application	Medical
Power	500 W
Efficiency	93.00%
