About the product

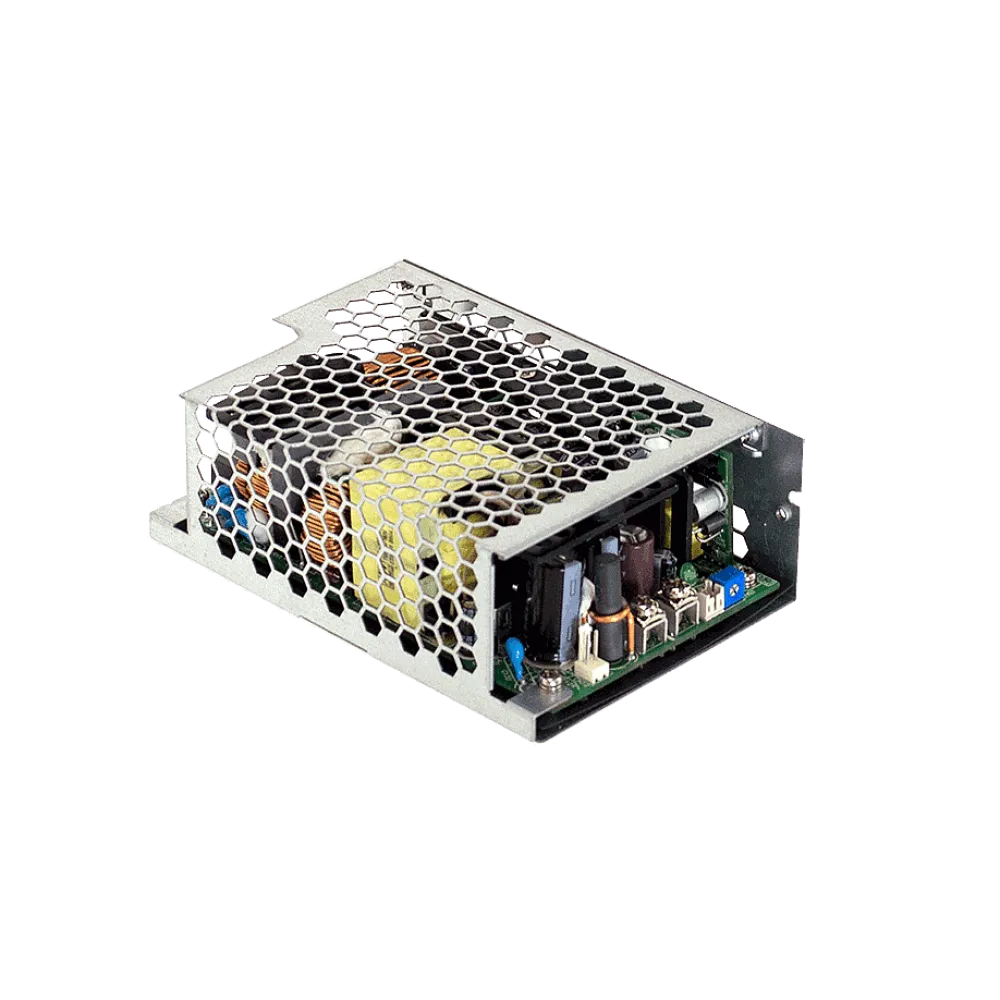

Mean Well RPS-400-C is a 400W highly reliable green medical power supply with a high power density. The power supply provides 250W without 25CFM forced air. Enclosed version.
Technical data
- Universal AC input 80 to 264Vac
- No load power consumption 0.5W
- Medical safety approved ( 2x MOPP between primary to secondary)
- Suitable for BF application with appropriate system consideration
- Low leakage current 250µA
- 400W with 25CFM forced air
- Standby 5V, 1A with fan, 0.6A without fan
- Built-in 12V, 0.5A fan supply
- Remote ON / OFF, Remote Sense
- Dimension 130 x 86.6 x 43mm (L x W x H)
- 3 Years Warranty
- Manufacturer: Mean Well
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF, Remote sense |
| Status signals | DC OK signal |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Application | Household, Medical |
| Voltage setting range | 11.4-12.6 VDC |
| Height | 43 mm |
| Width | 86 mm |
| Length | 130 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 80-264 V |
| Power | 250 W |
| Efficiency | 91.00% |
Data sheets
