About the product

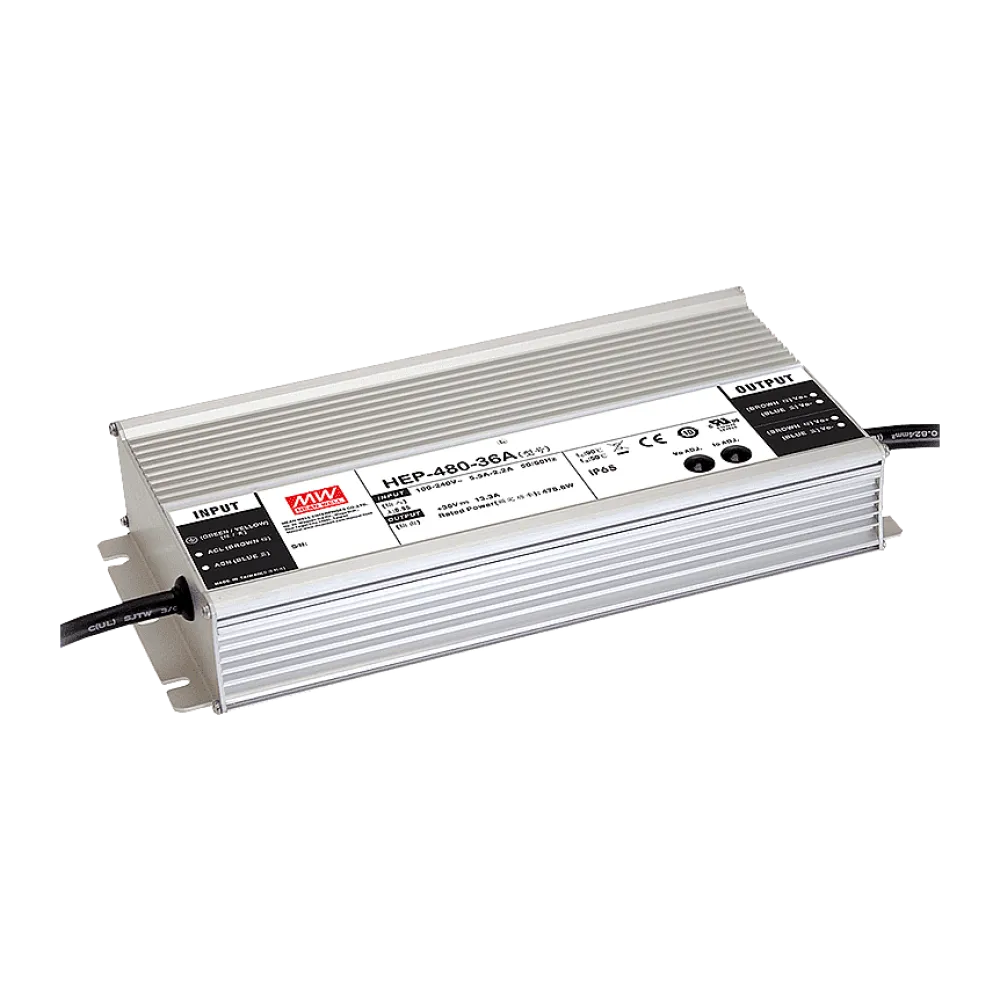

480W Enclosed Power Supply 36V/13.3A
Technical data
- Universal AC input 90 to 305Vac
- Built-in active PFC function
- Output voltage and constant current level can be adjusted through internal potentiometer
- IP65 for indoor and outdoor installations
- Operating altitude up to 5000 meters
- High reliable Driver with long lifetime
- Fully encapsulated Metal housing
- Suitable to use in a harsh environment with high dust density, humidity, vibration and altitude
- Working temperature range -55°C to +65°C
- Meet 6kV surge immunity level (IEC61000-4-5)
- Withstand 10G vibration test
- Dimension 262 x 125 x 43.8mm (L x W x H)
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer warranty | 6 years |
| Manufacturer | MEAN WELL |
| IP protection | IP65 |
| Application | ITE/AV |
| Voltage setting range | 30.6-37.8 VDC |
| Height | 43.8 mm |
| Width | 125 mm |
| Length | 262 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 478 W |
| Efficiency | 95.00% |
