About the product

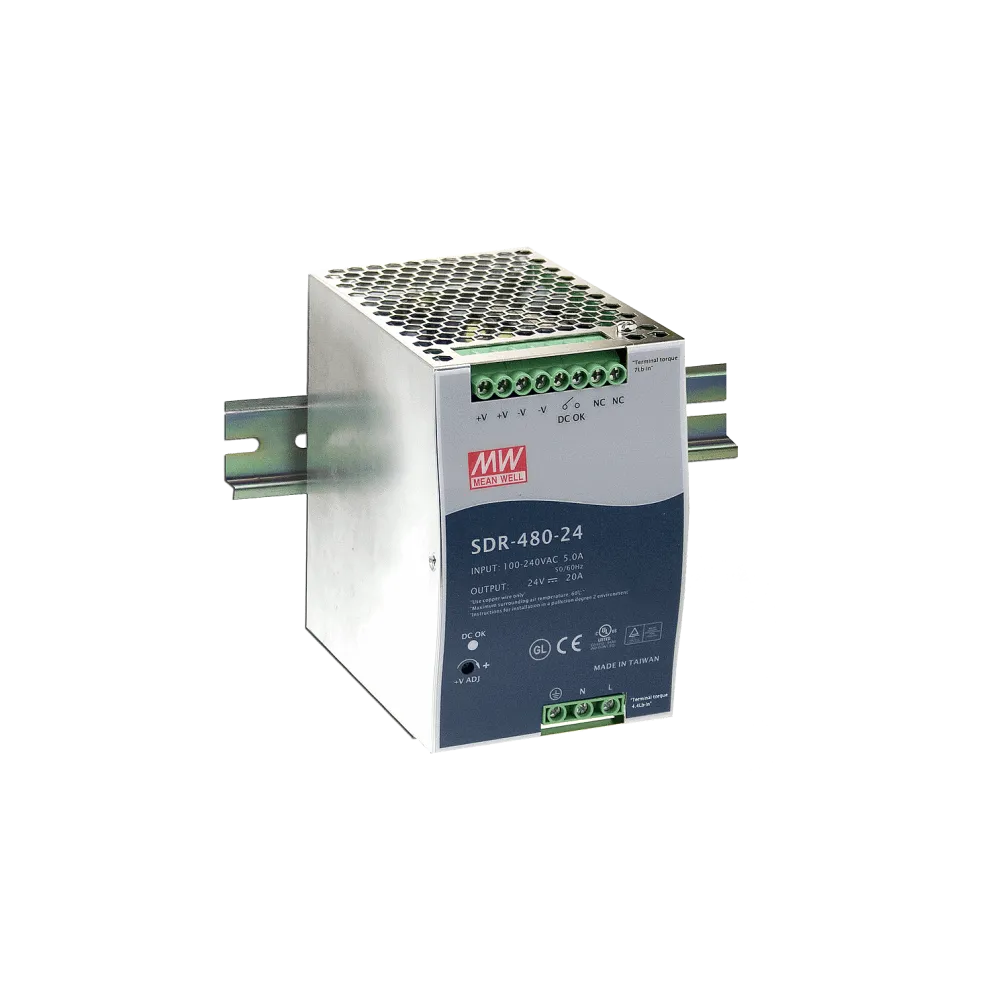

480W DIN Rail Power Supply 24V/20A
Technical data
- Universal AC input 90-264Vac
- Built-in active PFC function
- Can be installed on DIN Rail TS-35/7.5/15
- 150% peak load capability
- Operating temperature -25°C to +70°C
- LED Indication for DC OK
- DC OK relay contact
- Dimension 85.5 x 125.2 x 128.2mm (W x H x D)
- 3 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Product series | SDR |
| Status signals | DC OK relay contact |
| Overload characteristics | Constant current limiting |
| Certificates | EN62368-1 / ITE, UL508 |
| Depth | 128.5 mm |
| Height | 125.2 mm |
| Width | 85 mm |
| Input voltage range (VAC) | 85-264 V |
| Output current | 20 A |
| Power | 480 W |
| Efficiency | 94.00% |
