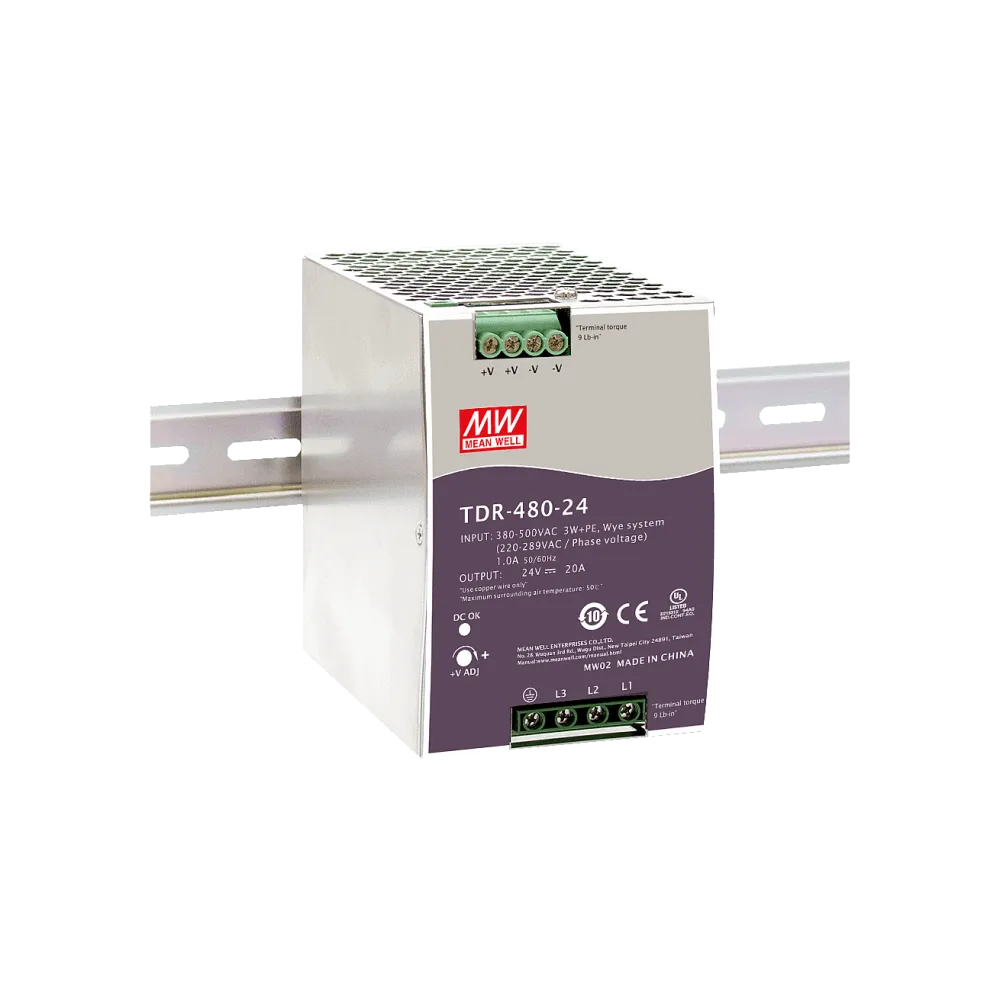

480W DIN Rail Power Supply 24V/20A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

TDR-480 is one economical slim 480W DIN rail power supply series. the body is designed 85.5mm in with, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 340Vac to 550Vac (Dual Phase operation possible). The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC/UL62368-1 approved) make TDR-480 a very competitive power supply solution for industrial applications.

Technical data

3 Phase wide range input 340 to 550Vac (2 Phase operation possible)
Can be installed on DIN Rail TS-35/7.5/15
High efficiency 93%
LED Indication for DC OK
Dimension 85.5 x 125.2 x 128.5mm (W x H x D)
3 years warranty
Manufacturerr: MEAN WELL

Product specifications

Output voltage (VDC)	24 V
Manufacturer	MEAN WELL
Manufacturer warranty	3 years
Product series	TDR
Overload characteristics	Constant current limiting
Certificates	IEC62368-1 / ITE, UL508, UL62368-1 / ITE
Depth	128.5 mm
Height	125.2 mm
Width	85.5 mm
Input voltage range (VAC)	340-550 V
Output current	20 A
Power	480 W
Efficiency	92.00%
