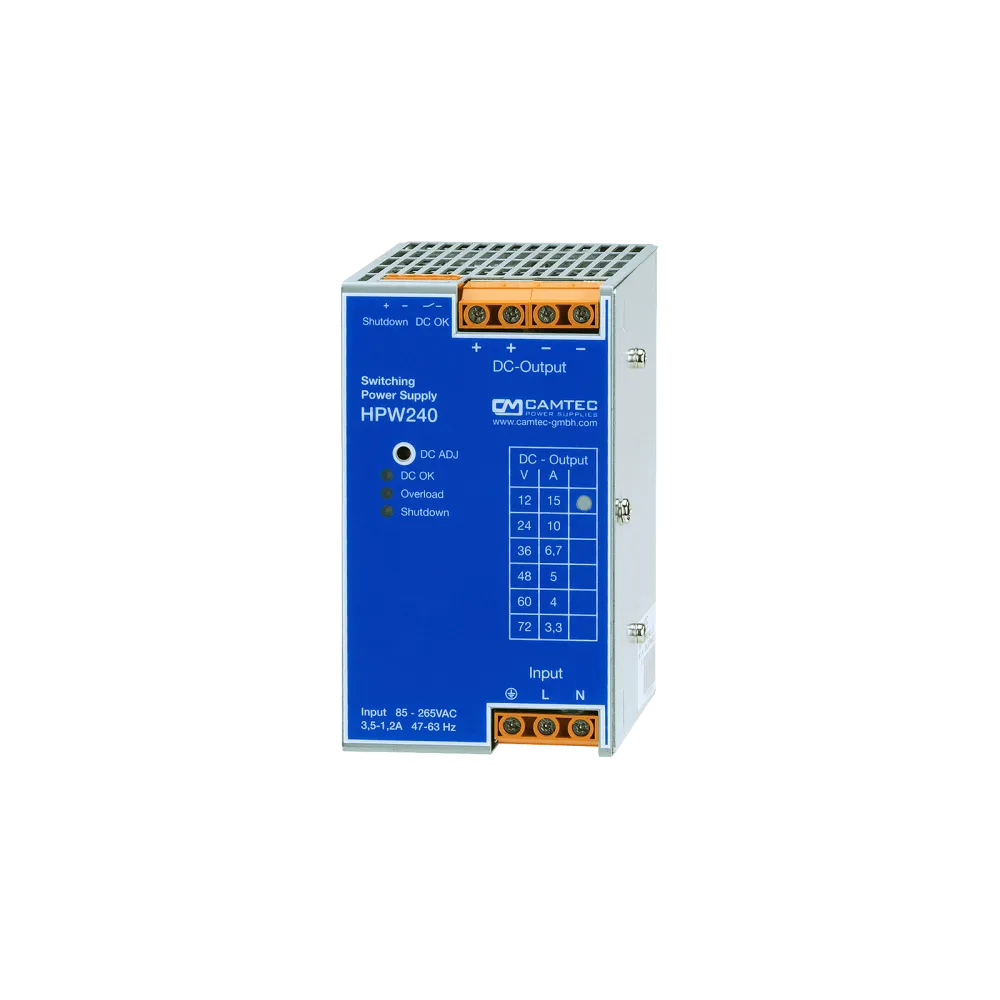

About the product
The HPW02401 DIN Rail power supply series is designed for worldwide electronics applications like machine building, railway, military and factory automation.
Technical data
- Universal AC input 85 to 264Vac
- Active inrush current limiter (<7A)
- Soft start and auto recovery
- Remote ON/OFF for Shutdown
- Can be installed on DIN Rail TS-35
- Springterminal 0.5 to 12mm2
- Efficiency 91.5%
- Protection: zero load, short circuit, over- and undervoltage
- Operating temperature -20° to +60°C at full load
- Typical U/I-characteristic for complex loads like DC-Motors
- Dimension 130 x 75 x 115mm (H x W x D)
- High reliable, shock- and vibration resistant
- Output Electrolytic Capacitors Ultra Long lifetime 125°C
- 5 years warranty
- Made in Germany
- Manufacturer Camtec
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Camtec |
| Manufacturer warranty | 5 years |
| Product series | HPW |
| Status signals | AC OK relay contact, DC OK relay contact |
| Control signals | Remote ON/OFF |
| Overload characteristics | Constant current limiting |
| Additional functions | Parallel connectable |
| Depth | 115 mm |
| Height | 130 mm |
| Width | 75 mm |
| Input voltage range (VAC) | 85-264 V |
| Output current | 10 mA |
| Power | 240 W |
| Efficiency | 91.00% |
